Product details

About this part

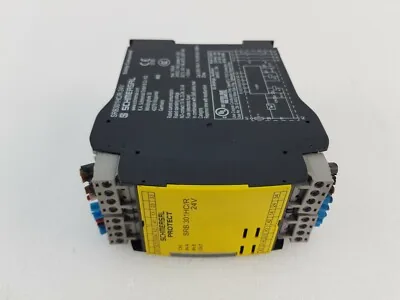

The SCHMERSAL PROTECT SRB 301HC/R 24V, SRB301HC/R-24V is made by SCHMERSAL and identified by manufacturer part number SRB301HC/R-24V.

This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.

Condition

This item is listed as Used. Previously used. See condition notes and photos.

The photos are part of the description — check them for labels, connectors, markings and any visible wear.

What's included

1 × SCHMERSAL PROTECT SRB 301HC/R 24V, SRB301HC/R-24V.

Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.

Identification & compatibility

Check the manufacturer (SCHMERSAL), the part number (SRB301HC/R-24V) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.

Price match

Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.

Important information

Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.

Brand
SCHMERSAL
Part number
SRB301HC/R-24V
Model
SRB301HC/R-24V
Country of Origin
Germany
Operating voltage
24 V DC / AC (terminals A1 / A2)
Voltage tolerance
AC 20.4–26.4 V; DC 20.4–28.8 V
Housing width
45 mm
Mounting
Snaps onto standard DIN rail to EN 60715
Stop category
0
Maximum safety rating (Schmersal)
PL e, Category 4, SIL 3
Safety contact max switching
250 V / 8 A (min. 10 V / 10 mA)
Drop-out time
20 ms on emergency stop; 80 ms on power failure (typical)
Schmersal article number
101190594 (discontinued)
Rated current consumption
max. 140 mA
Safety contacts
3 NO: 13-14, 23-24, 33-34
Safety contact rating
DC13: 24 V / 6 A; AC15: 230 V / 6 A
Auxiliary contact
41-42 (UL rating 24 V DC / 2 A)
UL ratings, main output
230 V AC / 6 A, 24 V DC / 6 A, B300, R300
Supply fuse
Electronic, > 500 mA
Safety level with SMS safety mat
Cat. 3 EN 1760-1, PL d EN ISO 13849-1
Response time with reset function
20 ms
Input / control terminals
S13, S14, S23, S24, X2, X3
LED indicators
ON, IN A, IN B, OUT
Wiring (UL)
Copper conductors 60/75 °C, 28–12 AWG, tightening torque 5 lb·in
Approvals
CE 0035, CCC, cULus listed Ind. Cont. Eq.

The Schmersal SRB301HC/R-24V (PROTECT SRB 301HC/R 24V) is a safety relay module made by K.A. Schmersal GmbH & Co. KG in Wuppertal, Germany. Its side label gives a 24 V DC / AC operating voltage on terminals A1/A2, three normally open safety contacts (13-14, 23-24, 33-34) rated DC13 24 V / 6 A and AC15 230 V / 6 A, and an auxiliary contact 41-42. The module is marked "Safety Component" and carries CE (0035), CCC and cULus marks. Buyers also search it as SRB 301HC/R, SRB301HCR or SRB-301HC/R-24V.

What is the SRB 301HC/R used for?

Schmersal lists the SRB301HC/R-24V for monitoring emergency-stop buttons, guard systems, pull-wire emergency stop switches, safety mats and two-hand control panels. It provides stop category 0, and Schmersal rates it up to PL e, Category 4 and SIL 3; it is a 45 mm wide housing that snaps onto a standard DIN rail. Schmersal now marks it as a discontinued product (article number 101190594).

What safety level does it reach with a safety mat?

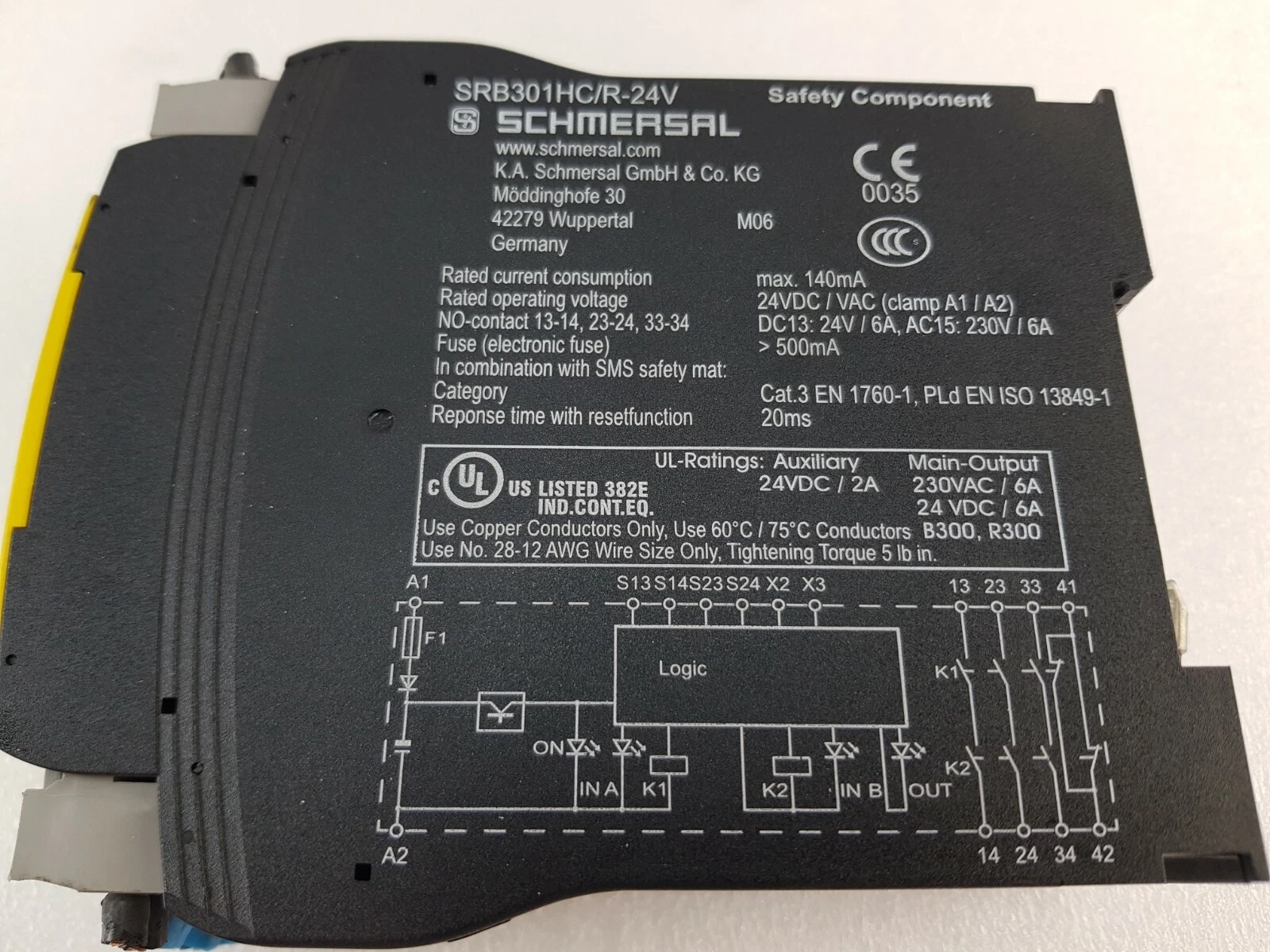

The label states that in combination with a Schmersal SMS safety mat the module reaches Category 3 to EN 1760-1 and PL d to EN ISO 13849-1, with a response time of 20 ms with the reset function. The input circuits are wired to S13/S14 and S23/S24, with X2 and X3 as further control terminals.

What indicators and terminals does it have?

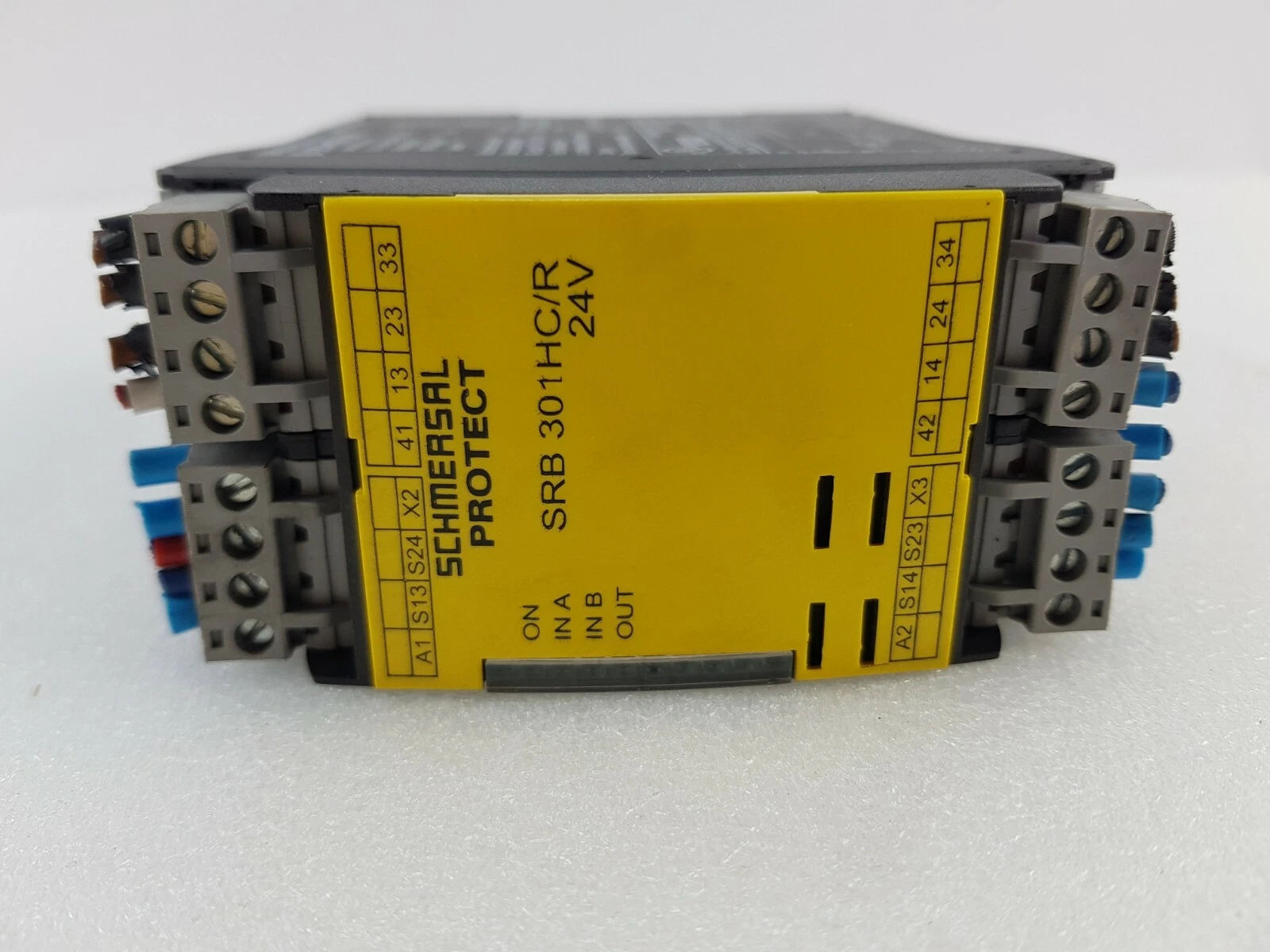

Four LEDs on the yellow front are labelled ON, IN A, IN B and OUT. The circuit diagram on the side shows two internal relays, K1 and K2, both acting on each safety output, and an electronic supply fuse (F1), rated > 500 mA on the label. Connections are made through grey screw-terminal blocks at both ends of the housing.

What condition is this module in?

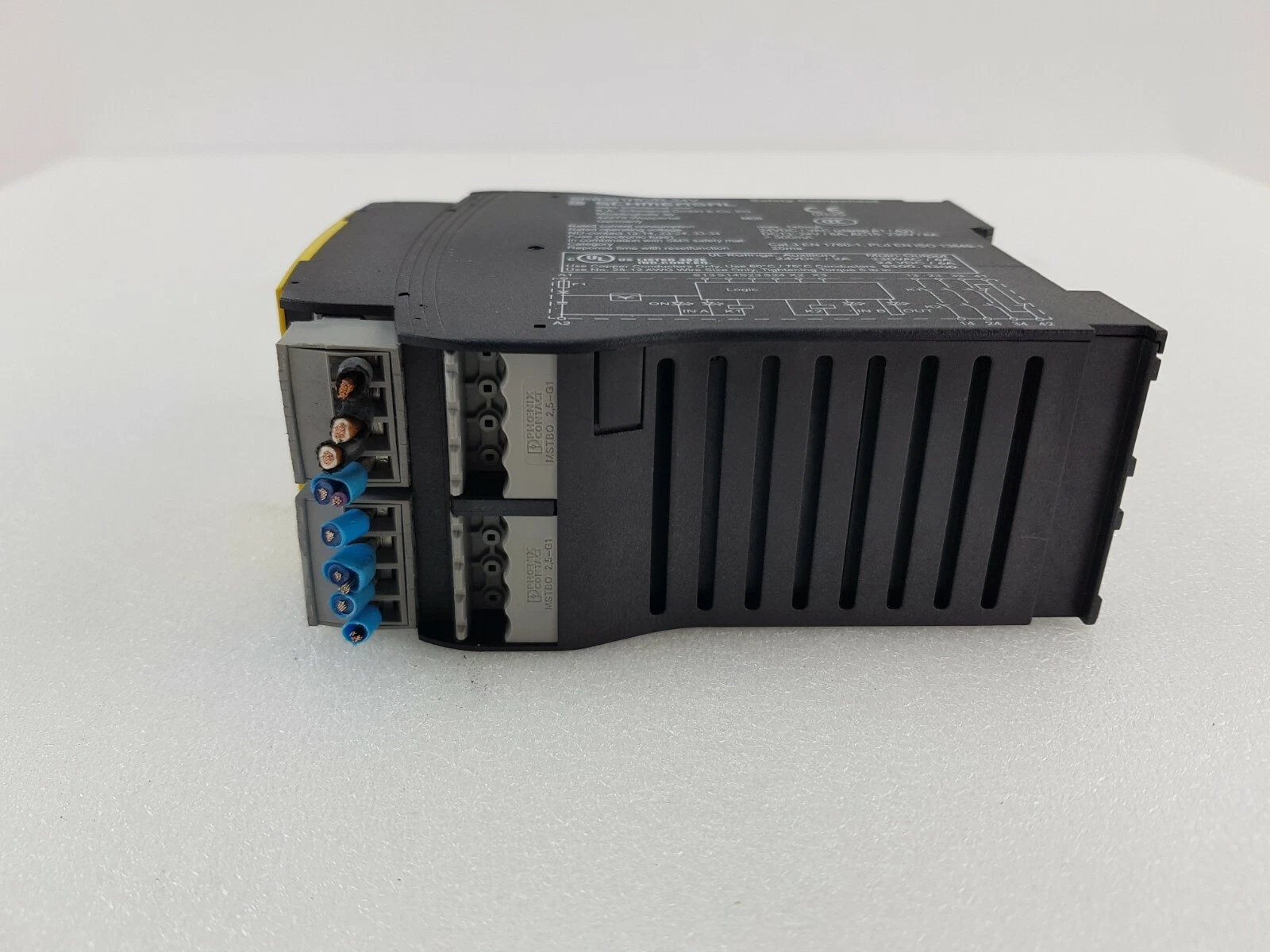

Used. The photos show an intact yellow front cover with clear print, a readable side label and all terminal blocks in place.

Ships from
Israel
Tracking
Included on every order

Import duties and taxes may apply in your country and are paid by the buyer on delivery.

Returns
Accepted within 60 days of delivery
Return shipping
Free — paid by us
Refund
Money back

Return terms differ from item to item — this item's own policy is shown above.

Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.

Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.

Read the full returns & warranty policy

Questions about this part

What supply voltage does the SRB301HC/R-24V need?

24 V, AC or DC, on terminals A1 and A2, with a maximum current consumption of 140 mA per the module label.

How many safety outputs does it have?

Three normally open safety contacts (13-14, 23-24, 33-34), each rated DC13 24 V / 6 A and AC15 230 V / 6 A, plus auxiliary contact 41-42.

What is it used with?

The label lists its safety rating in combination with a Schmersal SMS safety mat: Category 3 to EN 1760-1 and PL d to EN ISO 13849-1.

What is the response time?

20 ms with the reset function, as stated on the label; Schmersal gives a typical drop-out of 20 ms on emergency stop and 80 ms on power failure.

How wide is it and how is it mounted?

The housing is 45 mm wide and snaps onto a standard DIN rail to EN 60715.

Is the SRB301HC/R-24V still made?

Schmersal lists it as a discontinued product under article number 101190594.
