Photos show the actual item you will receive.
Product details
About this part
The Rexroth Hydraulics Valve 4WS2EM10-45/5B3ET315K8AM-10, Model A018 is made by Rexroth and identified by manufacturer part number 4WS2EM10-45/5B3ET315K8AM-10.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Rexroth Hydraulics Valve 4WS2EM10-45/5B3ET315K8AM-10, Model A018.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Rexroth), the part number (4WS2EM10-45/5B3ET315K8AM-10) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Rexroth
- Part number
- 4WS2EM10-45/5B3ET315K8AM-10
- Model
- 4WS2EM10-45/5B3ET315K8AM-10
- Valve type
- 2-stage, 4-way servo directional valve, flapper/nozzle pilot
- Feedback
- Mechanical (for separate electronics)
- Size / interface
- Size 10, ISO 4401-5 / NFPA D05, with X1 port
- Series
- 45 (4X)
- Nominal flow
- 5 L/min (1.3 GPM) at 70 bar valve pressure drop
- Coil
- No. 3: 7.5 mA / 200 Ω per coil
- Pilot oil
- Internal supply, internal drain (ET)
- Operating pressure
- 10 to 315 bar (145 to 4600 PSI)
- Electrical connection

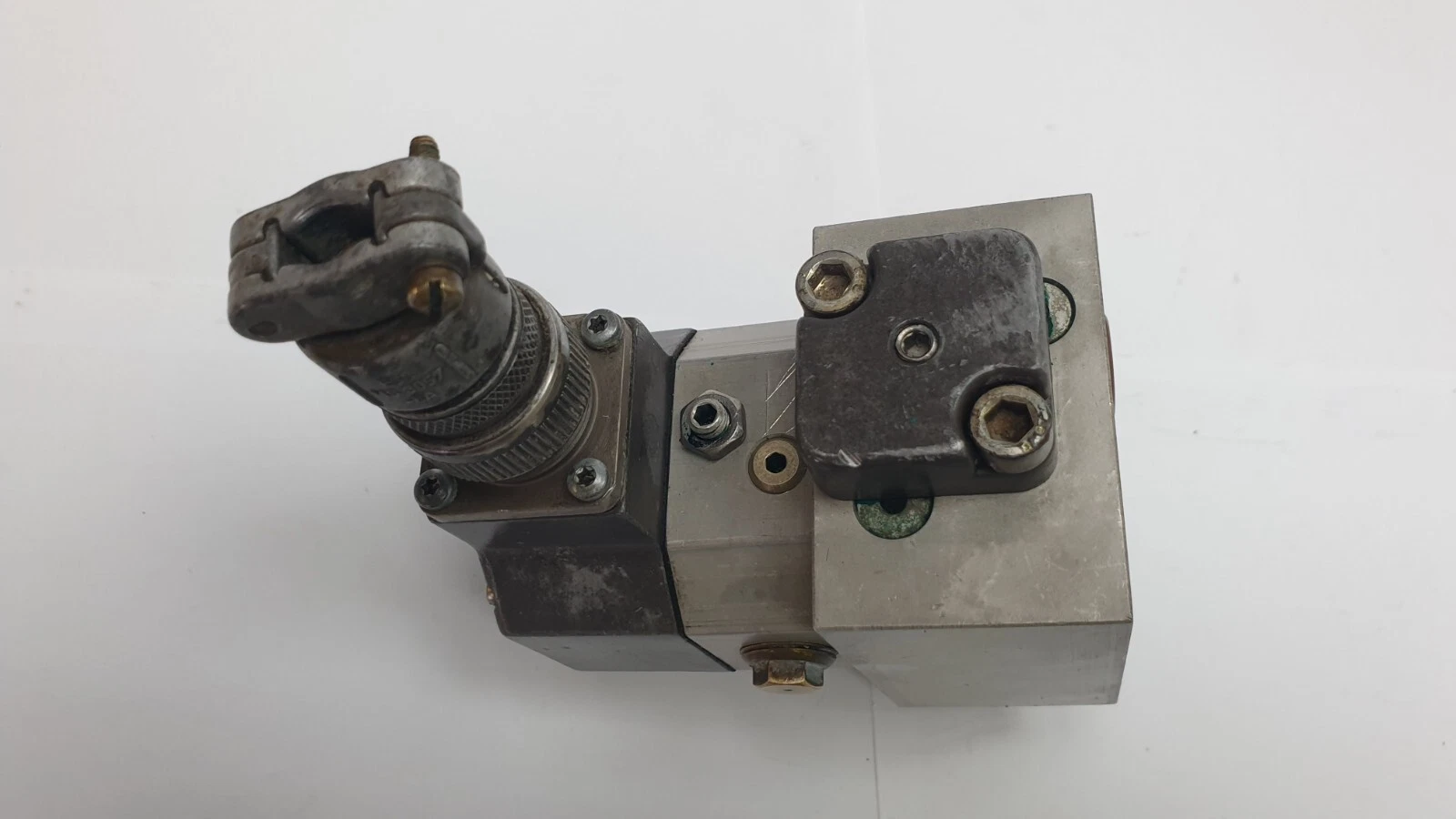

- K8: socket size 14S-2S
- Spool overlap
- A: 0.5 to 1.5% positive
- Seals
- M: NBR, for mineral oil (HM, HL, HLP)
- Weight (data sheet)
- approx. 1.1 kg (2.42 lb)
- Nameplate markings
- A018, 0001690, 43161125
The Rexroth 4WS2EM10-45/5B3ET315K8AM-10 is a two-stage, 4-way electro-hydraulic servo valve, size 10, with mechanical feedback, for closed-loop control of position, force and velocity. It is a Rexroth Hydraulics 4WS2EM 10 series 4X valve. The nameplate reads 4WS2EM10-45/5B3ET315K8AM-10, A018, 0001690, 43161125. The model is often searched as 4WS2EM10, 4WS2EM10-45 or Rexroth 4WS2EM.
How does this servo valve work?

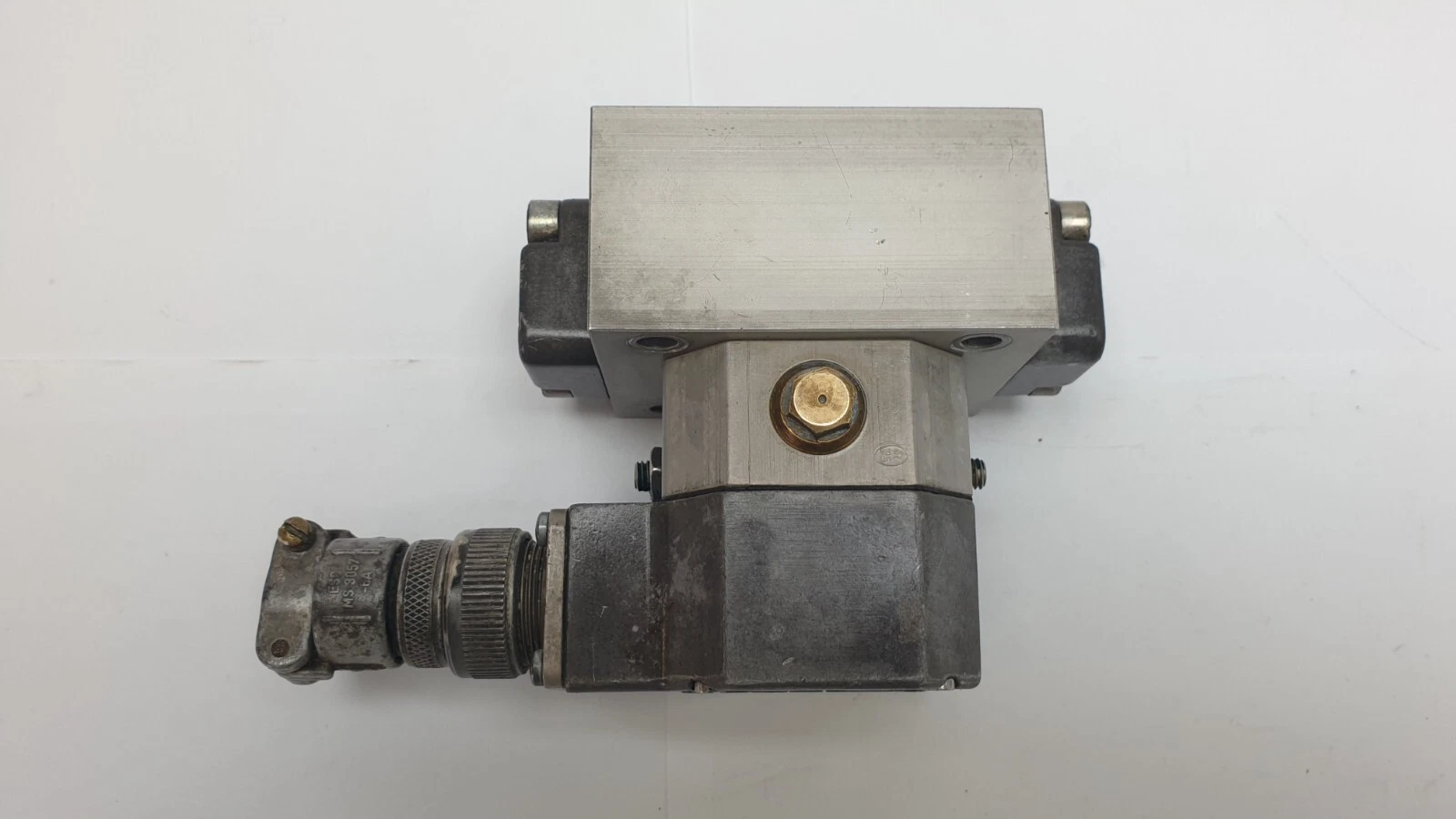

The first stage is a flapper/nozzle pilot driven by a dry torque motor. A current in the torque motor tilts the flapper between two nozzles, and the pressure difference this creates shifts the second-stage control spool. A mechanical feedback spring links the spool back to the torque motor, so the spool stroke is proportional to the input current from the servo amplifier.
What does the ordering code mean?
Decoded with the Rexroth data sheet RA 29 586 for series 4X: 4WS2E = 2-stage servo valve for separate electronics, M = mechanical feedback, 10 = size 10, 45 = series 45 (4X), 5 = 5 L/min (1.3 GPM) nominal flow at 70 bar valve pressure drop, 3 = coil no. 3 (7.5 mA / 200 Ω per coil), ET = internally piloted, internally drained, 315 = pilot pressure range for mechanical feedback, 10 to 315 bar, K8 = electrical socket size 14S-2S, A = spool overlap 0.5 to 1.5% positive, M = NBR seals for mineral oil. The trailing -10 and the A018 marking are not explained in the data sheet.
What does it mount on and what drives it?

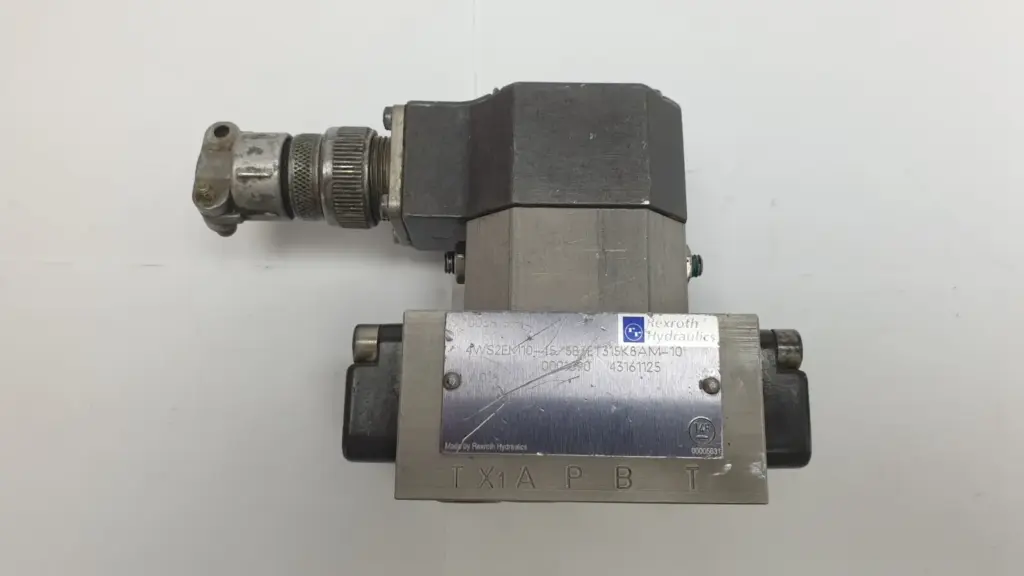

The valve mounts on the standard ISO 4401-5 / NFPA D05 size 10 interface; the port face is engraved T, X1, A, P, B, T. It needs a separate servo amplifier card; for mechanical feedback Rexroth names the SR 2 or VT 1600 amplifier. The photos show a round mating plug with a cable clamp fitted on the socket.
What condition is it in?
Used. The nameplate is scratched but readable, and the port face still has its O-rings fitted.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Rexroth 4WS2EM10-45?
A size 10, two-stage, 4-way servo valve with mechanical feedback from the Rexroth 4WS2EM 10 series 4X, used for closed-loop control of position, force and velocity.
How does a hydraulic servo valve work?
A torque motor moves a flapper between two nozzles. The pressure difference shifts the main spool, and a feedback spring returns the spool position to the torque motor, so spool stroke follows the input current.
What flow does this valve give?
The 5 in the code means 5 L/min (1.3 GPM) nominal flow at a 70 bar pressure drop across the valve, per the Rexroth data sheet.
Which amplifier does it need?
A separate servo amplifier matched to coil no. 3 (7.5 mA / 200 Ω). For mechanical feedback Rexroth lists the SR 2 or VT 1600 amplifier.
Can it be checked with the Rexroth servo valve tester?
Rexroth lists the battery-driven test unit RR00 010 573 for 4WS2 valves with separate electronics and coil numbers 1, 2 and 3, which includes this valve's coil no. 3.
What hydraulic fluid can it run on?
The M in the code means NBR seals, for mineral oils (HM, HL, HLP). Phosphate ester fluids need the V (FPM) seal version.
What condition is it in?
Used, with a scratched but readable nameplate and O-rings in the port face.
