Photos show the actual item you will receive.
Product details
About this part
The Pepperl+Fuchs WE77/Ex-2 230V Switch Amplifier, Part No. 129198, 2-Channel Relay Output, EEx ia Control Circuit is made by Pepperl+Fuchs and identified by manufacturer part number 129198.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Pepperl+Fuchs WE77/Ex-2 230V Switch Amplifier, Part No. 129198, 2-Channel Relay Output, EEx ia Control Circuit.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Pepperl+Fuchs), the part number (129198) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Pepperl+Fuchs
- Part number
- 129198
- Model
- WE77/EX-2
- Country of Origin
- Indonesia
- Manufacturer
- Pepperl+Fuchs
- Channels
- 2, NAMUR (EN 60947-5-6) or mechanical contact inputs
- Supply
- 198-253 V AC, 45-65 Hz, approx. 3.2 VA (front: 230VAC)
- Output
- 1 changeover relay per channel: 253 VAC/2 A/500 VA, 125 VAC/4 A/500 VA, 40 VDC/2 A/80 W
- Field circuit
- approx. 8 V DC / 8 mA; Uo 13.4 V, Io 31 mA, Po 145 mW
- Monitoring
- Lead breakage (LB), configurable by jumpers
- Ex marking (label)
- II (1) G D [EEx ia] IIC, PTB 02 ATEX 2065, CE 0102
- Ambient temperature
- -20 to 60 °C
- Housing
- Type W2, IP20, screw terminals, 60 x 104 x 110 mm, approx. 410 g
- Box date
- 081203

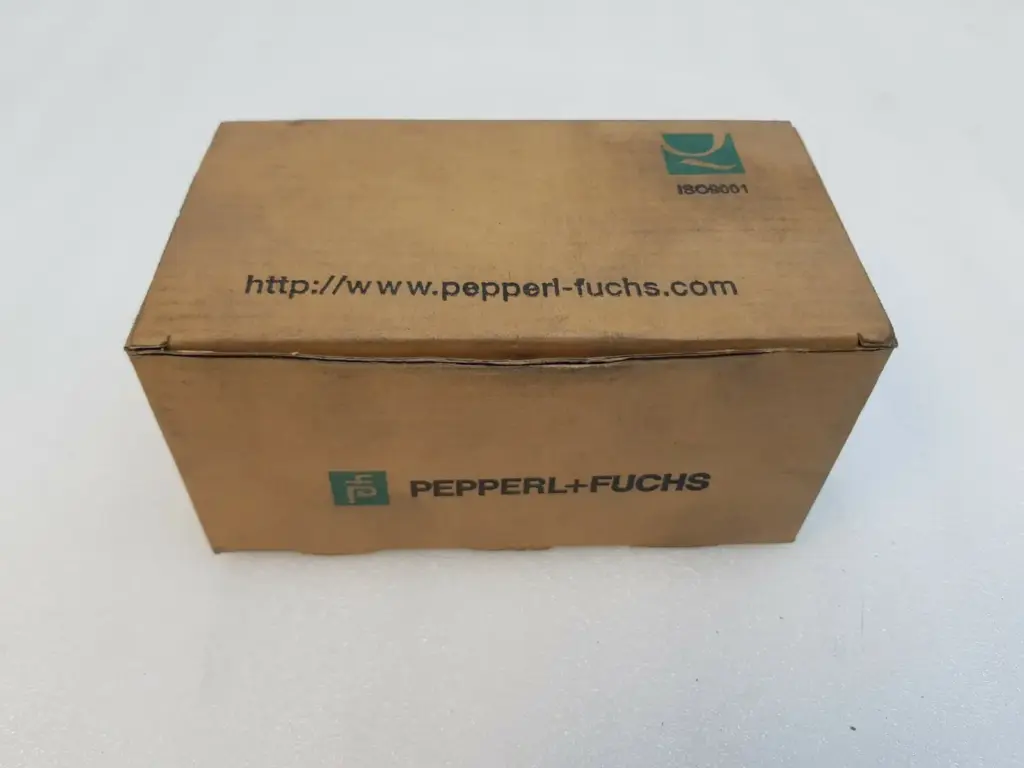

Pepperl+Fuchs WE77/Ex-2 switch amplifier, part no. 129198, new in its original box. Two channels, each with an intrinsically safe control circuit for a NAMUR sensor or a dry contact, and one changeover relay out. Supply is 230 VAC. Also searched as WE77 Ex 2, WE 77/EX-2 230V or Pepperl+Fuchs WE77/Ex-2-230V.
How does a NAMUR switch amplifier work?
The WE77/Ex-2 feeds about 8 V DC into each field circuit and watches the current. A NAMUR sensor switches between low and high current (switching point 1.2 to 2.1 mA), and the amplifier turns that into a relay contact on the safe side. Galvanic isolation sits between input, output and supply, so the field wiring can run into Zone 0, 1 or 2.
Can I use it with lead breakage monitoring?

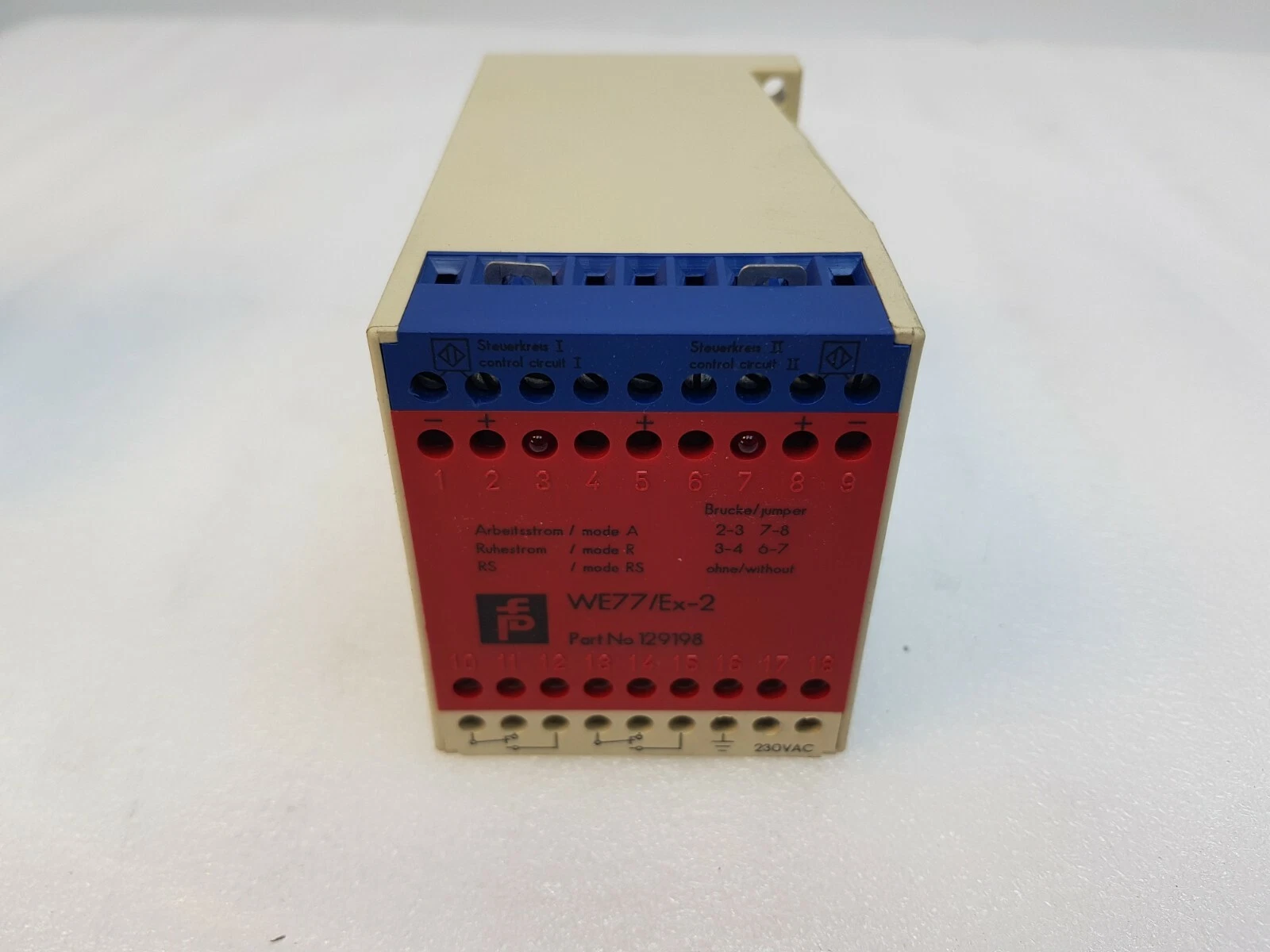

Yes. Without jumpers, and with a 10 kΩ resistor across the contact at the field end, the unit detects a broken lead and drops the relay. Jumpers 3-4 and 6-7, or 2-3 and 7-8, switch off line monitoring and set the relay to energize on the 0 or 1 signal. The terminal guide is printed on the red front plate.
What is on the label?

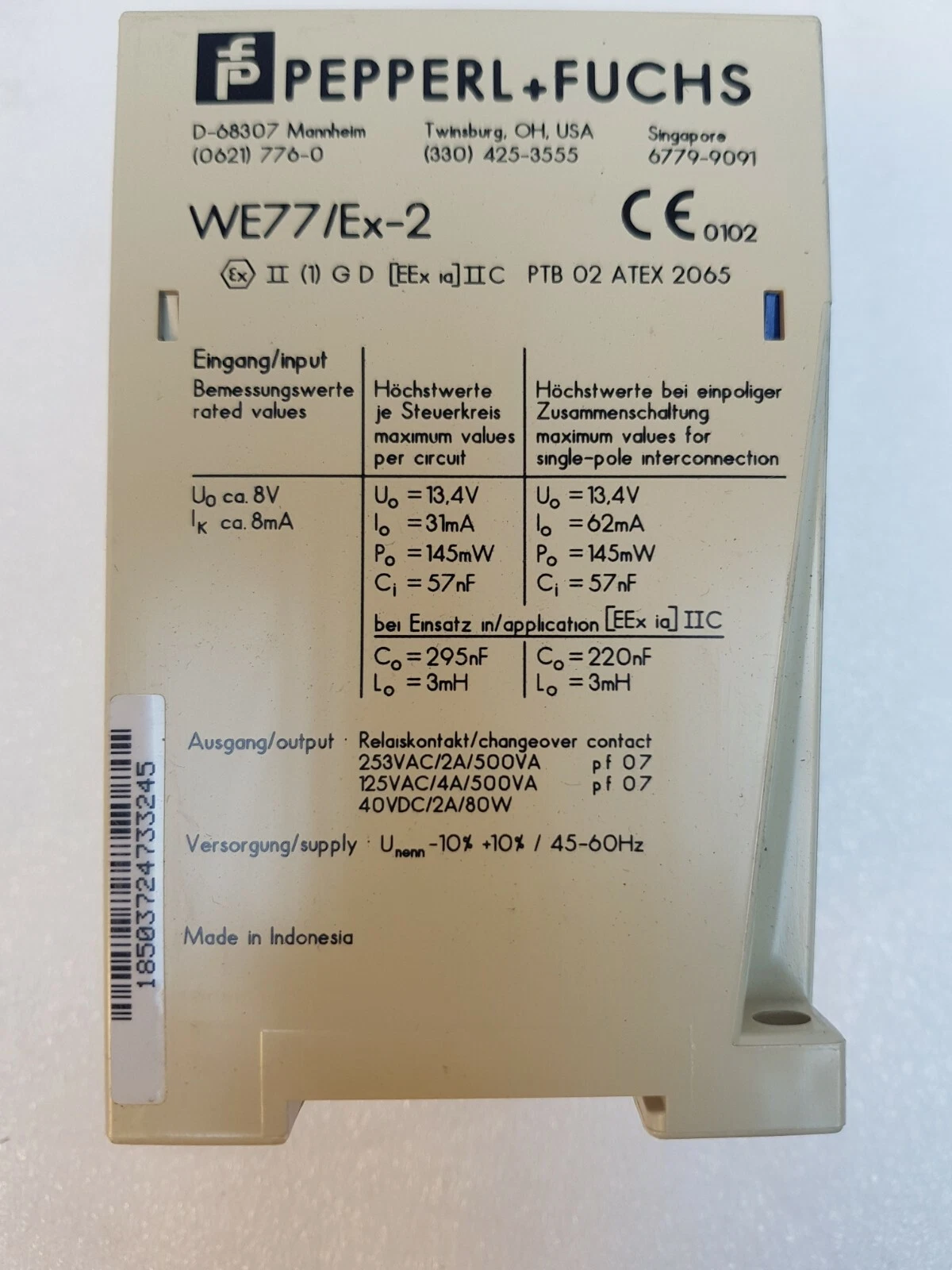

Side label: WE77/Ex-2, CE 0102, II (1) G D [EEx ia] IIC, PTB 02 ATEX 2065, Uo 13.4 V, Io 31 mA, Po 145 mW, made in Indonesia. Outputs rated 253 VAC 2 A 500 VA, 125 VAC 4 A 500 VA, 40 VDC 2 A 80 W. The box label reads P/N 129198, WE 77/EX-2, DATE 081203, made in Indonesia, with handwritten numbers on the box.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What supply voltage does the WE77/Ex-2 129198 need?
230 VAC. Pepperl+Fuchs gives the range as 198 to 253 V AC at 45 to 65 Hz.
Is there a 115 V version?
Yes, the WE77/Ex-2 115V is a separate part number. This unit is the 230 V model, 129198.
Which sensors can I connect?
NAMUR proximity sensors to EN 60947-5-6, or plain mechanical contacts, one per channel.
Can the sensors sit in a hazardous area?
The control circuits are EEx ia IIC under PTB 02 ATEX 2065, for field devices in Zone 0, 1 or 2.
How much can the relay contacts switch?
Up to 253 VAC at 2 A (500 VA), 125 VAC at 4 A, or 40 VDC at 2 A resistive.
Are there status LEDs?
Yes, a red LED per channel on the front shows the relay output.
Over 1,000 positive reviews from our customers
100% positive feedback · 527 ratings in the past 12 months
- Accurate description 5.0 /5
- Communication 5.0 /5
- Shipping speed 5.0 /5
- Shipping cost 4.7 /5
-
Communicate well，nice seller, will come back again for other items.
AGILENT N5380B SMA PROBE HEAD f***0 (40) -
Fast shipping! Good seller! A+++++ Very clean & Perfect working.
Lumenis PenMount PM6202 t***s (229) -
Great seller!
Brooks Automation 234961-0001 Wafer Aligner 24V Module Assembly j***w (720) -
Fast Shipping, Thanks AAAAA++++++++
STRATASYS PC ASY-07025 REV. A KONTRON KTQ67/Flex t***7 (1,144) -
recommend this seller
FLIR Blackfly S BFS-U3-50S5C-C Color Camera w/ Edmund Optics 58000, 8.5mm/F1.3 r***5 (3) -
great seller, fast shipment.
MKS Baratron Pressure Transducer 728A-28375 USED b***m (1,347) -
Fast shipment
Finder Type 22.32 Modular Contactor – Lot of 6 (NEW, 60-Day Warranty) c***s (1,506) -
Item exactly as described. Quick shipping. Excellent eBay seller!
c***s (153) -
Arrived quickly. Well packaged, exactly as described. Powered on and is operating perfectly. Smooth transaction.
b***3 (799) -
Item as advertised. Very fast shipping. Highly recommended seller.
t***1 (592) -
Fast dispatch and packed extremely well, camera and lens was exactly as described.
v***u (697) -
Package was extremely well packaged and arrived in great condition. Item was exactly as described. Great seller and reasonable shipping times. Overall, great transaction.
w***v (540) -
Item as described and prompt shipping.
4***g (90) -
produit conforme, expédition rapide, emballage soigneux, rien à dire. Je recommande fortement!
i***4 (101) -
As-advertised. Good communication. A++++
s***n (558) -
Good Communication, Fast Shipping, Smooth Transaction!
c***s (153) -
Excellent quality ,good condition,as a new
m***6 (2) -
Excellent Product at an Excellent Price. Thank you!
f***y (772) -
Delivery was first-class! Fantastic packaging. Wish all sellers were this great.
b***c (248) -
Excellent seller! Great communication and very helpful with my inquiries. The item was shipped via FedEx and arrived in Taiwan much faster than expected. Highly recommend!
k***8 (1) -
Supersafely packed, blazing fast shipping and exactly as described. Highly recommending and for sure gladly again. Thank you very much!
l***f (1,132) -
Smooth and fast shipping, received items within a week
b***2 (26) -
Fast delivery, good packaging, very friendly and helpful seller. Had to pay UK import duty, but I expected that. Controller is in very good condition considering its age, obviously very well look after. All functions I have tested worked perfectly. Overall very pleased and would happily buy from this seller again. A+++
k***s (822) -
As described, fast delivery, great seller.
t***s (2,051) -
I received the items the same week I ordered it. Extremely well packaged. Items were as described, perfect state. Flawless purchase!
p***0 (4) -
This was packaged perfectly with care. I highly recommend this seller their response was impeccable and professional. The product was as or better than expected. I had no issues with shipping at all as I was worried it may get hung up in customs but did not. As described works perfectly. Again A+ ratings
s***g (279) -
Great product, prompt shipping, great seller, A+++
t***1 (1,259) -
totally satisfied, hope to deal with you once again!
y***8 (2) -
Fast shipping, great communication, excellent seller, thank you!
s***9 (16) -
Highly recommend this seller, gave me same day dispatch, rapid delivery, very well packed and great pricing... could not be better!!
n***6 (394) -
Incredibly fast delivery and so well packed thank you! Exceeding expectations...
n***6 (394) -
Perfect, Thank you so much for accommodating me on the shipping you saved our job!!
d***9 (8) -
Fantastic service, well packed, very fast shipping and items in excellent like new condition! Highly recommend...
n***6 (394) -
Excellent product exactly as described fast shipping
s***x (163) -
Good quality. Fast Shipping. I would buy again from this seller
s***1 (459) -
Great seller! Great contact, fast shipping ! Thank you very much.
r***9 (5) -
shipped fast. packed well. exactly as described. good transaction.
g***l (653) -
Shipped quickly and the device arrived undamaged and fully functional. Used it to power a laser tube with no issues
q***0 (75) -
Item is as described , fast shipping . A++ seller .Thanks
u***e (2,312) -
Great camera and price. Works as expected and in excellent like new condition. Thanks for a great product.
f***p (147) -
The part arrived well packaged and is working well
s***9 (78) -
Perfect condition. Arrived on time. Good quality product.
r***7 (70) -
Good product, recommended. Would buy again!
f***7 (207) -
All good, as described! Well packaged and fast shipping!
e***i (52) -
Excellent seller! The motor was exactly as described. Fast shipping too!
9***9 (241) -
Excellent communication and support by vendor. I would purchase from them again .
t***s (493) -
Item was very well packed and arrived in perfect working conditon.
s***8 (131) -
All good, very positive experience, package arrived in 3 days!
b***r (139) -
Great seller! Item works perfectly! I will buy again!
z***0 (622) -
It was risky purchasing used printheads, but these turned out to be great and a huge savings over the OEM parts.
c***6 (848)
Feedback left by buyers on our eBay store, shown as written. Buyer names are masked by eBay.
More from Relays
Single units, actual photos
-
Schneider 005307

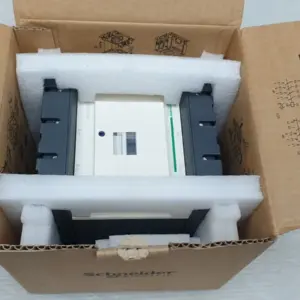

Schneider Electric TeSys D LC1D115004P7 4-Pole Contactor, 200 A AC-1, 230 V AC Coil (TeSys 005307)
