Photos show the actual item you will receive.
Product details
About this part
The NVENT SCHROFF 24563135, BGTR PRO F 3HE 84TE 415T is made by NVENT SCHROFF and identified by manufacturer part number 24563135.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × NVENT SCHROFF 24563135, BGTR PRO F 3HE 84TE 415T.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (NVENT SCHROFF), the part number (24563135) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- NVENT SCHROFF
- Part number
- 24563135
- Model
- 24563135
- Product
- EuropacPRO 19" subrack kit for backplane, retrofit shielding
- Height
- 3 U
- Width
- 84 HP
- Depth
- 415 mm
- Side panels
- Type F (flexible)
- Horizontal rails
- 2 × front L-KD (light); 2 × rear L-ST for backplane mounting, with insulation strip
- Other items in the kit
- 2 × stainless-steel 19" support bracket for EMC sealing, 4 × M2.5 threaded inserts (pre-assembled), assembly kit, user manual
- Material
- Aluminum
- Protection
- IP 20 (IEC 60529)
- Dimensions standard
- IEC 60297-3-100, -101; IEEE 1101.1
- Delivery form
- Flat-pack
- Side panel part (photo)
- 34560193, Seitenwand F 3HE 415T

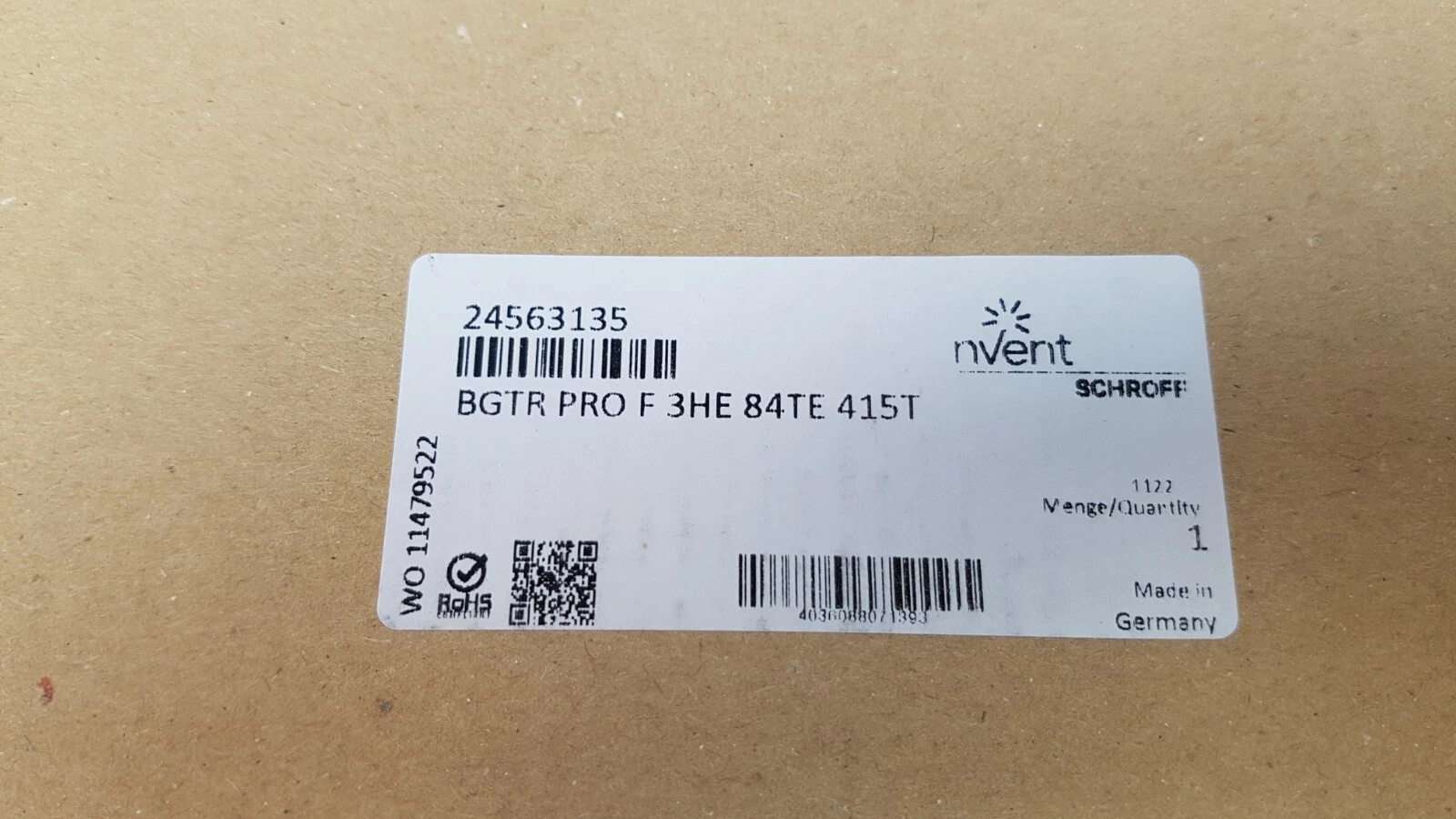

The nVent Schroff 24563-135 is a single EuropacPRO 19-inch subrack kit for backplane mounting, 3 U high, 84 HP wide and 415 mm deep. nVent lists it as a non-shielded aluminum subrack prepared for retrofit shielding, supplied flat-packed for assembly. Its box label reads "BGTR PRO F 3HE 84TE 415T". The part number is also written 24563135.
What parts can I see in this box?

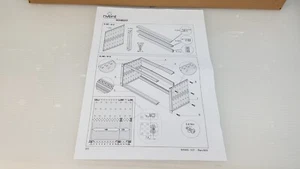

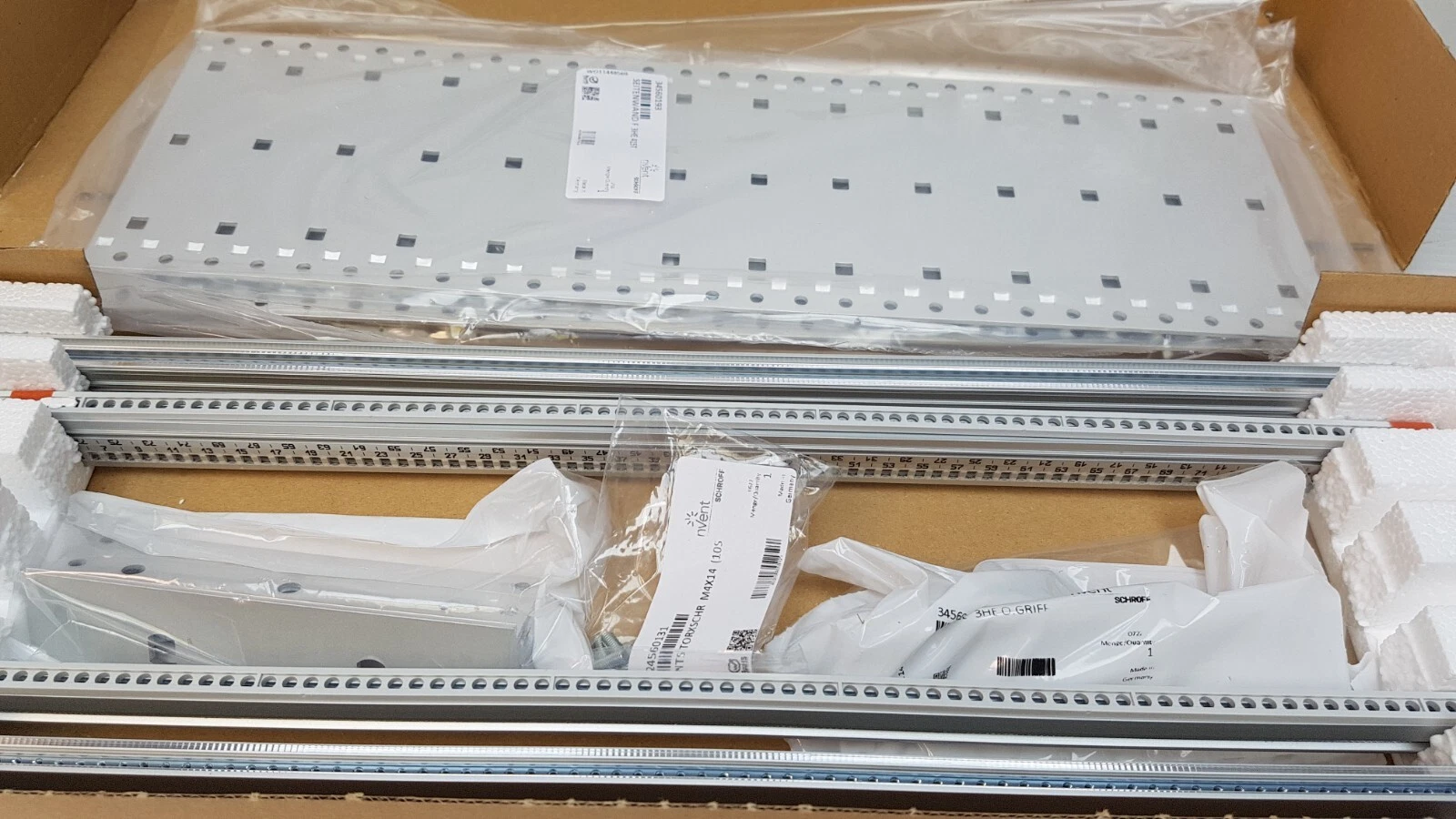

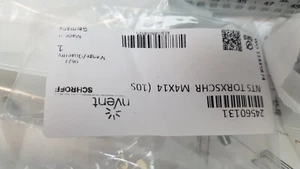

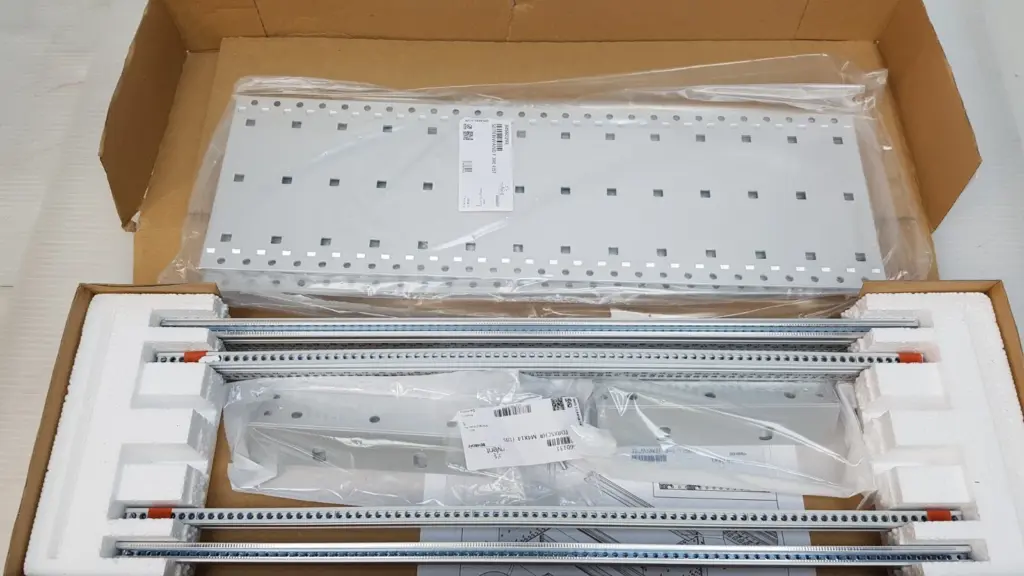

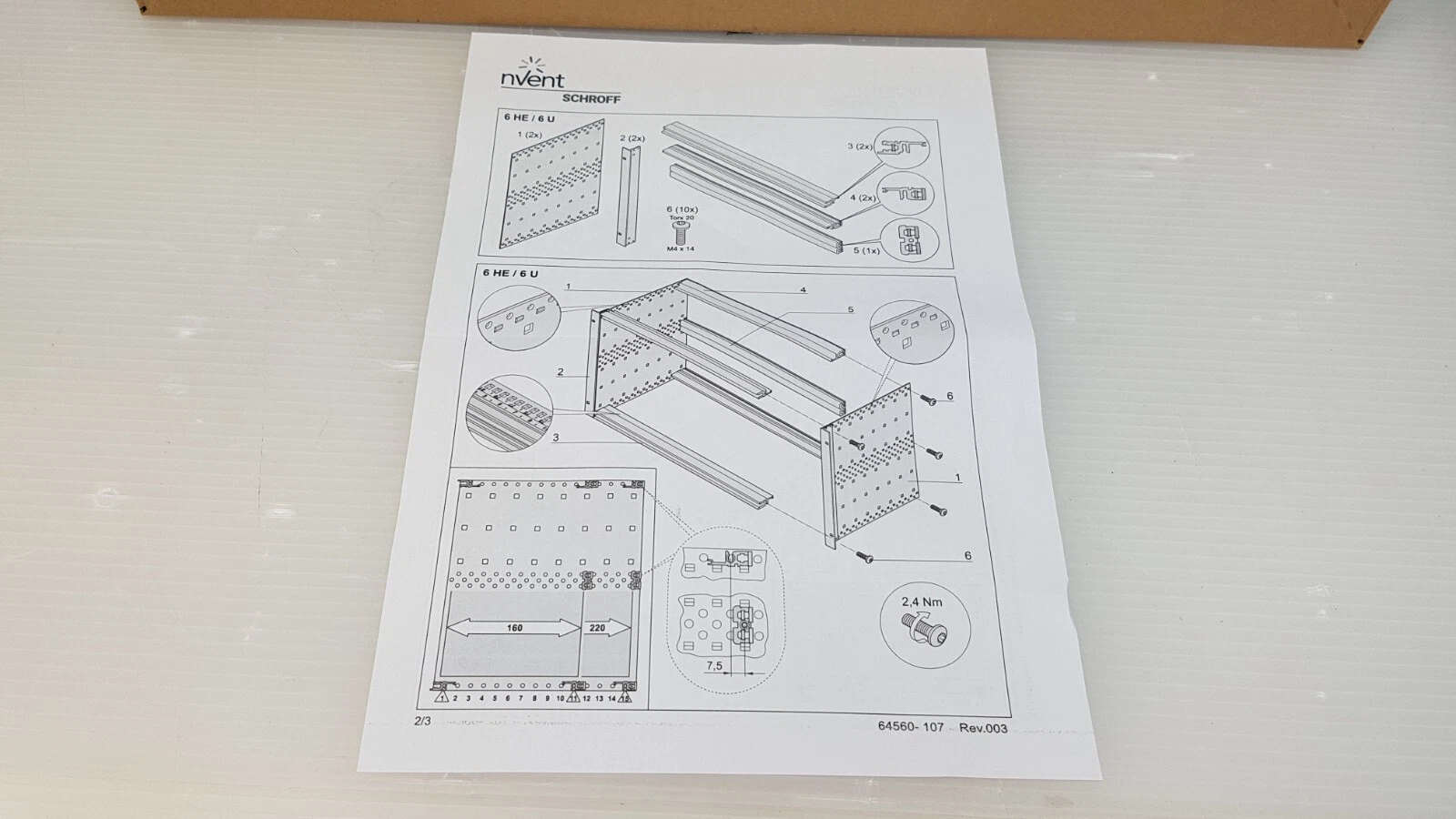

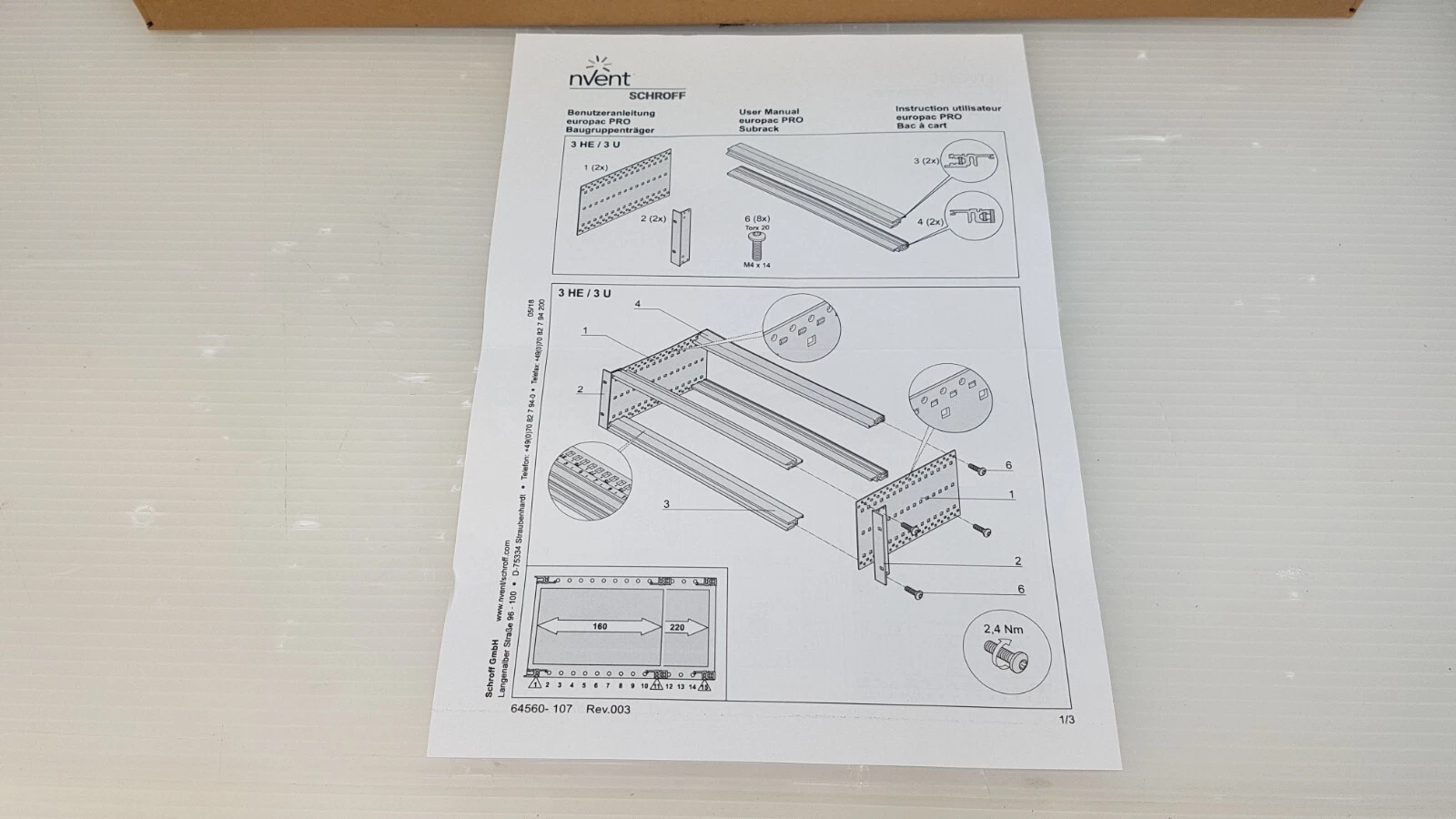

The box is shown opened. The photos show the two side panels, labelled 34560193 "SEITENWAND F 3HE 415T" (type F side panel, 3 U, 415 mm), the horizontal rails held in foam, a bag of M4 × 14 Torx screws labelled 24560131, and Schroff's EuropacPRO user manual (document 64560-107).
What does nVent include in the 24563-135?
nVent's delivery list: two type F side panels, two L-KD front horizontal rails, two L-ST rear rails for backplane mounting with insulation strips, four M2.5 threaded inserts pre-assembled in the rails, two stainless-steel 19-inch support brackets for EMC sealing, an assembly kit and the user manual.
Which standards does the EuropacPRO follow?
nVent states that internal and external dimensions follow IEC 60297-3-100 and -101 and IEEE 1101.1, the mechanical standards for 19-inch subracks and plug-in boards. The subrack is rated IP 20 to IEC 60529.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the nVent Schroff 24563-135?
A EuropacPRO 19" subrack kit for backplane mounting with type F side panels: 3 U, 84 HP, 415 mm deep, unshielded with retrofit shielding option.
Is the kit assembled?
No. nVent supplies it as a flat-pack, and the photos show the parts in the opened box with the user manual.
Can I add EMC shielding later?
nVent lists this kit under retrofit shielding: it ships unshielded and can be shielded later with Schroff's shielding parts.
What is the side panel part number?

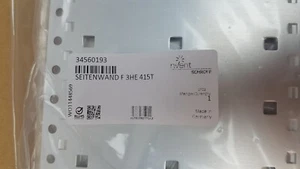

The side panels in the photos are labelled 34560193, "SEITENWAND F 3HE 415T".
