Product details
About this part
The Mitutoyo 543-551-1 ABSOLUTE ID-F125 LOT OF 2 is made by Mitutoyo and identified by manufacturer part number 543-551-1.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Mitutoyo 543-551-1 ABSOLUTE ID-F125 LOT OF 2.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Mitutoyo), the part number (543-551-1) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Mitutoyo
- Part number
- 543-551-1
- Model
- ID-F125
- Series
- ABSOLUTE Digimatic Indicator ID-F (Series 543)
- Measuring range
- 25.4 mm
- Resolution
- 0.001 mm
- Accuracy
- 0.003 mm (catalog value for ID-F125)
- Encoder
- ABSOLUTE electrostatic capacitance type linear encoder
- Power input
- 9 V DC, 500 mA (via AC adapter)
- Measuring force
- 1.8 N or less
- Display
- Back-lit LCD, green/red tolerance indication
- Functions
- Origin set/preset, zero set, GO/±NG judgment, max/min hold, runout, resolution switching, data output
- Stem
- ø8 mm
- Quantity in lot
- 2 indicators
- Made in
- Japan
The Mitutoyo 543-551-1 is an ABSOLUTE Digimatic indicator from Mitutoyo's ID-F series, model ID-F125. The nameplate gives a 25.4 mm measuring range, 0.001 mm resolution and a DC 9 V, 500 mA power input. This lot contains two indicators, both made in Japan. The code is also searched as 543-551 or 5435511.
What is the ID-F series?
Mitutoyo's ID-F indicators use an ABSOLUTE electrostatic capacitance linear encoder, so the reference point is kept when the power is switched off and on. They run from 9 V DC through an AC adapter rather than a battery. The back-lit display turns from green to red when a reading is outside the set tolerance limits, and the indicator can hold maximum, minimum and runout values. Each unit has an SPC data output for sending readings to a data processor or PC.
What is in this lot?

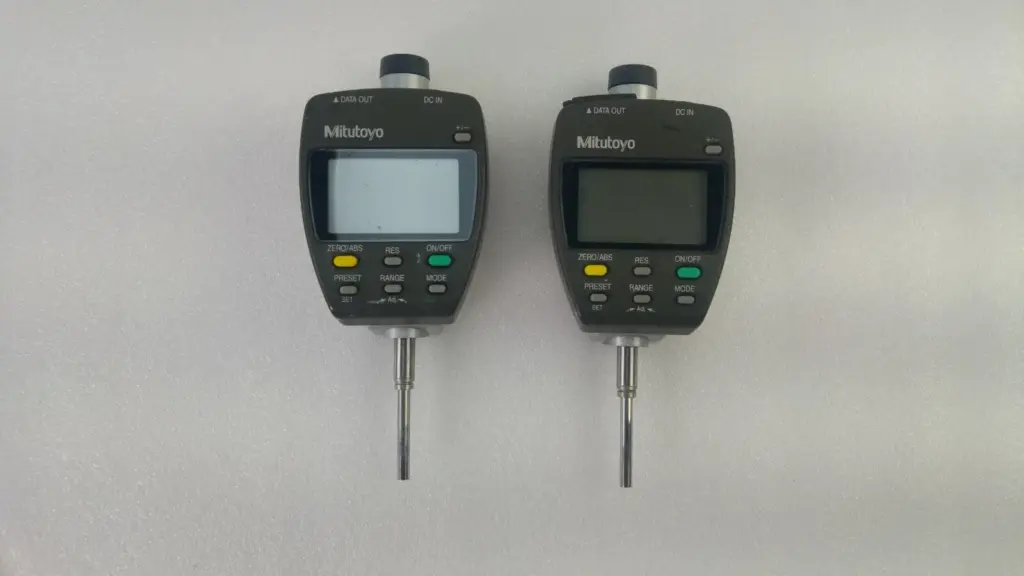

Two ID-F125 indicators, as shown in the photos. Each has a DC IN socket and a DATA OUT port on the rear of the head. No AC adapters, SPC cables or lifting levers are shown in the photos.
What condition are the indicators in?
Used. The photos show both indicators with intact displays, keypads, stems and contact points. The housings show handling marks, and on one unit the DATA OUT port cover is off, leaving the connector pins exposed.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
United States
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
International
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Mitutoyo 543-551-1?
It is the order code for the Mitutoyo ID-F125, an ABSOLUTE Digimatic indicator with a 25.4 mm range and 0.001 mm resolution, powered by 9 V DC.
How many indicators are included?
Two. Both ID-F125 units shown in the photos are part of this lot.
Does the ID-F125 run on a battery?
No. The ID-F series is powered by 9 V DC through an AC adapter; the nameplate lists DC 9 V, 500 mA. Adapters are not shown in the photos.
Can the ID-F125 send readings to a PC?
Yes. The ID-F series has an SPC data output on the DATA OUT port; a Mitutoyo SPC cable is needed to connect it.
Will it lose zero when switched off?
No. The ABSOLUTE encoder keeps the reference point once it has been set, so the origin is not lost when power is switched off and on.
