The LUMENIS SELECT 3 AC CONTROL ASSY 0636-047-01 REV. C is made by Lumenis and identified by manufacturer part number 0636-047-01 REV. C.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × LUMENIS SELECT 3 AC CONTROL ASSY 0636-047-01 REV. C.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (0636-047-01 REV. C) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- 0636-047-01 REV. C
- Board name (silkscreen)
- Coherent Medical Select 3 AC Control
- Revision
- C
- System
- Lumenis VersaPulse PowerSuite (AC Control, service manual drawing 0636-047-01)
- Input range settings
- 190–210 V (TB5-1 to TB2-2), 211–230 V (TB2-3), 231–264 V (TB2-4)
- Soft-start resistors
- 2 × 3 Ω, 20 W
- Transformer T1
- Signal Transformer 14A-10R-28
- Surge protection
- Phoenix Contact MAINS-PRINTRAB plug-in module
- Relay K2
- Potter & Brumfield (Tyco) RTB34012F
- Daughterboard
- Fan Speed Controller PCB, 0636-049 series
The Lumenis (Coherent Medical) 0636-047-01 is the Select 3 AC Control PCB, the board that receives mains power in the VersaPulse PowerSuite holmium surgical laser and distributes it to the system's loads. The PowerSuite service manual lists drawing 0636-047-01 as the AC Control schematic. This board is revision C and used. Also searched as 063604701 or 0636-047.
What does the AC Control PCB do in the VersaPulse PowerSuite?
According to the service manual, mains power runs from the circuit breaker through the line filter to TB1 on this board, with a surge protector across the mains. From there the board powers the 24 V AC interlock transformer and the start/run/stop circuit, and it brings power up through soft-start resistors R1 and R2 or the main contactor K4. Fused outputs feed the high-voltage supply's auxiliary transformer, the water pump, the low-voltage DC supply and the fan speed controller.
What is on this board?

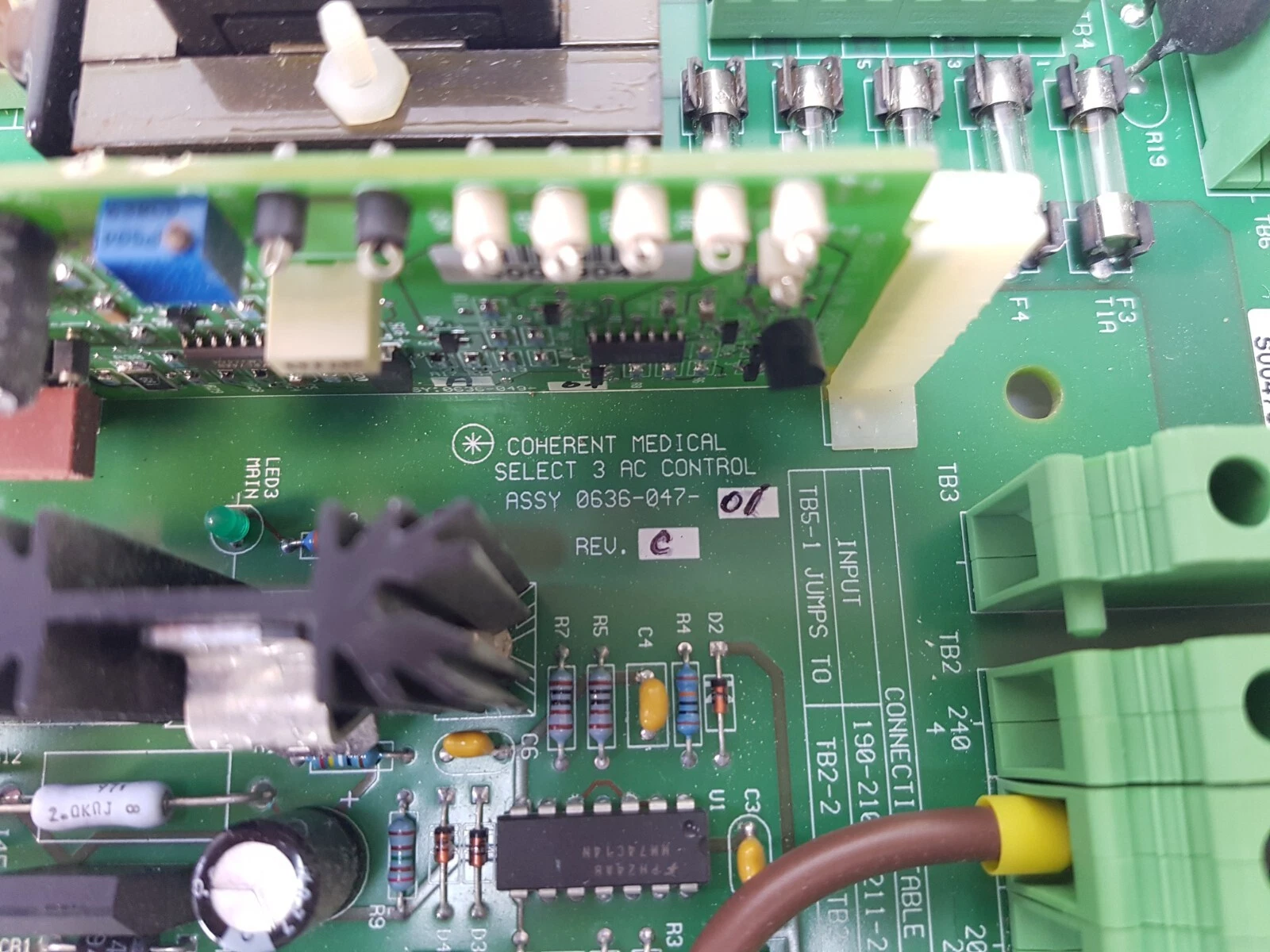

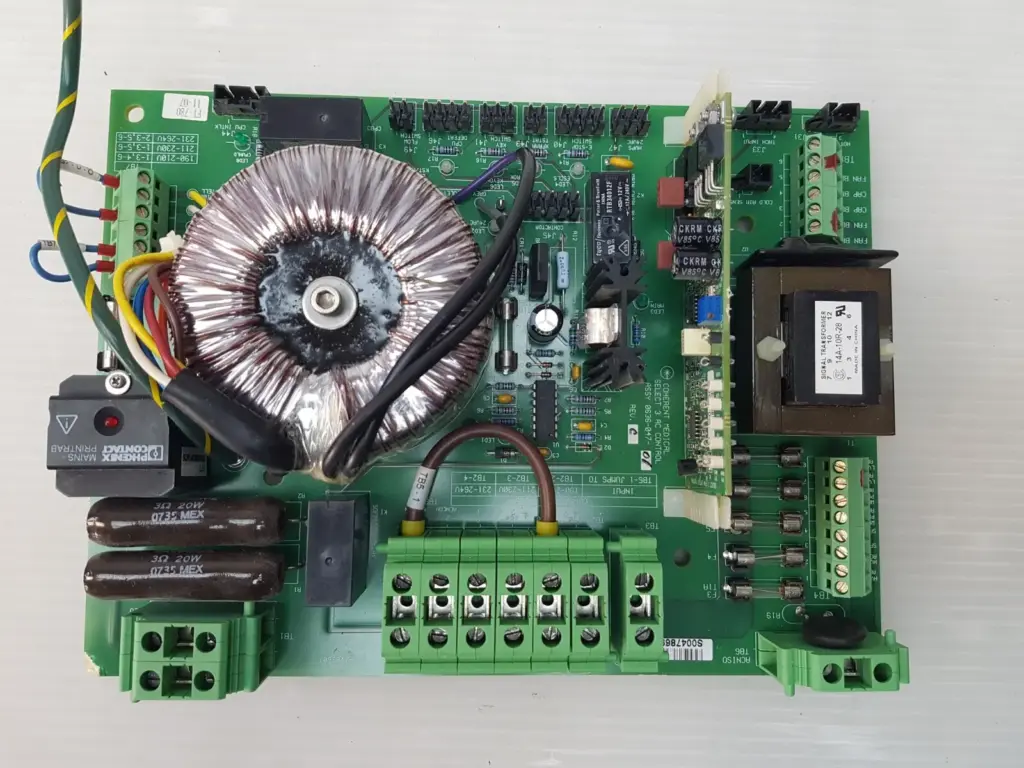

The photos show the silkscreen COHERENT MEDICAL SELECT 3 AC CONTROL ASSY 0636-047-01 REV. C, a large toroidal transformer with flying leads, two 3 Ω 20 W soft-start resistors, a Phoenix Contact MAINS-PRINTRAB surge module and a Signal Transformer 14A-10R-28 at T1. A plug-in daughterboard marked 0636-049 sits between the K2 relay and T1. The service manual lists 0636-049-01 as the Fan Speed Controller PCB and places it in that spot. Headers are marked for the CPU interlock, key switch, E-stop switch, flow switch, transformer thermostat and tach input.
How is the input voltage set?
A table printed on the board sets the mains range by moving the TB5-1 lead: to TB2-2 for 190–210 V, TB2-3 for 211–230 V or TB2-4 for 231–264 V, with matching jumpers on TB7. On this unit the lead is fitted in the TB2 block. The service manual describes the same TB5 / TB2 / TB7 configuration step during installation.
What condition is it in?
Used. The photos show the board complete with the daughterboard and surge module fitted, and a green/yellow ground lead attached.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
Which laser uses the 0636-047-01 AC Control PCB?
The Lumenis VersaPulse PowerSuite holmium surgical laser. Its service manual lists 0636-047-01 as the AC Control drawing.
What does this board do?
It takes the mains from the line filter, handles soft-start and the main contactor, powers the 24 V AC interlock circuit, and feeds fused power to the HVPS auxiliary transformer, water pump, low-voltage supply and fan speed controller.
Is the fan speed controller board included?

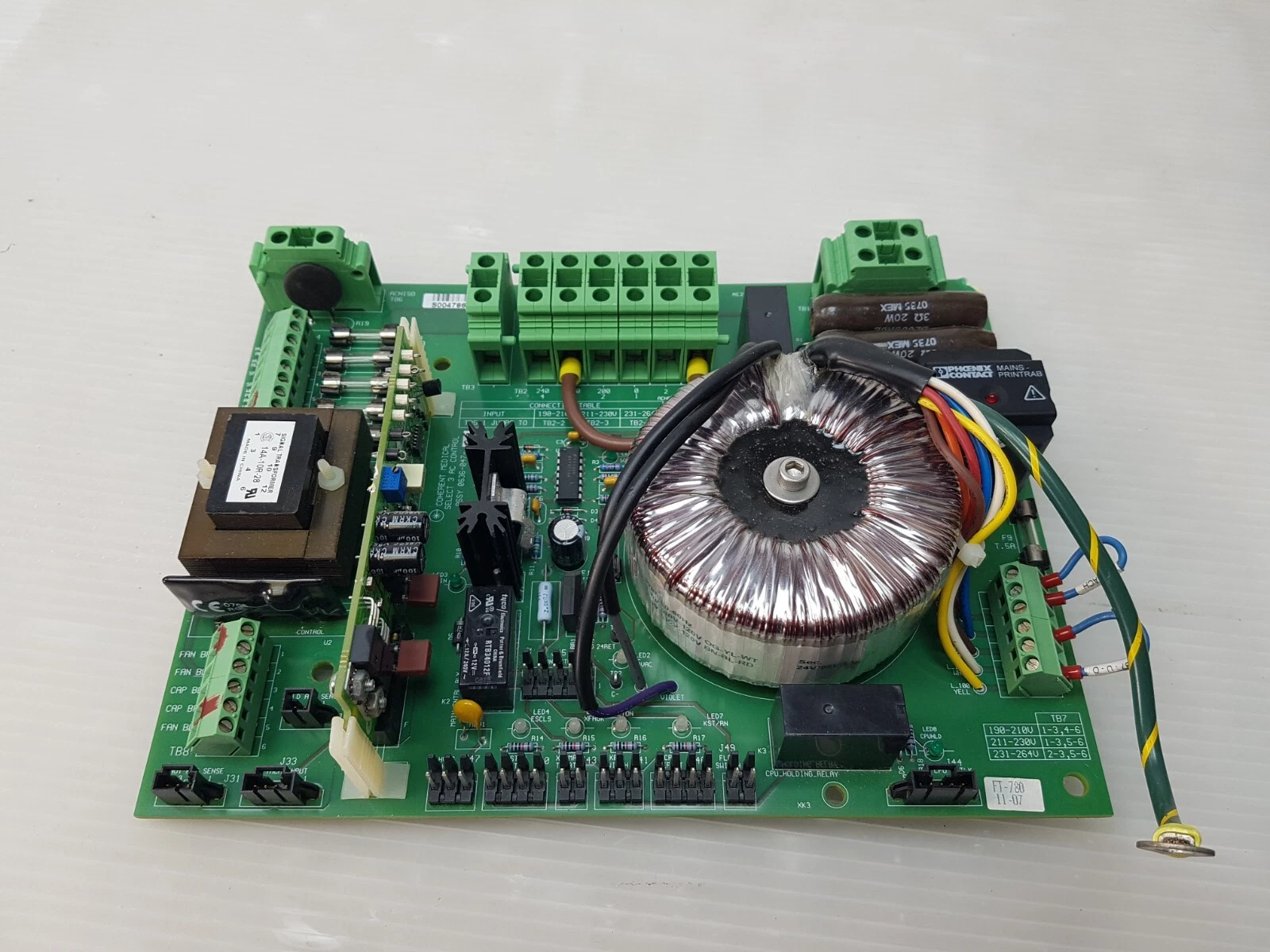

Yes. The photos show the plug-in 0636-049 fan speed controller daughterboard fitted between the K2 relay and T1.
How do I set it for my mains voltage?
Move the lead from TB5-1 to TB2-2 (190–210 V), TB2-3 (211–230 V) or TB2-4 (231–264 V) and set the TB7 jumpers to match, following the table printed on the board and the service manual.
