Product details

About this part

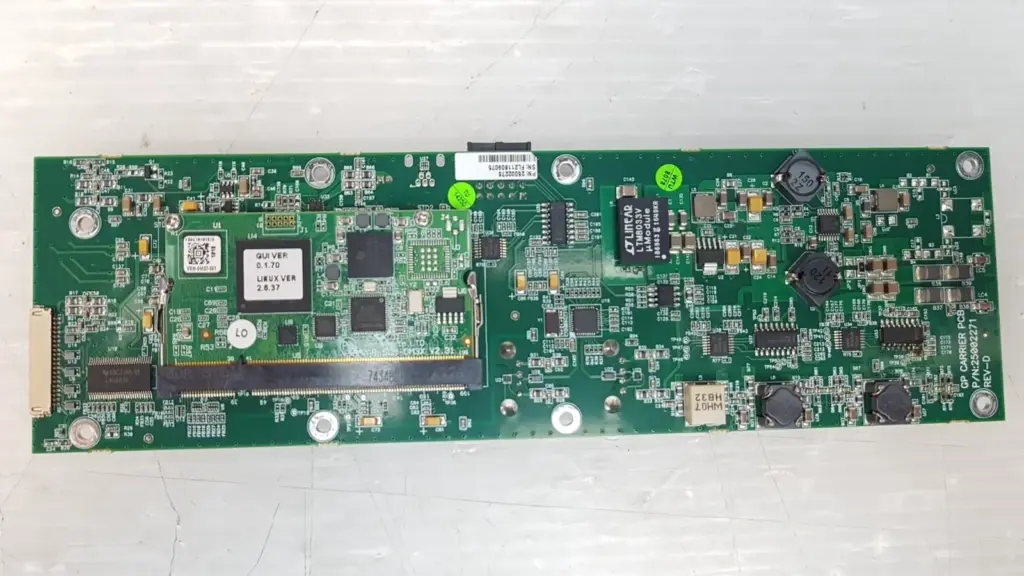

The Lumenis GP Carrier PCB 25002271 Rev-D, P/N 25002275, with Variscite VAR-SOM-OM37 Module is made by Lumenis and identified by manufacturer part number 25002271 REV-D, P/N 25002275.

This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.

Condition

This item is listed as For Parts / Not Working. Sold as-is, for parts or repair.

The photos are part of the description — check them for labels, connectors, markings and any visible wear.

What's included

1 × Lumenis GP Carrier PCB 25002271 Rev-D, P/N 25002275, with Variscite VAR-SOM-OM37 Module.

Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.

Identification & compatibility

Check the manufacturer (Lumenis), the part number (25002271 REV-D, P/N 25002275) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.

Price match

Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.

Important information

Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.

Brand
Lumenis
Part number
25002271 REV-D, P/N 25002275
Board marking
GP CARRIER PCB P/N:25002271 REV-D
Label (rear)
PN 25002275, SN PDC81809708
Label (front)
PN 25002276, SN FL211809075 (as read from photo)
Module fitted
Variscite VAR-SOM-OM37 V2.31, label VSM-OM37-301
Module processor (Variscite)
TI DM3730 / AM3703, Cortex-A8
Software labels
GUI VER 0.1.70, LINUX VER 2.6.37
Display interface
TFT LVDS (TI LVDS83B), touchscreen, backlight connectors
Other connectors
2x USB Type-A, PORT-1, PORT-2, DBG TERMINAL, AUDIO
Power input (silkscreen)
DC-IN 12V
Regulator
Linear Technology LTM8033V µModule
Controls
Boot Select, User and Reset push buttons
Backup battery
Panasonic CR2032 coin cell in holder
Condition
For parts / not working

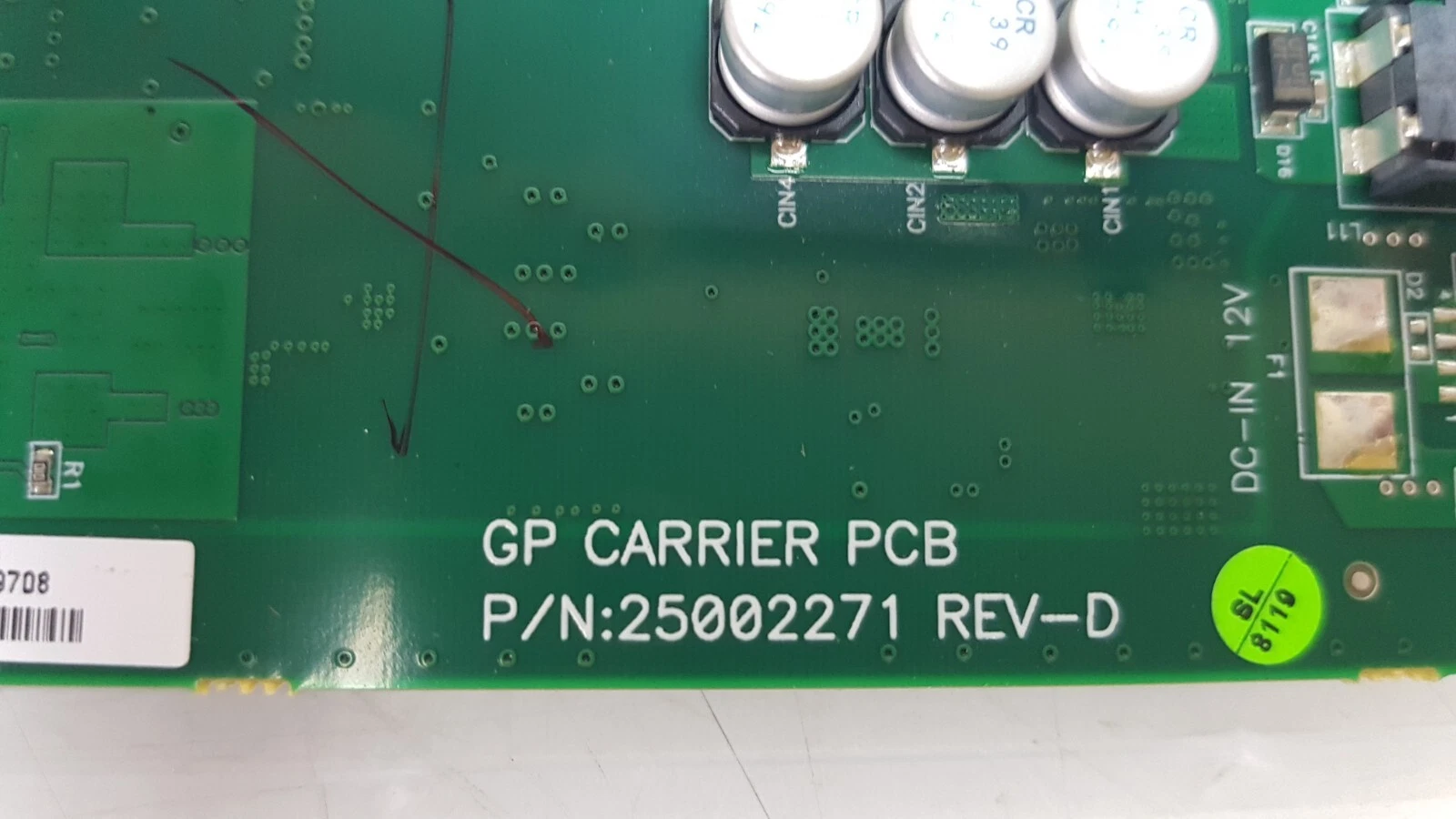

Lumenis GP carrier PCB 25002271 Rev-D, sold for parts, with its Variscite VAR-SOM-OM37 module still in the socket. The silkscreen reads GP CARRIER PCB P/N:25002271 REV-D. The rear label reads PN 25002275, SN PDC81809708. Also searched as 25002271REV-D or 25002275.

Which part number goes with this board?

Three numbers are on it. 25002271 Rev-D is etched in the copper. A label on the back gives PN 25002275. A second label on the front, next to the module, reads PN 25002276, SN FL211809075 (small print, best reading from the photo). The board itself has no Lumenis logo or system name.

What is on the board?

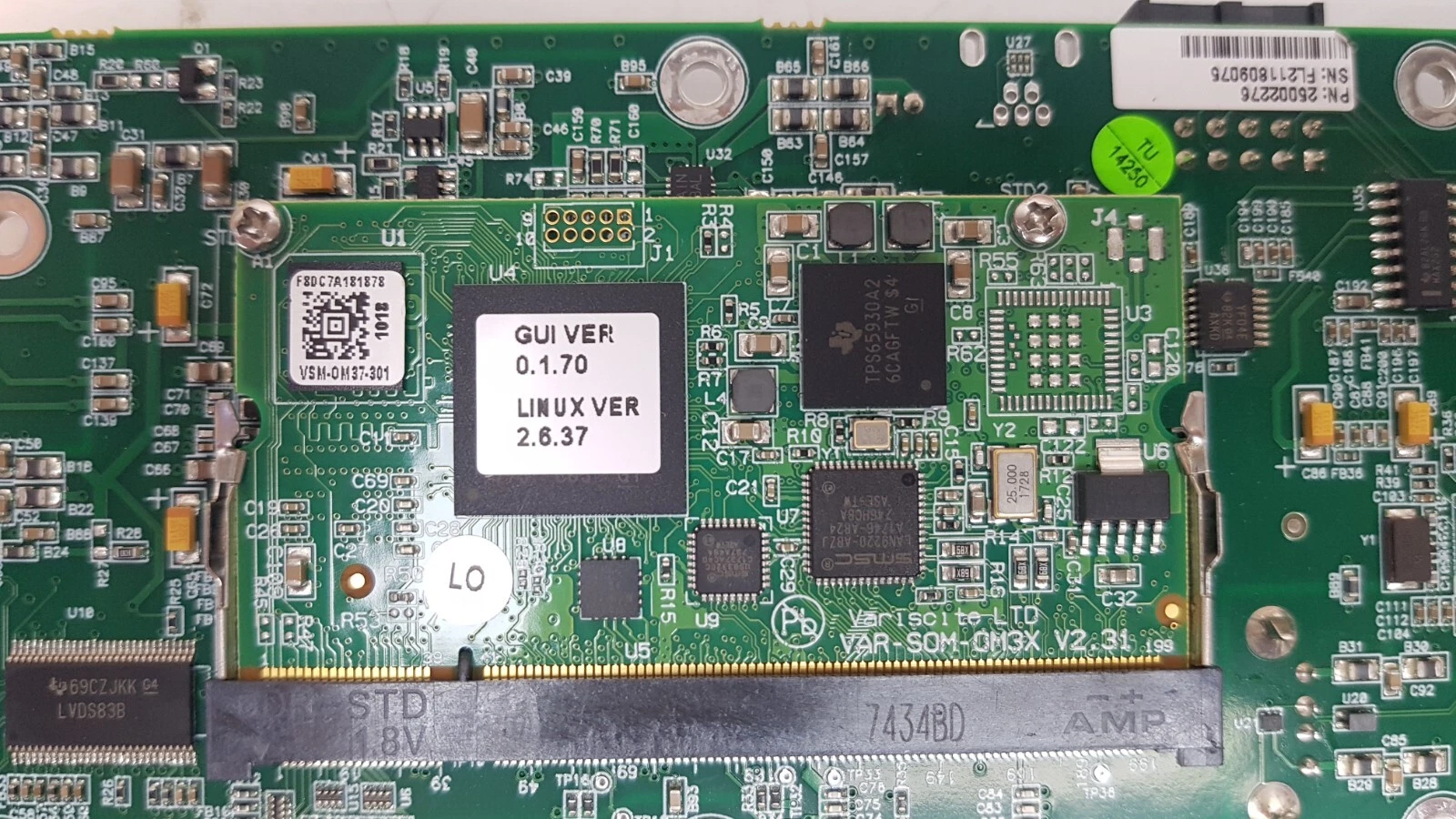

A Variscite VAR-SOM-OM37 V2.31 system on module (label VSM-OM37-301) sits in the 1.8V DDR socket. Stickers on it read GUI VER 0.1.70 and LINUX VER 2.6.37. Beside it: a TI LVDS83B LVDS transmitter for the display link and a Linear Technology LTM8033V µModule regulator in the power section.

What connects to it?

The silkscreen marks TFT LVDS, Touchscreen, Backlight, two USB Type-A ports, PORT-1, PORT-2, DBG TERMINAL, AUDIO and DC-IN 12V. There are three push buttons (Boot Select, User, Reset) and a Panasonic CR2032 coin cell in its holder. The layout is that of a display and touchscreen controller for a front panel.

Ships from
Israel
Tracking
Included on every order

Import duties and taxes may apply in your country and are paid by the buyer on delivery.

Returns
Not accepted

Return terms differ from item to item — this item's own policy is shown above.

Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.

Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.

Read the full returns & warranty policy

Questions about this part

Which module is plugged into the 25002271 board?

A Variscite VAR-SOM-OM37 V2.31, label VSM-OM37-301. It stays on the board.

What is the difference between a SOM and a carrier board?

The SOM (system on module) holds the processor, memory and flash. The carrier board gives it power and the real-world connectors: here LVDS display, touchscreen, USB, two port headers and audio.

What power does it need?

The power inlet is marked DC-IN 12V on the silkscreen.

What software is on the module?

Labels on the module read GUI VER 0.1.70 and LINUX VER 2.6.37. We did not boot it.

Is the 25002275 the same part as the 25002271?

Both are on this one board: 25002271 Rev-D is the bare PCB etching, 25002275 is the label on the back.

Does it include the coin cell?

Yes, a Panasonic CR2032 is in its holder as shown. Its charge is unknown.
