Photos show the actual item you will receive.
Product details
About this part
The Lumenis FINDER 56.32.9.024.0070 is made by Lumenis and identified by manufacturer part number 56.32.9.024.0070.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Lumenis FINDER 56.32.9.024.0070.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (56.32.9.024.0070) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- 56.32.9.024.0070
- Model
- 56.32.9.024.0070
- Relay
- Finder 56.32.9.024.0070
- Type
- Plug-in miniature power relay, 56 series
- Contacts
- 2 CO (DPDT), AgNi
- Contact rating
- 12 A rated / 20 A peak, 250 V AC (400 V AC max switching)
- Rated load AC1
- 3000 VA
- Coil
- 24 V DC, operating range 19.2-26.4 V, 600 Ω, 40 mA
- Options (code 0070)
- Lockable test button + double LED (DC non-polarized)
- Ambient temperature (catalog)
- -40 to +70 °C
- Mounting
- Blue screw-terminal socket for 35 mm rail, wire retaining clip
- Wiring
- Grey shielded control cable, white multi-pin connector and two 2-pin connectors
- Markings (cover)
- CE, cURus, RINA, Made in EU
This is a Finder 56.32.9.024.0070 plug-in power relay (2 changeover contacts, 12 A, 24 V DC coil) mounted on a blue 35 mm rail socket and wired to a grey cable harness with three plastic connectors, listed as a Lumenis part. The Finder 56.32 is a miniature 12 A power relay with a lockable test button, used in control panels and machine control circuits. The part number is also written 56.32.9.024.0070 or 563290240070.
What does the Finder part number mean?
In the Finder ordering code, 56.32 is the 56 series plug-in relay with 2 poles, 9.024 is a 24 V DC coil, and 0070 is standard AgNi contacts, changeover (CO) contacts, and option 7: lockable test button plus double LED (DC, non-polarized). The relay cover is printed finder, 56.32.9.024.0070, 12A - 250V~, 24V DC.
What are the ratings of the Finder 56.32?
Finder rates the 56.32 at 12 A rated current (20 A peak), 250 V AC rated voltage (400 V AC maximum switching), 3000 VA AC1 load and 0.55 kW single-phase motor rating at 230 V AC. The 24 V DC coil works from 19.2 to 26.4 V and draws 40 mA (600 Ω).
How does the lockable test button work?
Pressing the test button operates the contacts without powering the coil, and they return when it is released. Per Finder, if the small plastic pip above the button is cut off, the button can also be pushed and rotated to latch the contacts on until it is rotated back.
What is in the photos?

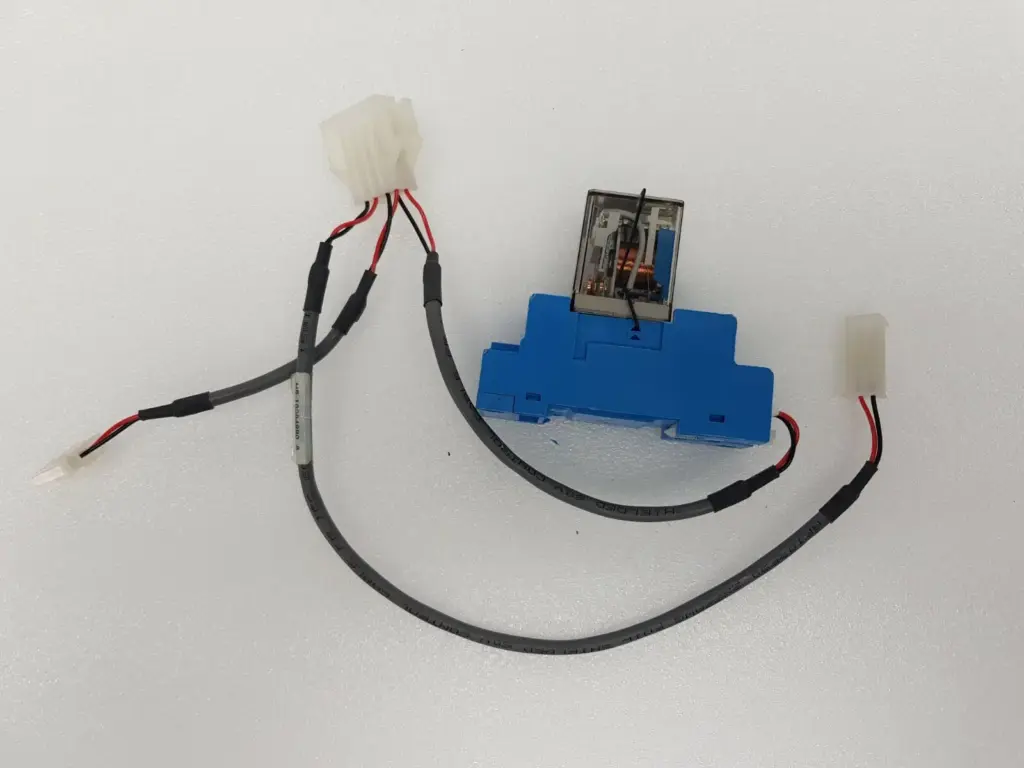

The relay is held in the blue screw-terminal socket by a wire retaining clip. The coil is wired with red and black leads into the socket terminals, and a grey shielded control cable runs to a white multi-pin connector and two white 2-pin connectors. The cover shows CE, cURus and RINA marks and Made in EU. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Finder 56.32.9.024.0070?
A Finder 56 series plug-in power relay with 2 changeover contacts rated 12 A, 250 V AC, a 24 V DC coil, a lockable test button and a double LED.
What does 0070 mean in the Finder part number?
Standard AgNi contacts (0), changeover contacts (0), option 7 = lockable test button plus double LED for DC coils, and standard version (0).
How does a Finder relay work?
When 24 V DC is applied to the coil, it pulls the armature and switches both changeover contacts. When the coil is de-energized, the contacts return to their rest position.
What voltage does the coil need?
24 V DC nominal. Finder gives an operating range of 19.2 to 26.4 V DC for this coil.
Is the socket included?
Yes. The relay is shown fitted in a blue rail-mount screw-terminal socket with a wire retaining clip, wired to the cable harness.
What condition is it in?
Used, as shown in the photos.
