The LUMENIS ASSY 0633-641-01 REV. H is made by Lumenis and identified by manufacturer part number 0633-641-01 REV. H.

This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.

Condition

This item is listed as For Parts / Not Working. Sold as-is, for parts or repair.

The photos are part of the description — check them for labels, connectors, markings and any visible wear.

What's included

1 × LUMENIS ASSY 0633-641-01 REV. H.

Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.

Identification & compatibility

Check the manufacturer (Lumenis), the part number (0633-641-01 REV. H) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.

Price match

Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.

Important information

Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.

Brand
Lumenis
Part number
0633-641-01 REV. H
Revision
H
Transformer T1
Signal Transformer 14A-20-1468A
Transformer T2
Signal Transformer 14A-30-36: 115/230 V primary, 18/36 V secondary, 30 VA, 50/60 Hz
Relay K2
Potter & Brumfield RTB34012F
Fuse F4 / F5 (marked on board)
T125 mA / T2000 mA
Terminal blocks
TB2 ACNON / ACHON; TB3 ACN / ACH / EGND; ACNISO / ACHISO
Fused outputs (silkscreen)
XFMR_FAN_ACH, FAN_ACH, LVDC_ACH, PUMP_ACH via 12-pin connector

The Lumenis 0633-641-01 Rev. H is a mains-side circuit board assembly from Lumenis (Coherent Medical) laser equipment that carries transformers, relays and the fused AC feeds for pumps, fans and a low-voltage DC supply. This unit is sold For Parts / Not Working. Buyers also search it as 0633641-01 or 063364101.

What is on the Rev. H board?

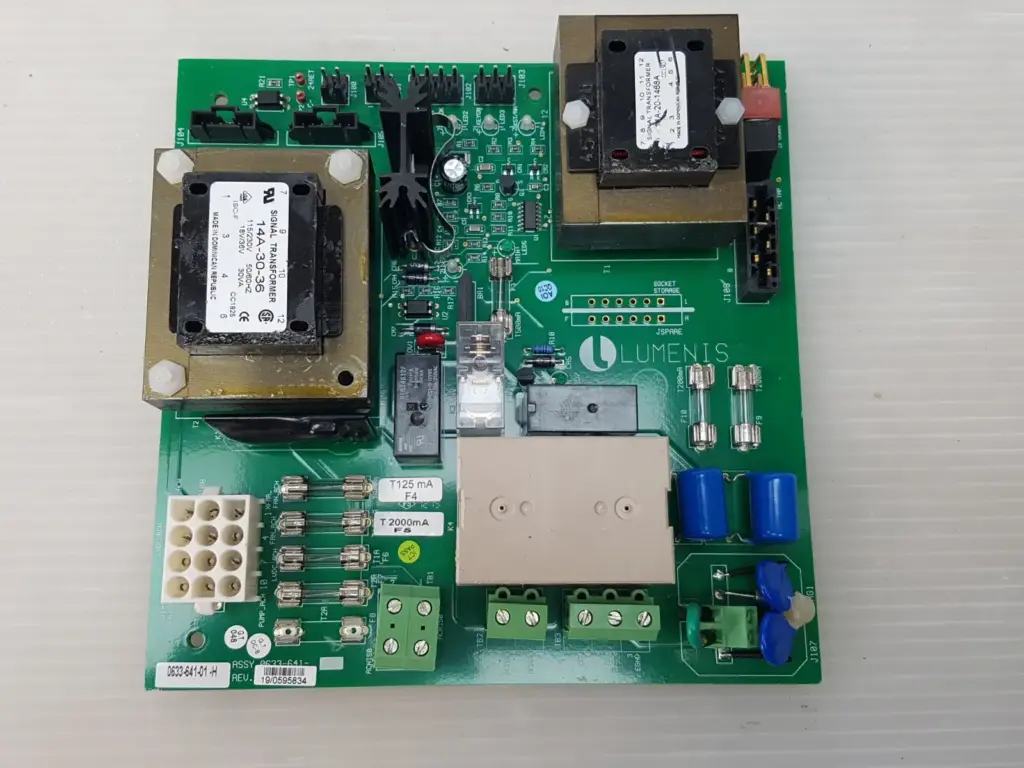

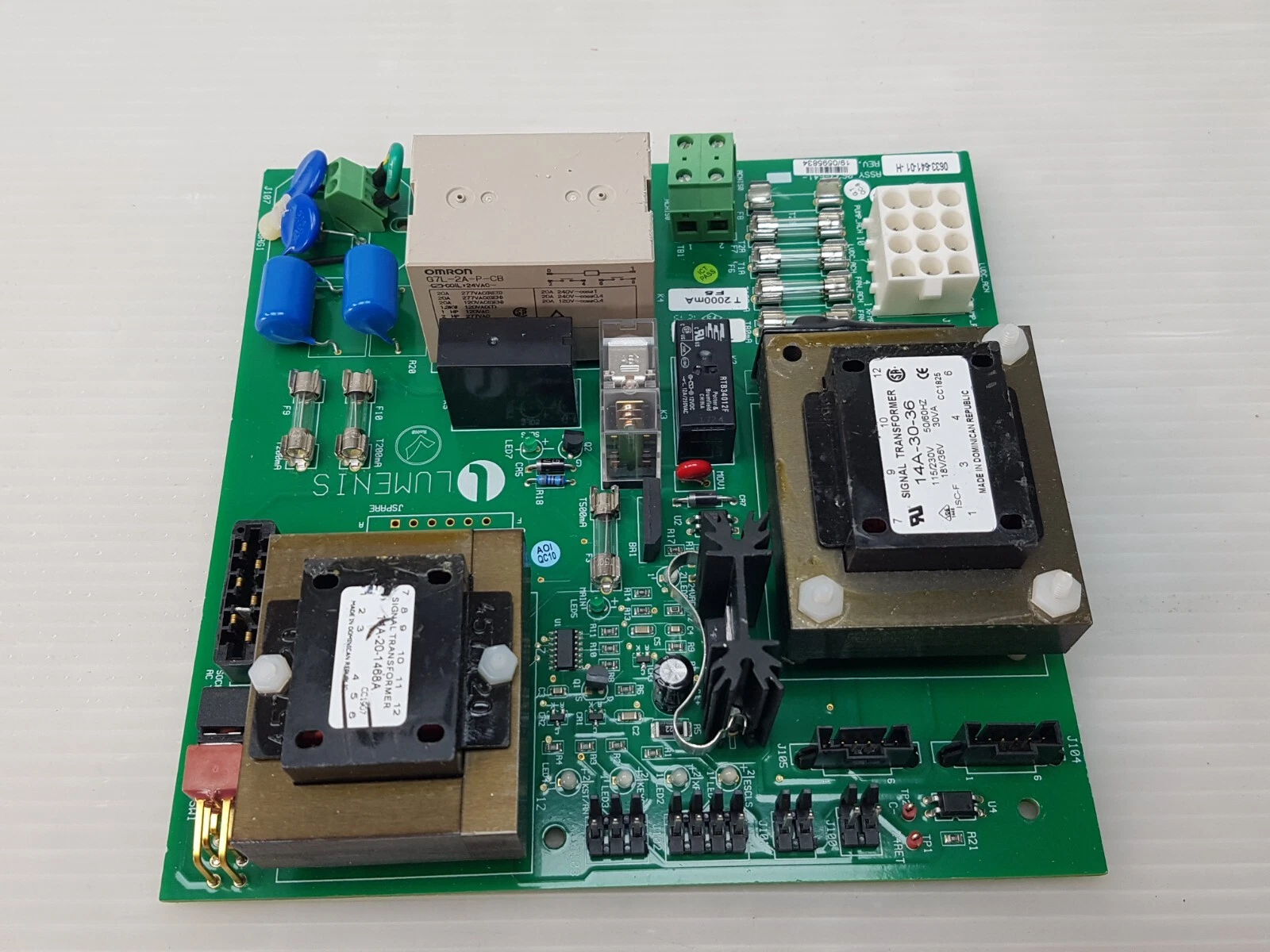

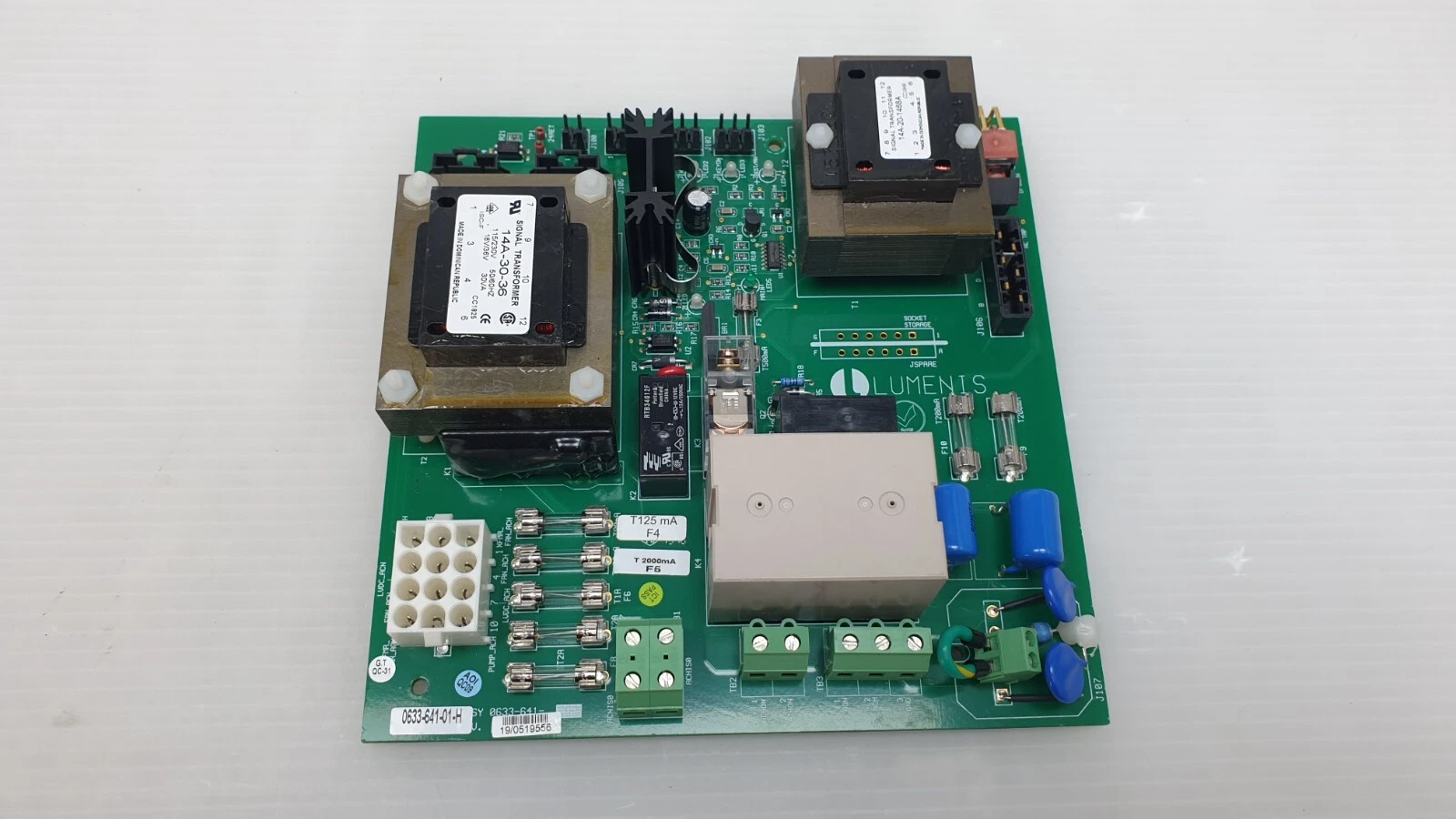

The photos show a green Lumenis-marked PCB with two Signal Transformer units: a 14A-20-1468A at T1 and a 14A-30-36 (115/230 V, 18/36 V, 30 VA) at T2. Next to them sit a Potter & Brumfield RTB34012F relay at K2 and a large enclosed relay at K4. A row of glass fuses feeds a 12-pin connector whose pins are marked XFMR_FAN_ACH, FAN_ACH, LVDC_ACH and PUMP_ACH, and the F4 and F5 positions carry T125 mA and T2000 mA markers. Screw terminals are marked ACNON / ACHON, ACN / ACH / EGND and ACNISO / ACHISO, and there is a connector marked SOCKET AC TAP.

What condition is this unit in?

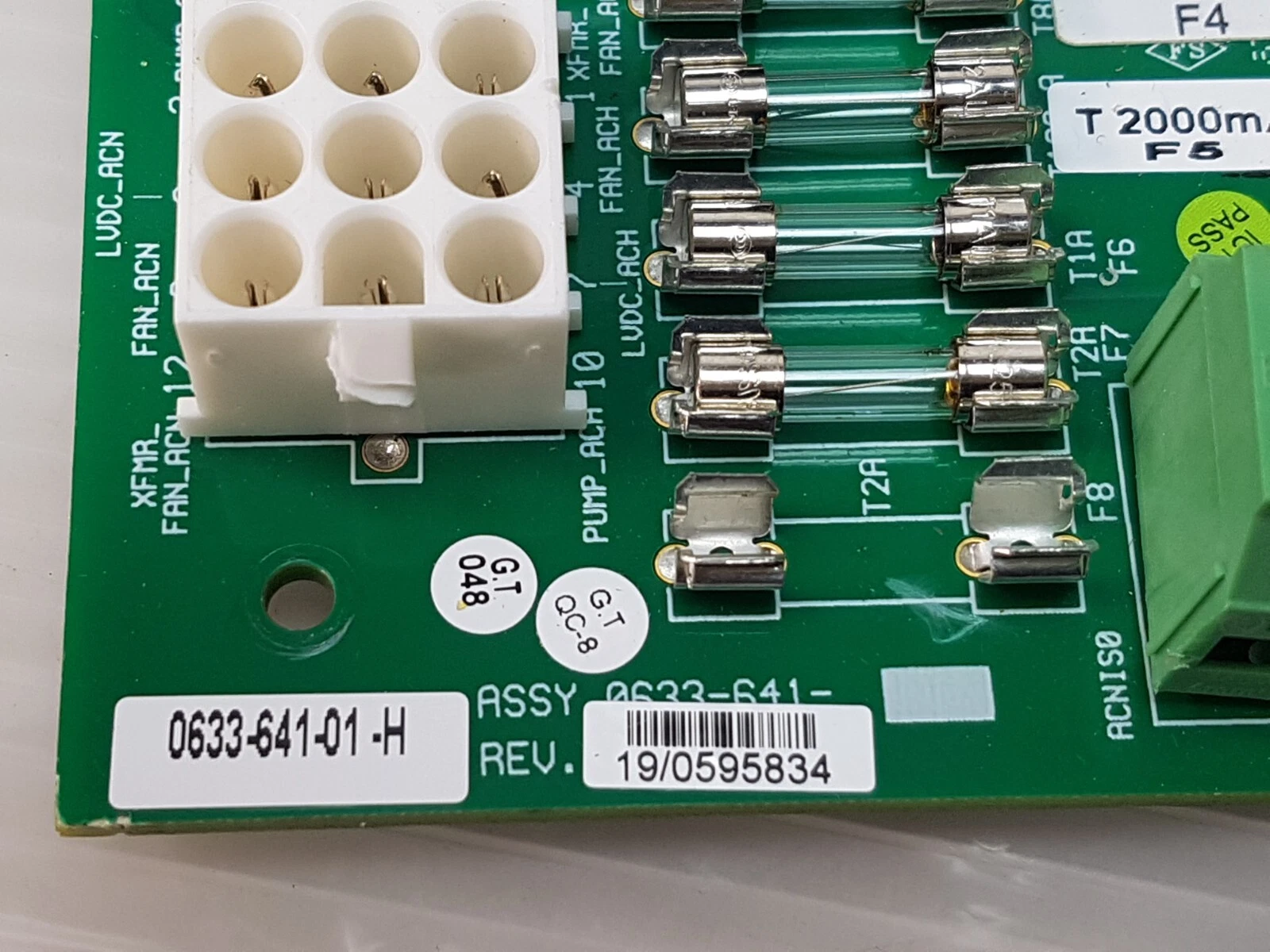

It is sold For Parts / Not Working. In the photos both transformers are fitted, and a two-pin plug with blue disc components sits at the SRG1 position. A close-up shows the 0633-641-01 -H label next to the ASSY / REV. silkscreen.

How is Rev. H different from earlier revisions?

On the Rev. C and Rev. D boards we have photographed, T1 is an unlabelled potted transformer and a Phoenix Contact plug-in surge module can sit at SRG1. On Rev. H, T1 is a Signal Transformer 14A-20-1468A and SRG1 holds a plug with disc components instead. If your machine calls for a specific revision, compare the REV. letter on your original board before ordering.

Ships from
Israel
Tracking
Included on every order

Import duties and taxes may apply in your country and are paid by the buyer on delivery.

Returns
Not accepted

Return terms differ from item to item — this item's own policy is shown above.

Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.

Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.

Read the full returns & warranty policy

Questions about this part

What revision is this 0633-641-01 board?

Revision H, as written in the REV. field of the silkscreen and on the 0633-641-01 -H label.

Does this Rev. H board work?

It is sold For Parts / Not Working, so do not expect it to run as-is. It suits parts recovery or bench repair.

Which transformers are fitted?

The photos show a Signal Transformer 14A-20-1468A at T1 and a Signal Transformer 14A-30-36 (115/230 V, 18/36 V, 30 VA) at T2.

What do the fused outputs on the board feed?

The silkscreen next to the fuse row names them XFMR_FAN_ACH, FAN_ACH, LVDC_ACH and PUMP_ACH, and they go out through a 12-pin connector.
