Photos show the actual item you will receive.
Product details
About this part
The LUMENIS AM-XTI3955-V1R MOTHERBOARD EMX-SKLUP-3955-A1R is made by Lumenis and identified by manufacturer part number EMX-SKLUP-3955-A1R.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × LUMENIS AM-XTI3955-V1R MOTHERBOARD EMX-SKLUP-3955-A1R.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (EMX-SKLUP-3955-A1R) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- EMX-SKLUP-3955-A1R
- Form factor
- Thin Mini-ITX, 170 × 170 mm
- Processor
- Intel Celeron 3955U, 2 cores, 2.0 GHz (6th gen)
- Memory
- 2 × 260-pin DDR4-2133 SO-DIMM, up to 32 GB (none fitted in photos)
- Display
- DisplayPort, HDMI, LVDS (up to 3 displays)
- Ethernet
- 2 × Gigabit LAN
- USB
- 4 × USB 3.0, 4 × USB 2.0
- Serial
- RS-232 and RS-232/422/485
- Storage
- SATA, M.2, SD card slot
- Expansion
- PCIe slot, SIM card slot
- Power input
- 12–24 V DC
- Operating temperature
- 0 to 60 °C
- Cooling
- Passive heatsink
- Board labels
- AM-XTI3955-V1R, EMX-SKLUP-3955-A1R, Rev.001
The Avalue EMX-SKLUP-3955-A1R is a thin Mini-ITX (170 × 170 mm) industrial motherboard with a 6th-generation Intel Celeron 3955U processor, here in a version labelled AM-XTI3955-V1R from Lumenis equipment. The 3955 in the model code is the Celeron 3955U option (2 cores, 2.0 GHz) of Avalue's EMX-SKLUP family. The board is also searched as EMX-SKLUP-3955 or AM-XTI3955.
What are the main features of the EMX-SKLUP?
It takes up to 32 GB of DDR4-2133 memory in two SO-DIMM sockets, drives up to three displays through DisplayPort, HDMI and LVDS, and has two Gigabit Ethernet ports, USB 3.0 and USB 2.0, RS-232 and RS-232/422/485 serial ports, SATA, M.2, an SD card slot, a SIM card slot and a PCIe slot. It runs from a 12–24 V DC input.
What does the board in the photos look like?

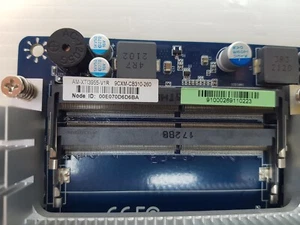

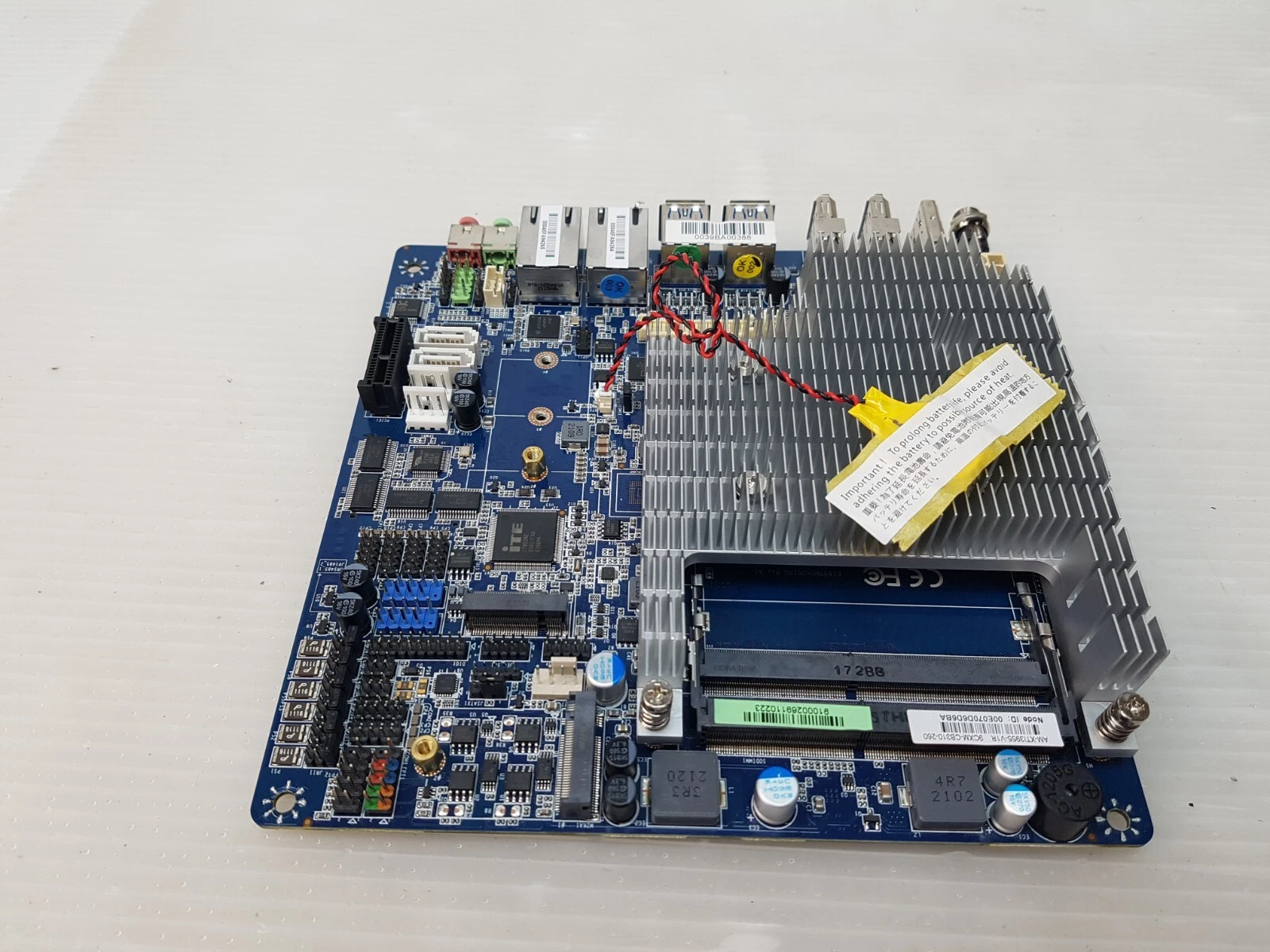

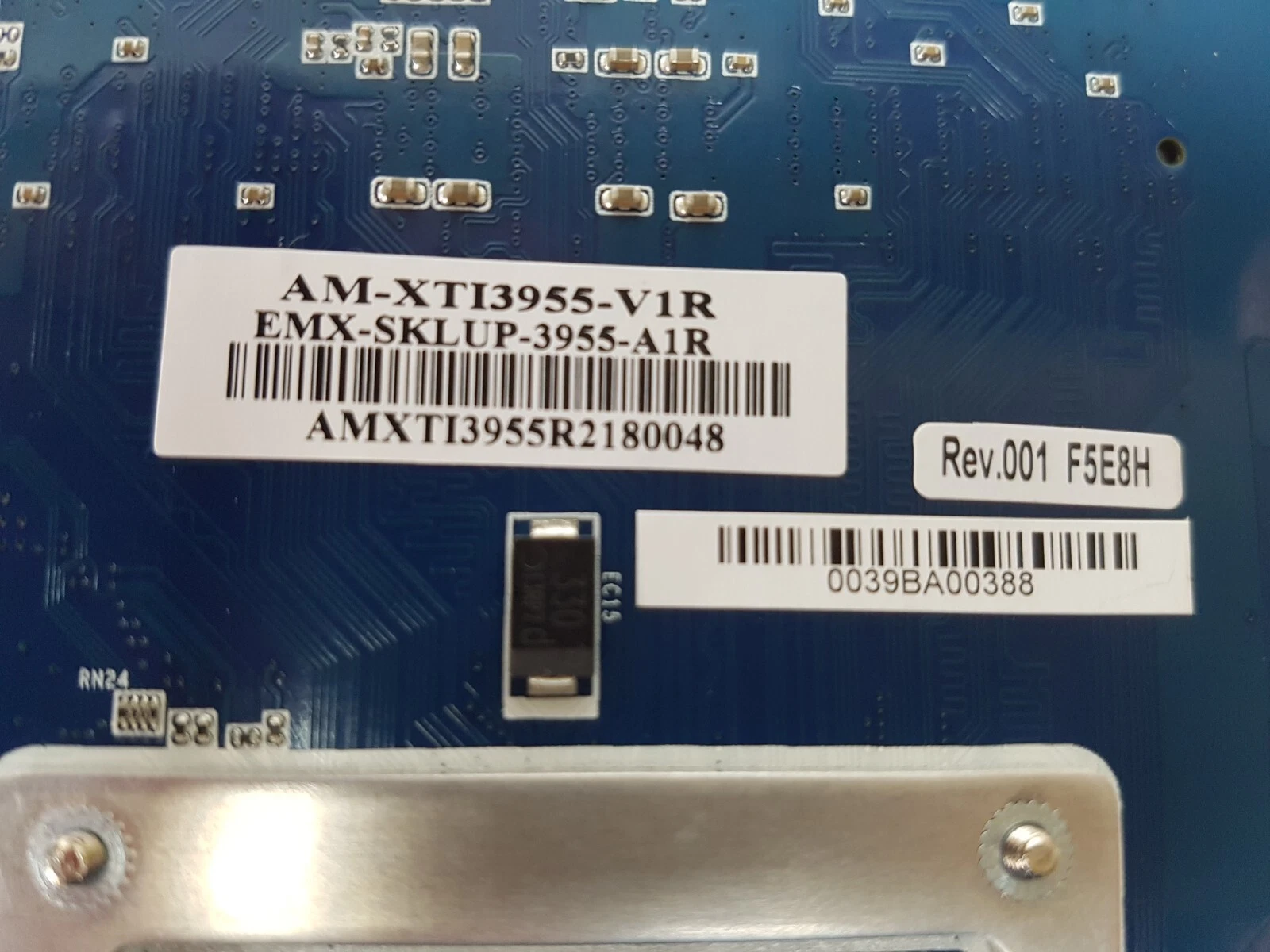

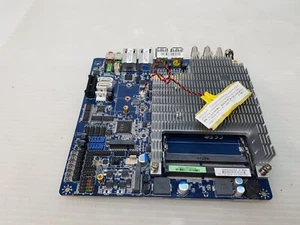

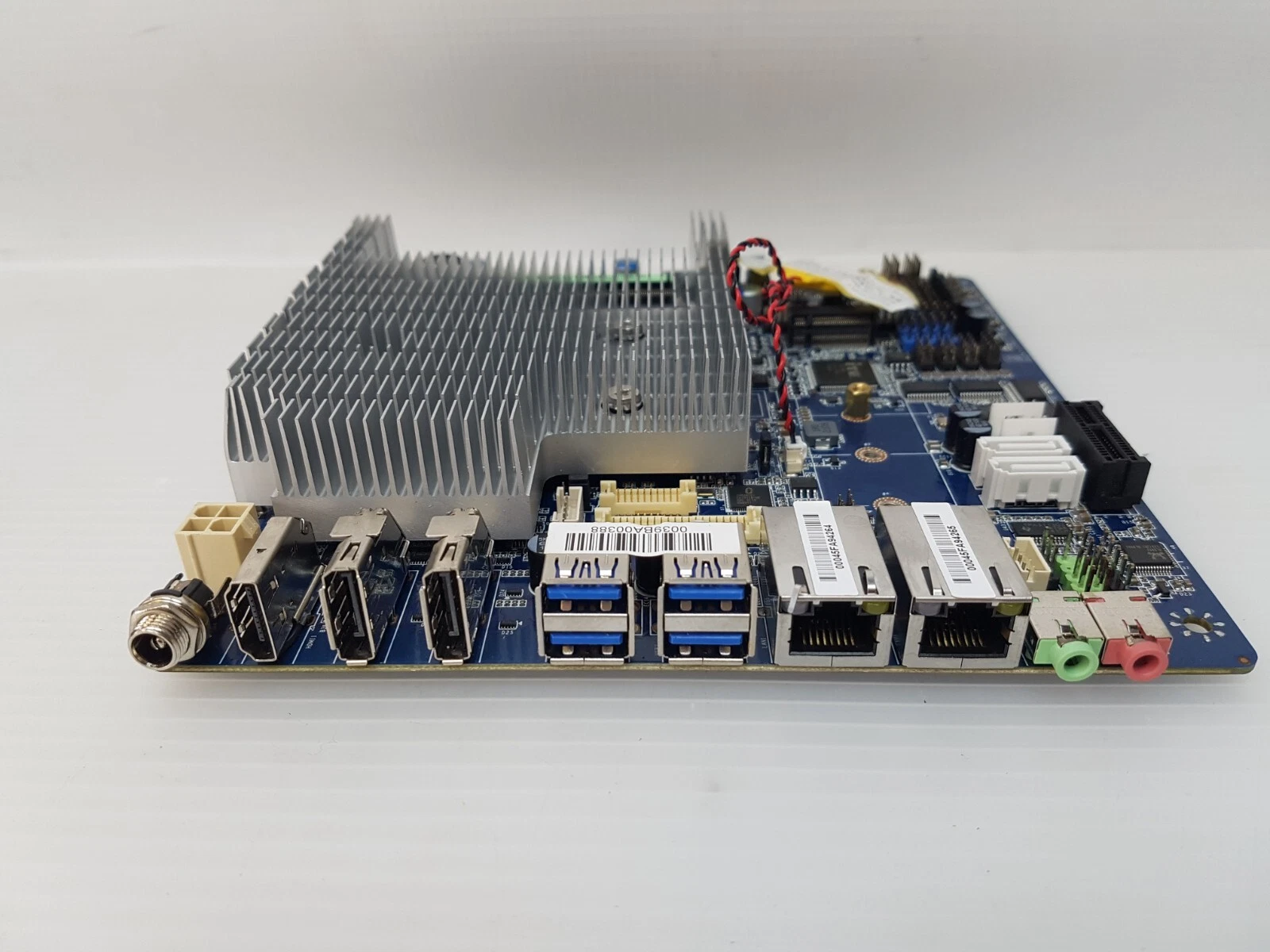

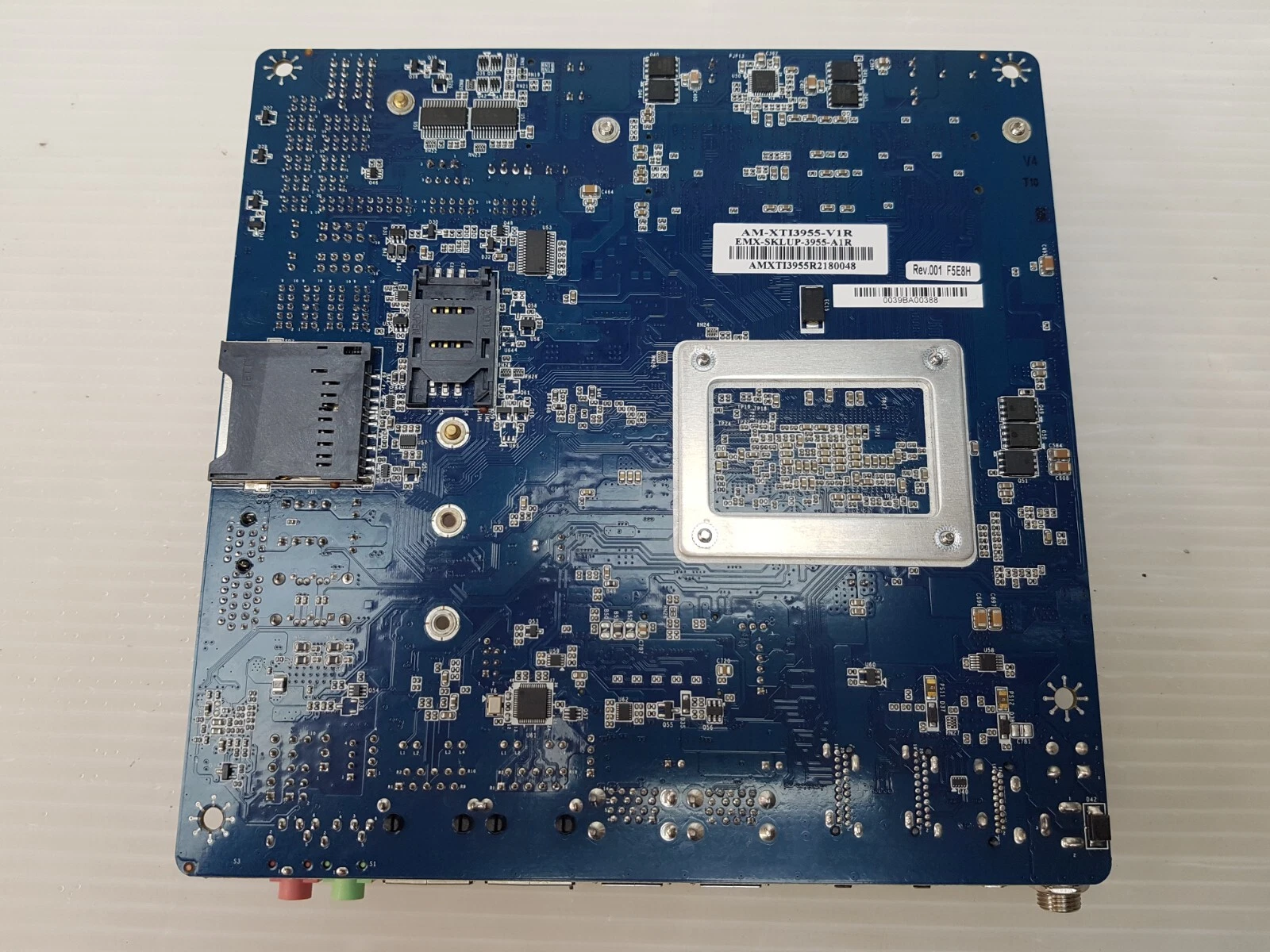

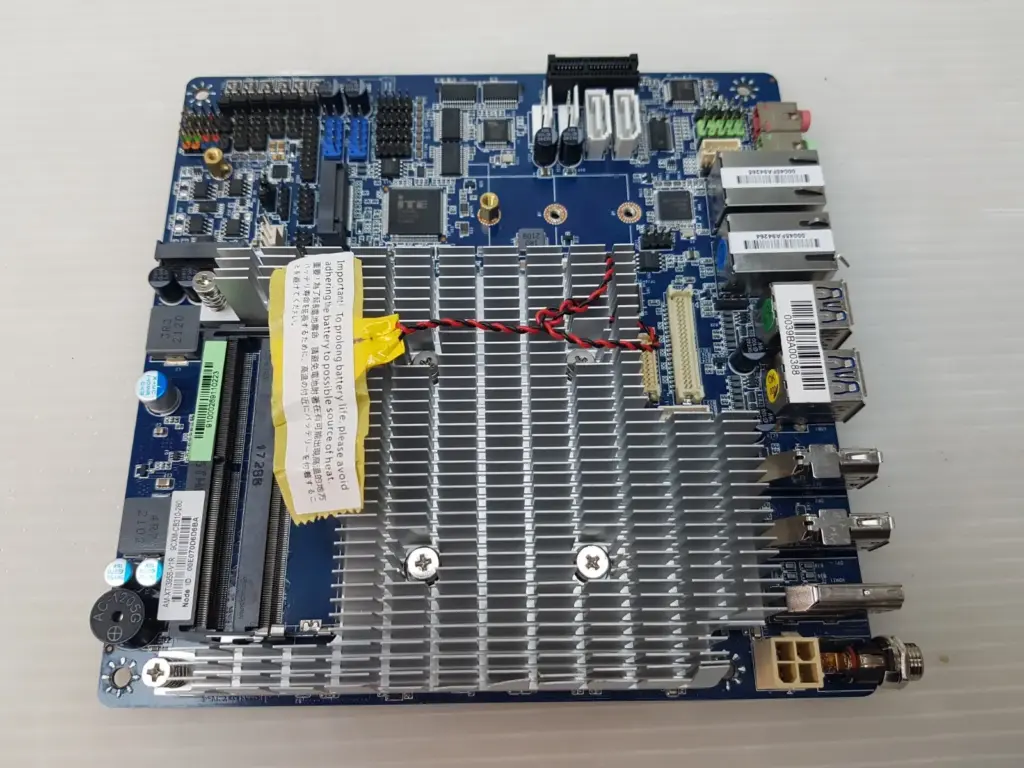

The processor is under a large passive finned heatsink. The rear I/O edge has a DC power jack, three display connectors, four blue USB 3.0 ports, two RJ45 ports and audio jacks. The SO-DIMM sockets are empty in the photos. A label on the underside reads AM-XTI3955-V1R / EMX-SKLUP-3955-A1R, Rev.001.
What condition is it in?
Used. The photos show the board with its heatsink fitted and no memory installed. A wire lead with a yellow tag is attached near the heatsink.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 30 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What processor is on the EMX-SKLUP-3955-A1R?
An Intel Celeron 3955U, a 6th-generation dual-core processor at 2.0 GHz. Other EMX-SKLUP versions use Core i3, i5 or i7 processors.
Is memory included?
No. Both DDR4 SO-DIMM sockets are empty in the photos. The board takes up to 32 GB of DDR4-2133.
What power supply does it need?
A 12–24 V DC input.
What is AM-XTI3955-V1R?
It is a second model label on this board, next to the Avalue EMX-SKLUP-3955-A1R code. The board comes from Lumenis equipment.
How many displays can it drive?
Up to three, using the DisplayPort, HDMI and LVDS outputs.
