Photos show the actual item you will receive.
Product details
About this part
The Kinetrol 023-100 Actuator, 7bar 100psi, GU9 9NU, 020-020 is made by Kinetrol and identified by manufacturer part number 023-100.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Kinetrol 023-100 Actuator, 7bar 100psi, GU9 9NU, 020-020.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Kinetrol), the part number (023-100) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Kinetrol
- Part number
- 023-100
- Model
- 023-100
- Country of Origin
- United Kingdom
- Manufacturer
- Kinetrol, Made in England (GU9 9NU, UK)
- Actuator code
- 023-100 (Model 02, ISO/DIN flange, double acting)
- Actuator serial / built
- 1634203 / 2014
- Spring unit
- TYPE 020-020, serial 1715321, built 2015
- Spring unit ATEX marking
- Ex II 1GDc, Baseefa03ATEX0443X, 90 °C, Ta -20 to 80 °C
- Max pressure
- 7 bar (100 psi)
- Angle of travel
- 80° to 100° adjustable (Model 02 actuator)
- Double acting torque (actuator alone)
- 9.2 Nm at 5.5 bar, 12.1 Nm at 7 bar
- Spring torque (Model 02 spring unit)
- 4.7 Nm start, 3.7 Nm finish
- Construction
- Die cast aluminium casing, stainless steel vane and shaft, epoxy finish
- Operating temperature (actuator)
- -40 to +80 °C
- Top housing
- Kinetrol switch housing, CE built 2015, no code label visible

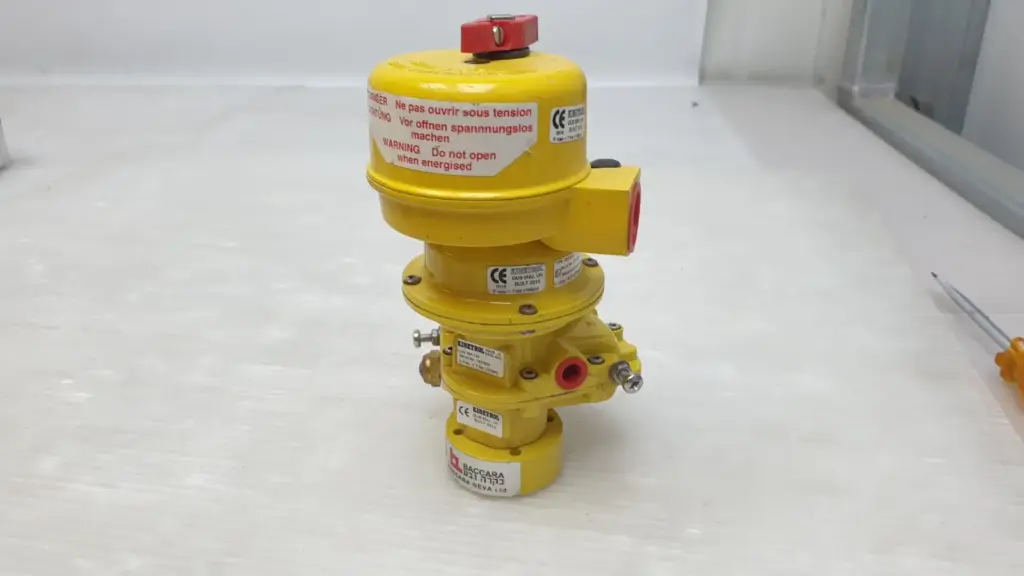

Kinetrol 023-100 Model 02 vane actuator, stacked with a 020-020 spring unit and a switch housing on top. Some catalogues write it Kinetrol 023 100. The actuator label reads Code 023-100, serial 1634203, p.max 7 bar (100 psi), Made in England, built 2014. The spring unit is from 2015. Every CE label carries the Kinetrol address code GU9 9NU, UK.
Double acting or spring return?
The actuator on its own is double acting: in Kinetrol's code, 023 is the Model 02 ISO/DIN flange version and -100 means actuator, no spring. The 020-020 unit on top of it is the spring. Kinetrol uses the -020 ending for a Model 02 spring unit that returns clockwise. Fitted together, the spring turns the shaft back clockwise when the air is removed.
Is it ATEX rated?

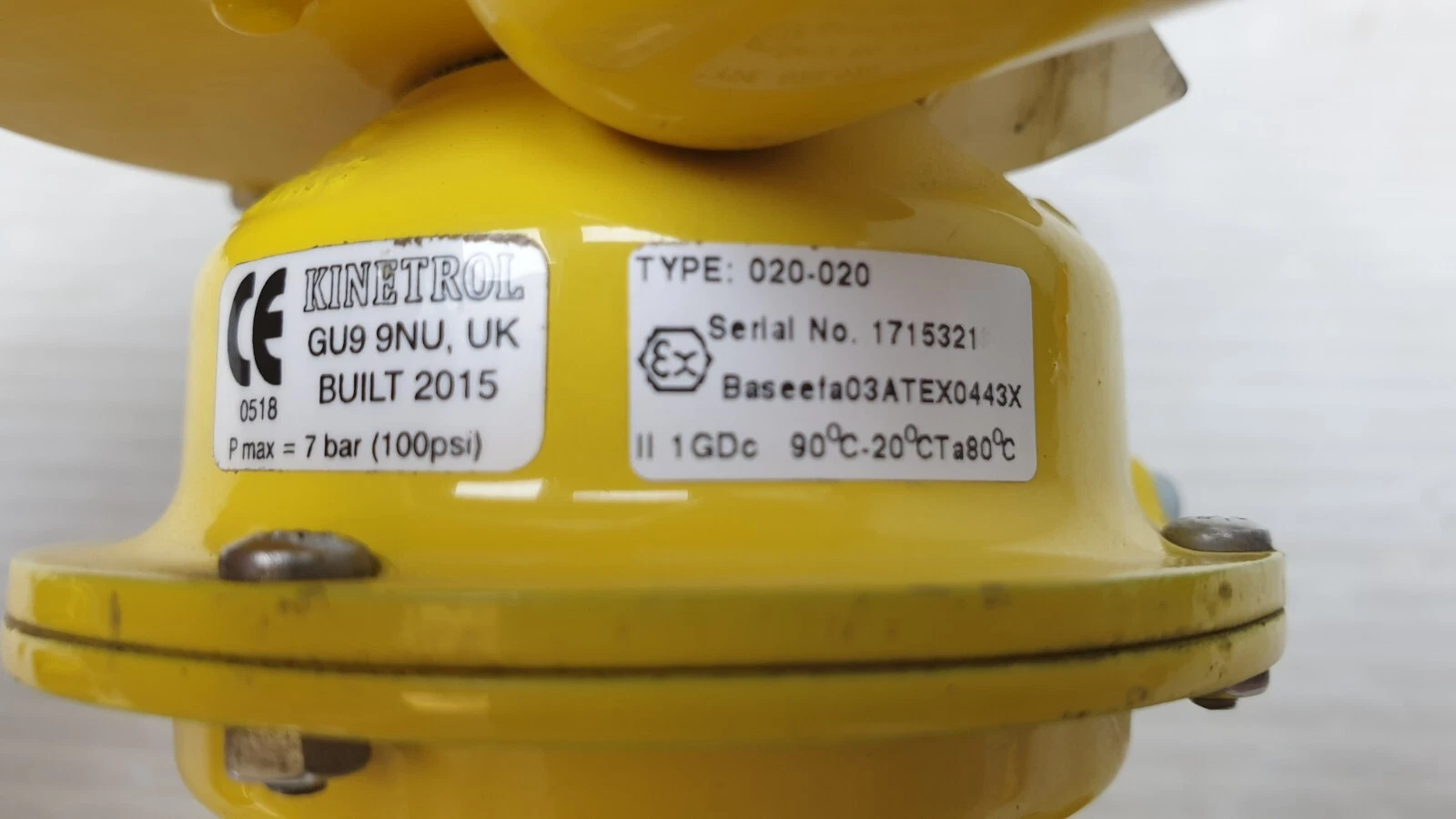

The spring unit has its own plate: TYPE 020-020, serial 1715321, Ex II 1GDc, Baseefa03ATEX0443X, 90 °C, Ta -20 to 80 °C. The actuator and top housing carry only CE labels, and the top cover says not to open it when energised. There is no code label on the top housing, so we can't say which switches are inside.
How much torque does the spring give?
Kinetrol lists 4.7 Nm (42 lbf in) at the start of the spring stroke and 3.7 Nm (33 lbf in) at the finish for the Model 02 spring unit.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
How does a Kinetrol pneumatic actuator work?
Air pushes on a single vane fixed to the output shaft and turns it through 80 to 100 degrees. Air on the other port turns it back, or the spring does.
Which way does the spring return?
Clockwise. Kinetrol's -020 ending is the clockwise spring unit; -030 is counter clockwise.
What does GU9 9NU on the label mean?
It is the UK postcode printed with the Kinetrol name on each CE label. It identifies the maker, not the model.
Is the top box a Kinetrol limit switch box?
It is a Kinetrol electrical housing with a cable entry and a red position indicator. The switch type inside is not on any label we can see.
What is the difference between Kinetrol 023-100 and 024-100?
Both are Model 02 double-acting actuators. 024 is the metric-thread version; 023 is the ISO/DIN flange version.
What air supply does it need?
Up to 7 bar (100 psi). Kinetrol sets its factory spring assemblies for balanced torque at 5.5 bar (80 psi).
