Photos show the actual item you will receive.
Product details
About this part
The Fuji Electric UG230H-LS4 Programmable Operation Display, 5.7" LCD Monochrome 24V is made by Fuji and identified by manufacturer part number UG230H-LS4.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Fuji Electric UG230H-LS4 Programmable Operation Display, 5.7" LCD Monochrome 24V.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Fuji), the part number (UG230H-LS4) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Fuji
- Part number
- UG230H-LS4
- Model
- UG230H-LS4
- Country of Origin
- Japan
- Series
- Fuji Electric POD UG230 series
- Display
- 5.7-inch monochrome LCD, 8 gradations + blink
- Resolution
- 320 × 240 dots
- Touch panel
- Analog resistive film
- Function switches
- 6
- Rated voltage
- 24 V DC (±10%)
- Nameplate current
- 0.6 A
- Power consumption
- 16 W or less
- Protection
- Front IP65 with gasket, rear IP20
- Operating temperature
- 0 to 50 °C
- Backup memory
- SRAM 128 KB, lithium coin cell
- Installed option
- UG230A-DCL extension unit (Ethernet, CF card, D-sub 25 PLC port)
- Weight
- Approx. 680 g; approx. 820 g with UG230A-DCL
- Hazardous location marking
- Division 2, Groups A, B, C, D; temperature code T5
- Approvals
- cUL, CE

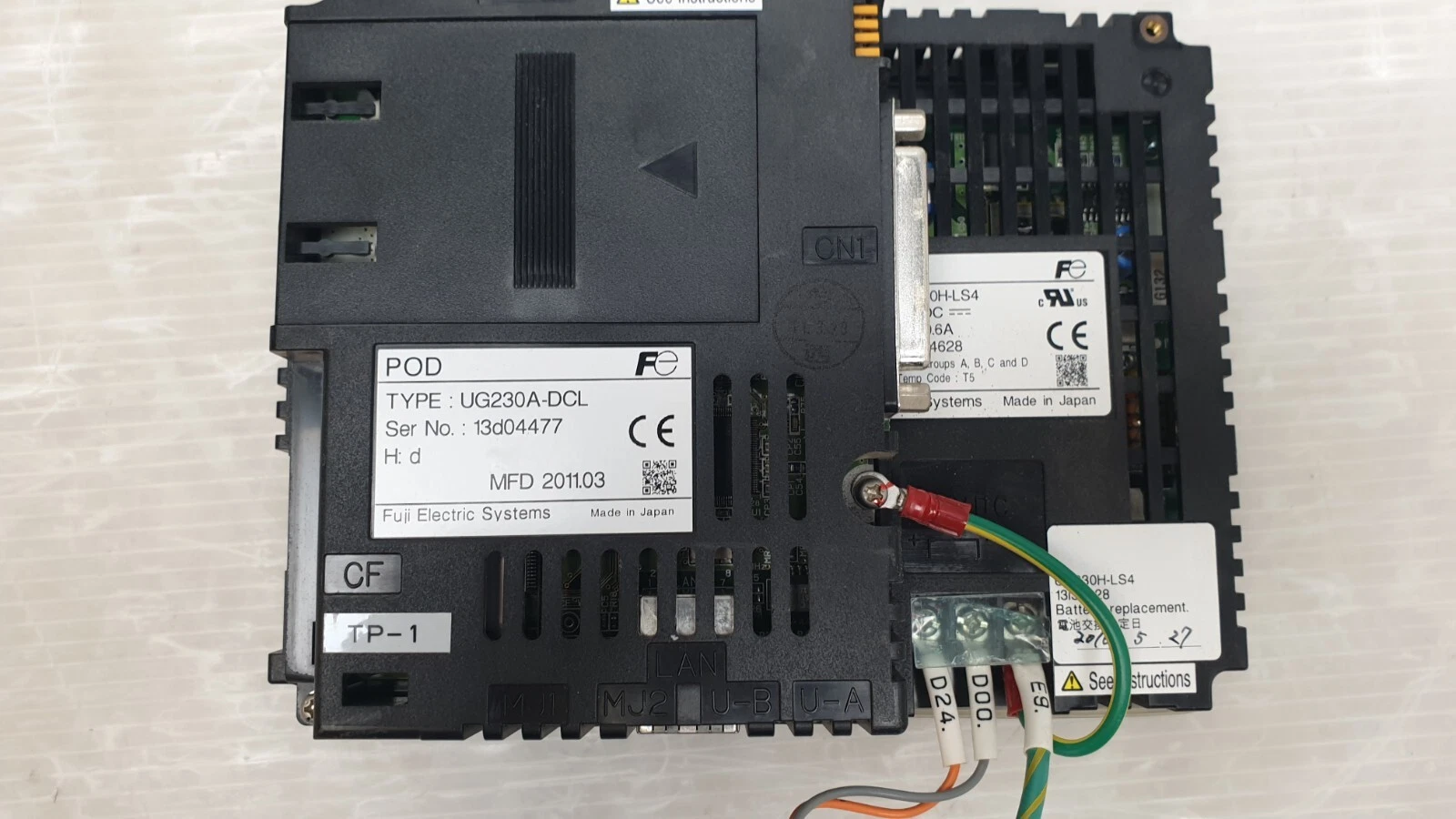

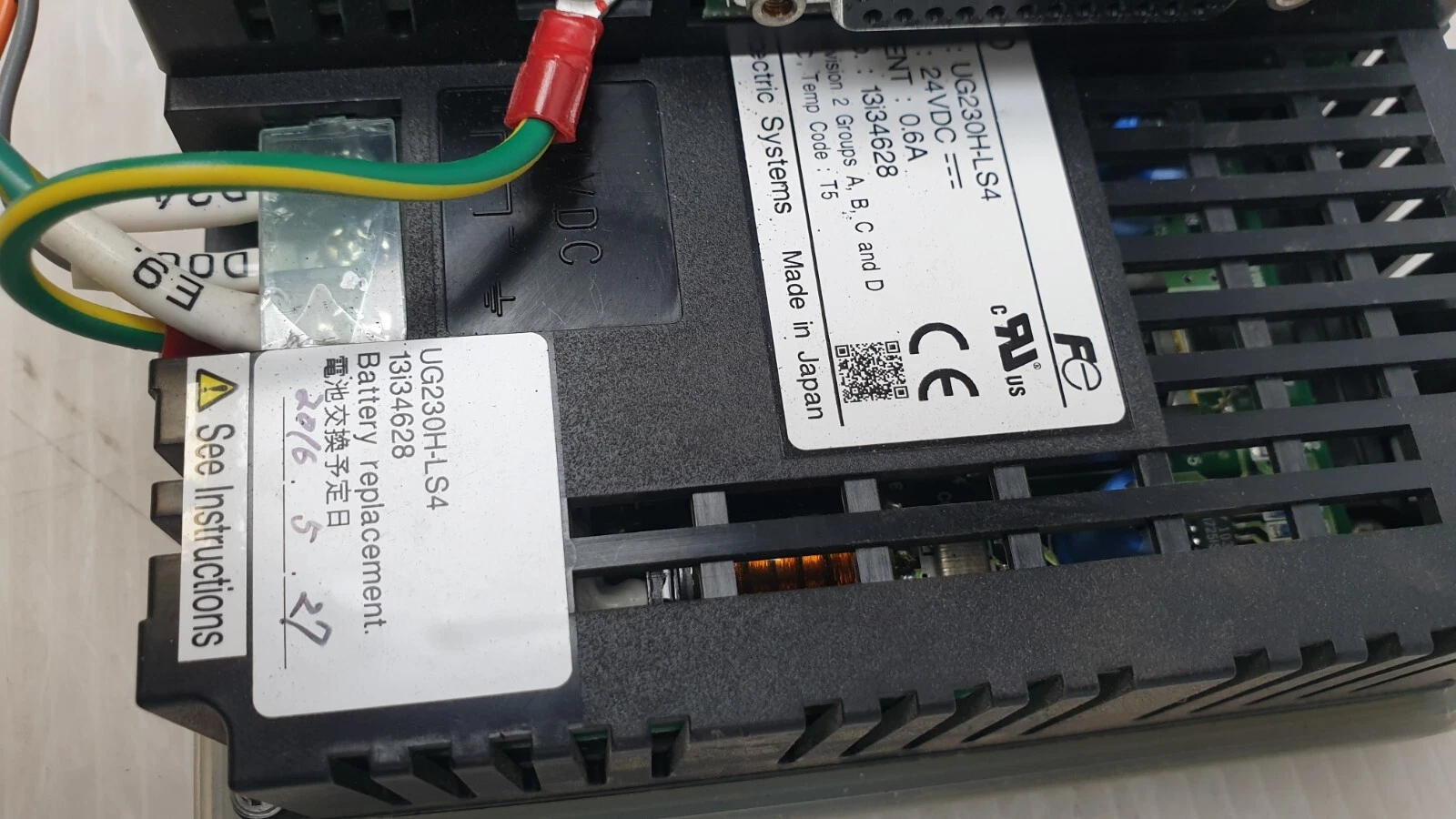

The Fuji Electric UG230H-LS4 is a 5.7-inch monochrome programmable operation display (POD), the operator touch panel of Fuji's UG230 series. It has a 320 × 240 dot monochrome LCD with 8 gradations, an analog resistive touch panel, six function switches and a 24 V DC supply. The nameplate gives 24 V DC, 0.6 A, cUL and CE marks, a Division 2, Groups A, B, C and D hazardous-location marking with temperature code T5, and Made in Japan. This used unit has a UG230A-DCL extension unit installed on its back.
What does the UG230A-DCL add?

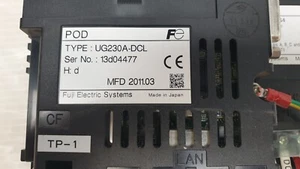

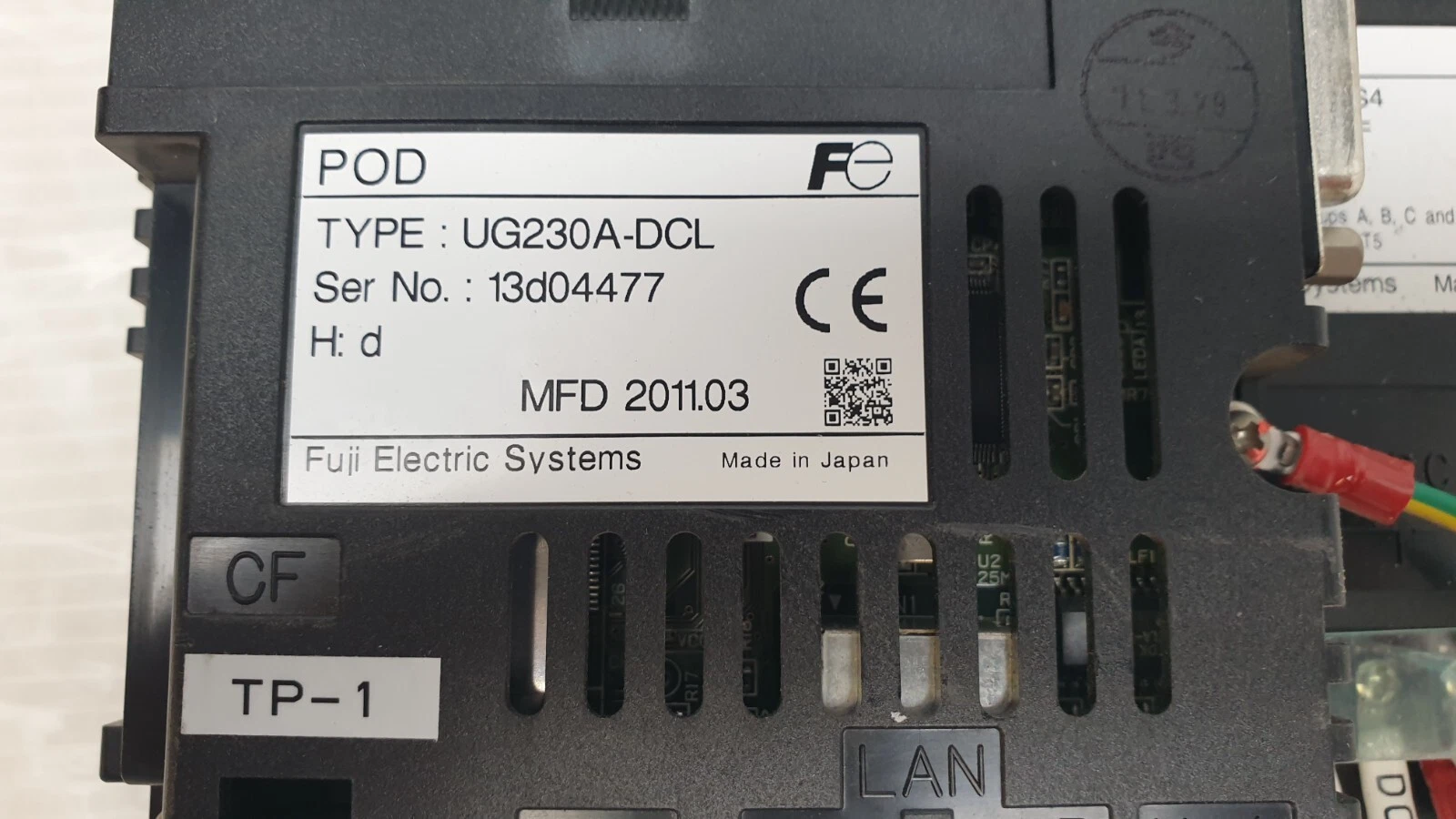

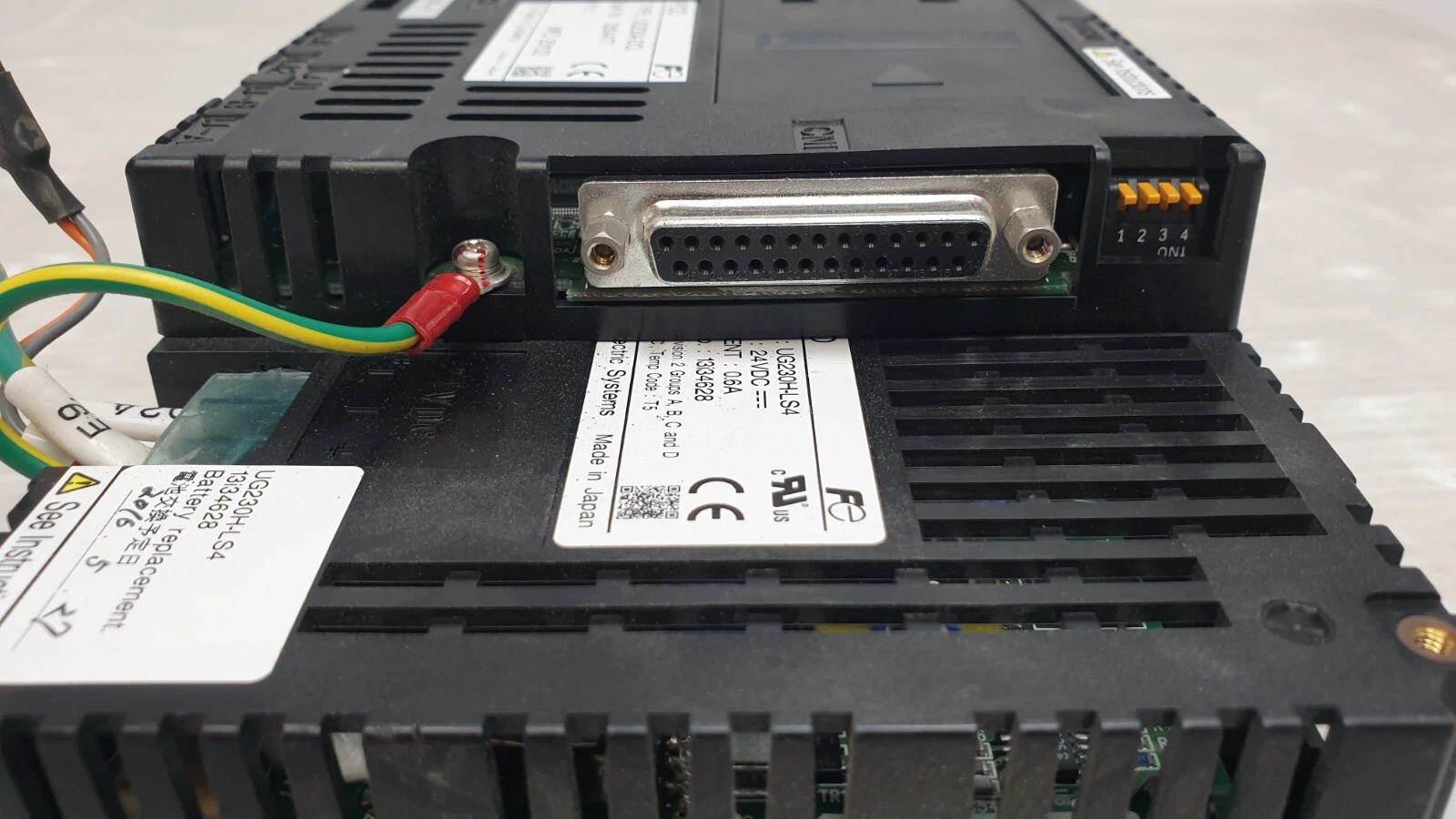

Fuji's UG230A-DCL extension unit adds a 100BASE-TX/10BASE-T Ethernet port, a CF card interface and a 25-pin D-sub PLC communication port, powered from the POD. The unit in the photos carries the UG230A-DCL label, a CF slot marked TP-1 and the 25-pin D-sub. With it fitted, Fuji gives the weight as about 820 g.
How is it mounted and powered?
The UG230 is flush-mounted in a panel cut-out. The front is IP65 when used with its waterproof gasket; the rear case is IP20. It runs on 24 V DC ±10%, draws 16 W or less, and operates at 0 to 50 °C.
What condition is this display in?

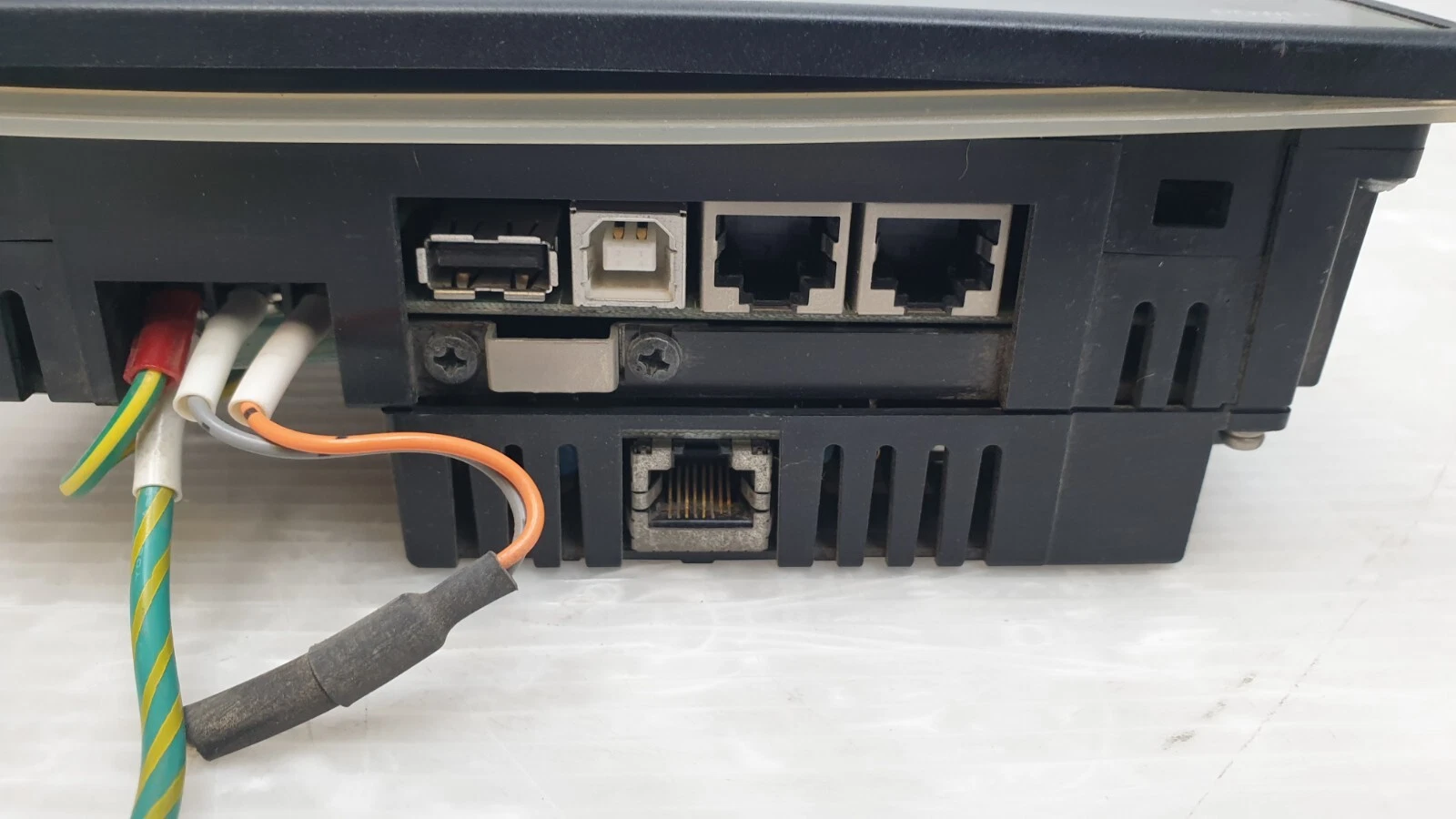

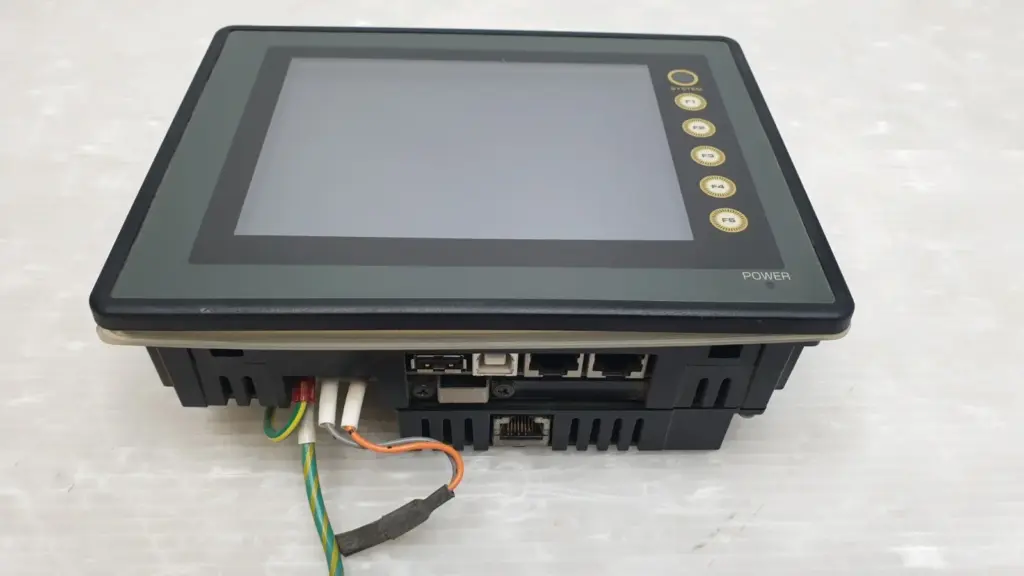

Used. The photos show the front bezel and screen, the rear with USB and RJ-45 ports, and short power and earth leads still attached to the terminals. A battery label on the rear gives a replacement date of 2016.5.27.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What screen does the Fuji UG230H-LS4 have?
A 5.7-inch monochrome LCD, 320 × 240 dots, with an analog resistive touch panel.
What power supply does it need?
24 V DC ±10%; Fuji rates consumption at 16 W or less, and the nameplate gives 0.6 A.
Is the UG230A-DCL extension unit included?
The unit in the photos has a UG230A-DCL installed, which adds Ethernet, a CF card slot and a 25-pin D-sub PLC port.
What is the difference between UG230H-LS, SS and TS?
Display type: LS is monochrome LCD, SS is STN colour and TS is TFT colour. All three are 5.7-inch, 320 × 240.
