Photos show the actual item you will receive.
Product details
About this part
The FESTO MYH-5/3G-M5-L-LED SOLENOID VALVE is made by Festo and identified by manufacturer part number MYH-5/3G-2,3-L-LED.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × FESTO MYH-5/3G-M5-L-LED SOLENOID VALVE.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Festo), the part number (MYH-5/3G-2,3-L-LED) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Festo
- Part number
- MYH-5/3G-2,3-L-LED
- Model
- MYH-5/3G-2,3-L-LED
- Country of Origin
- Germany
- Festo part number
- 34311
- Valve function
- 5/3-way, mid position closed
- Working pressure
- 2–8 bar
- Standard nominal flow rate
- 130 l/min
- Nominal size
- 2.3 mm
- Pneumatic connection
- M5
- Coil
- 24 V DC, 1.8 W, continuous duty (duty cycle 100 percent)
- Switching time
- On 8 ms, off 38 ms
- Design
- Piston slide, piloted, manual override
- Protection class
- IP40 with plug socket
- Medium / ambient temperature
- −5 to 50 °C
- Weight
- 105 g
- Materials
- Die-cast aluminium housing, NBR seals

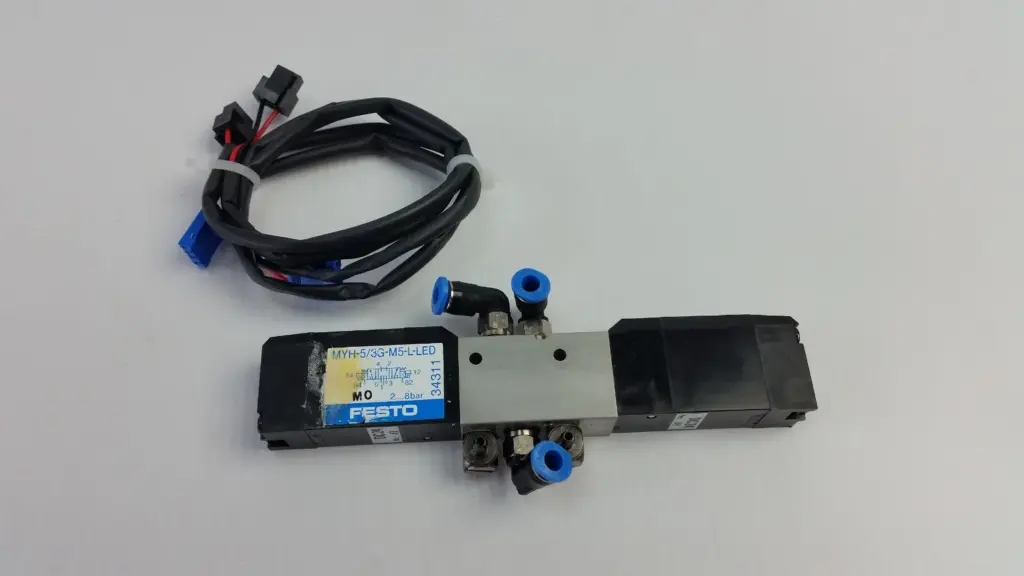

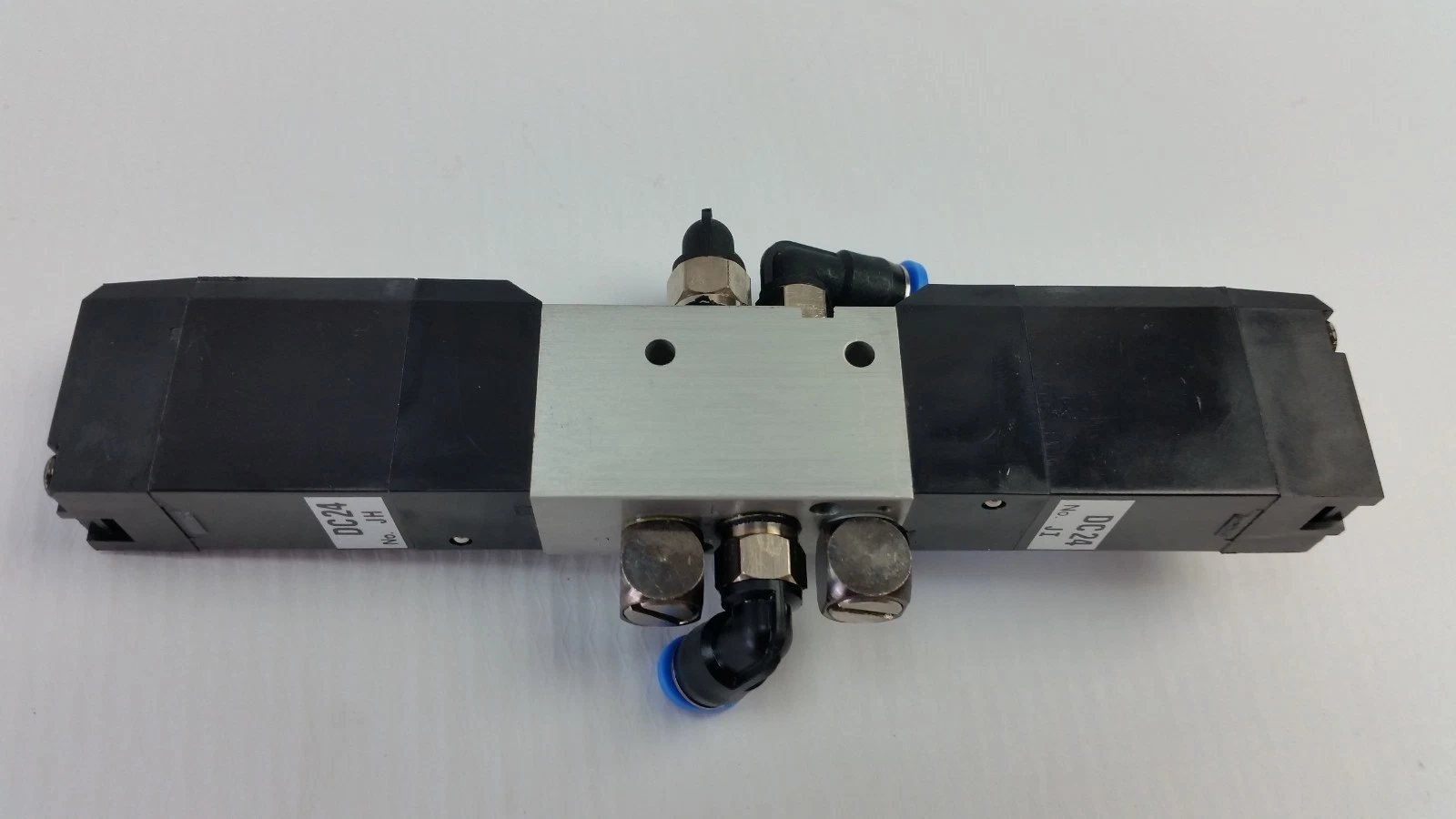

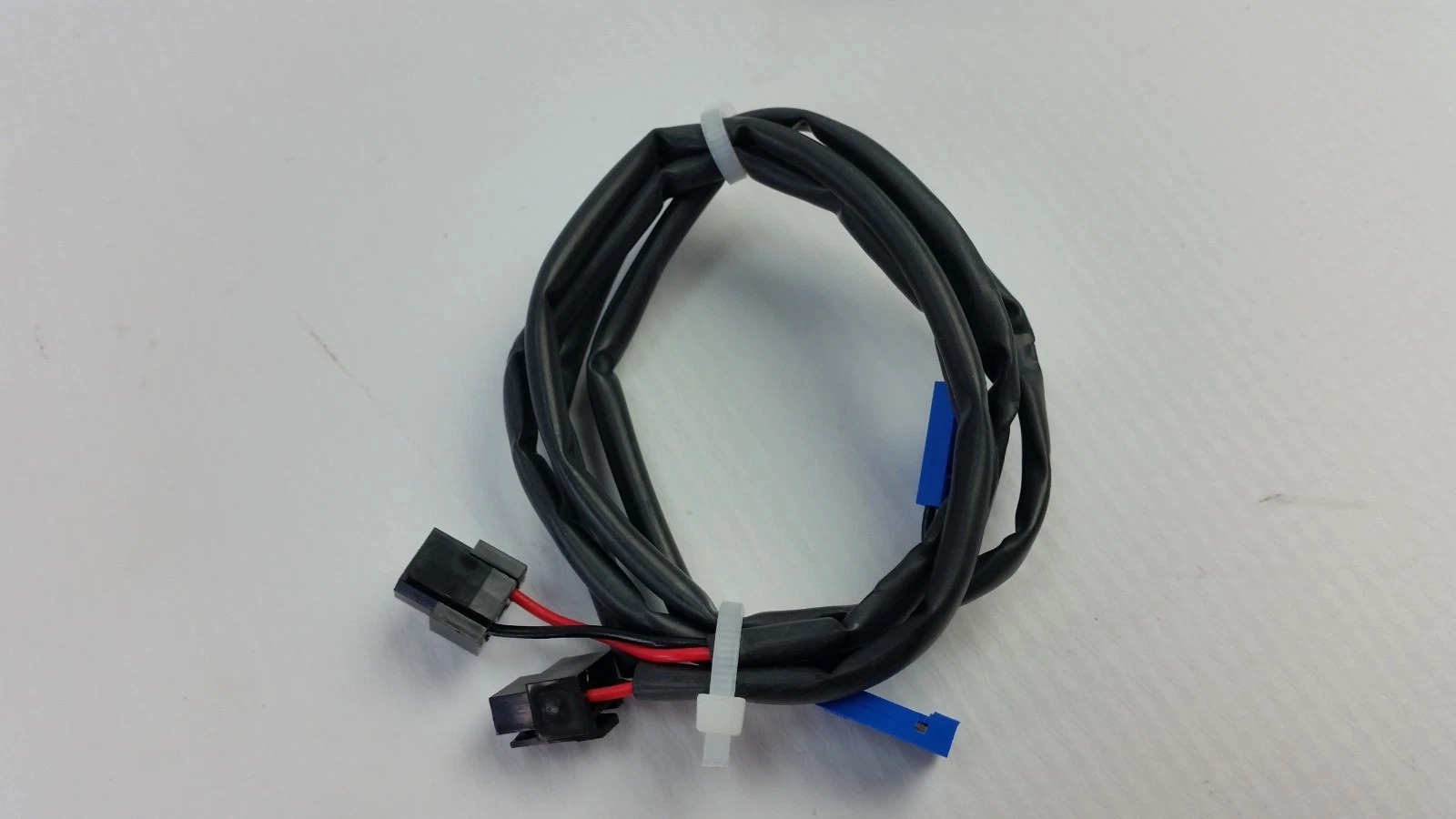

The Festo MYH-5/3G-M5-L-LED (part number 34311) is a mini-pneumatic 5/3-way solenoid valve with the mid position closed, M5 ports and LED coil indicators. It works at 2 to 8 bar, flows 130 l/min at standard nominal flow, and has two 24 V DC coils rated 1.8 W with manual overrides. This used unit is fitted with blue push-in fittings and a connection cable. Our product records list it as a part from a Brooks-PRI FIXLOAD 25, a 300 mm wafer load port. Buyers also search it as MYH-5/3G-M5-L-LED 34311 or MYH53GM5LLED.
How does the 5/3 closed-centre valve work?

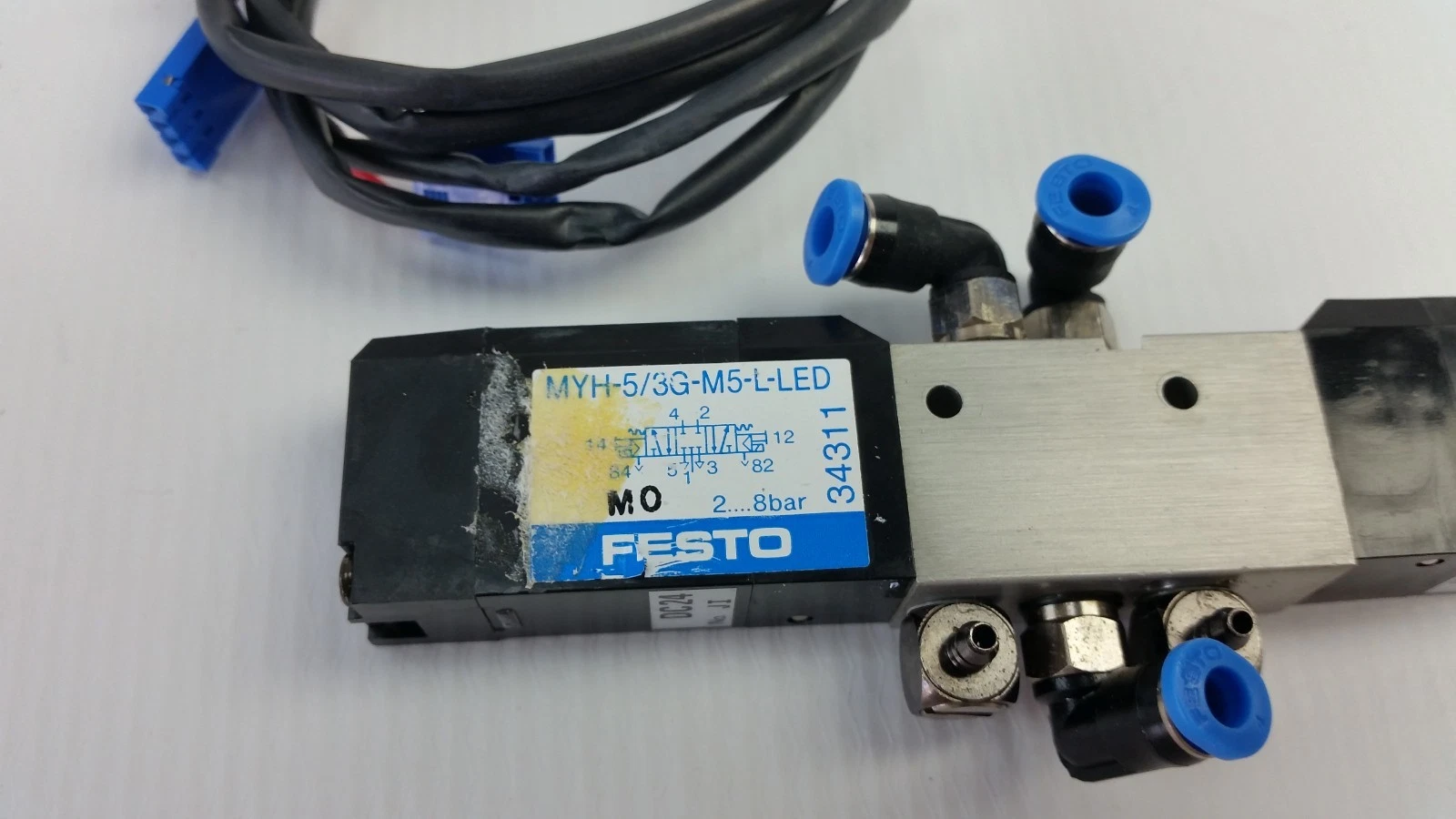

Energising coil 14 or coil 12 connects port 1 to port 4 or port 2; with both coils off the valve springs to its centre position, in which all ports are closed. Ports 3 and 5 are the exhausts, and 84 and 82 are the pilot exhausts, as shown by the symbol on the valve label.
What condition is this valve in?

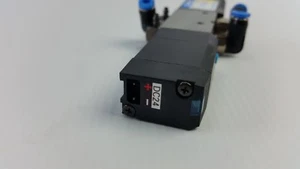

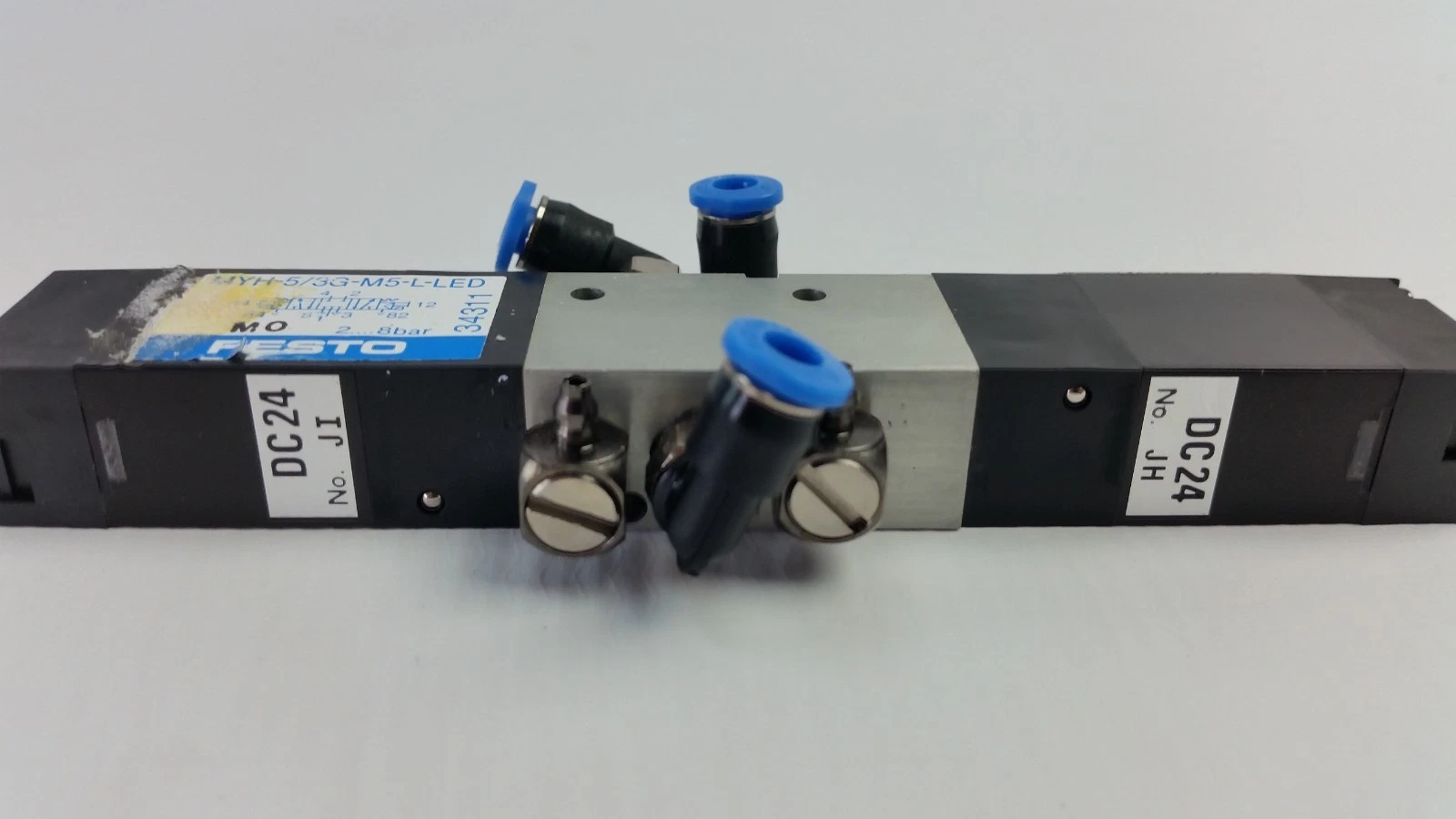

Used. The photos show the Festo label with worn edges, DC24 marked on both coil ends, push-in fittings on the working ports and a cable with plugs.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What voltage are the coils of the Festo MYH-5/3G-M5-L-LED?
24 V DC, 1.8 W each; the coil ends are marked DC24.
What is the centre position of this valve?
Closed. With both coils off, all ports are blocked (the G in 5/3G).
What pressure range does it work at?
2 to 8 bar, per the valve label and Festo's data sheet.
What is the Festo part number?
34311, printed on the valve label next to the type code.
