Product details

About this part

The Analog Devices LT6106IS5#TRMPBF High Side Current Sense Amplifier, TSOT-23, Reel of 500 is made by Analog Devices and identified by manufacturer part number LT6106IS5#TRMPBF.

This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.

Condition

This item is listed as New. Factory new, in original packaging.

The photos are part of the description — check them for labels, connectors, markings and any visible wear.

What's included

1 × Analog Devices LT6106IS5#TRMPBF High Side Current Sense Amplifier, TSOT-23, Reel of 500.

Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.

Identification & compatibility

Check the manufacturer (Analog Devices), the part number (LT6106IS5#TRMPBF) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.

Price match

Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.

Important information

Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.

Brand
Analog Devices
Part number
LT6106IS5#TRMPBF
Model
LT6106IS5#TRMPBF
Manufacturer
Analog Devices (Linear Technology)
Type
High side current sense amplifier, unidirectional
Supply range
2.7 V to 36 V (44 V absolute max)
Offset voltage
250 µV max
Input bias current
40 nA max
Supply current
65 µA typ at V+ = 12 V
Output
Current output, 1 mA max; gain set by two resistors
PSRR
106 dB min
Package
5-lead TSOT-23 (ThinSOT, 1 mm)
Packing
Mini tape and reel (TRM), 500 pieces, lead-free (PBF)
Moisture sensitivity (label)
MSL 1, peak 260°C, e3
Date code / lot (label)
2119 / AU49234.18
Origin (label)
Assembly Malaysia, diffusion USA

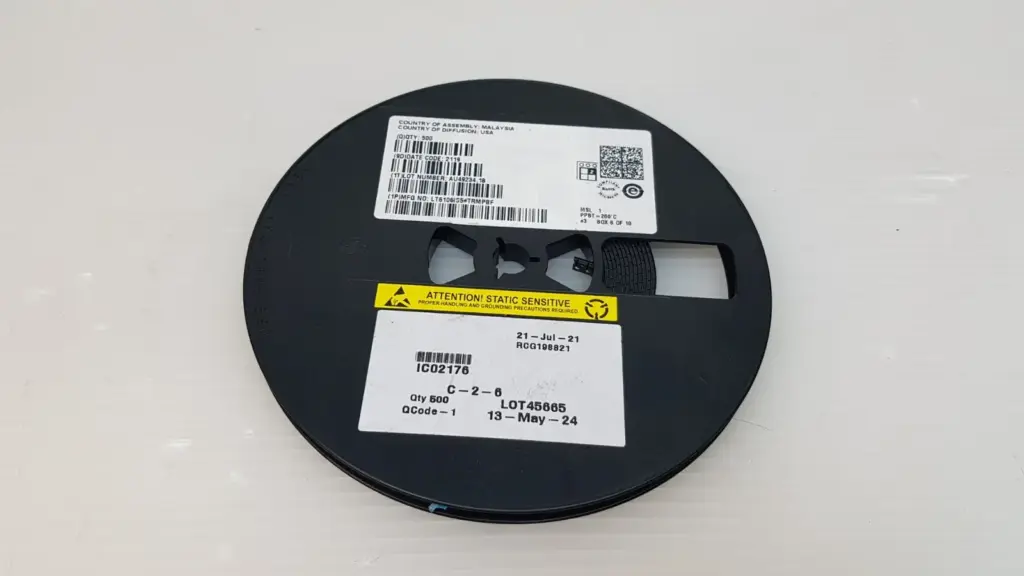

LT6106IS5#TRMPBF on a 500-piece mini reel, date code 2119. Analog Devices (ex Linear Technology) high side current sense amplifier. 36 V, 250 µV max offset, 5-lead TSOT-23. Assembled in Malaysia, diffused in the USA.

How does the LT6106 sense current?

It reads the small voltage across a shunt resistor on the high side of the supply. It turns that voltage into an output current, which one resistor to ground turns back into a voltage. So a few millivolts riding on up to 36 V become a ground-referenced signal your ADC can read. Two resistors set the gain, with better than 1% accuracy.

Why does a low offset matter?

With 250 µV max offset and 40 nA max bias current, you can use a small shunt. Less shunt means less power lost in it. Typical uses from the datasheet: battery monitoring, motor control, lamp monitoring and overcurrent detection.

What does #TRMPBF mean?

TRM is Linear's mini tape and reel, 500 pieces. PBF is the lead-free finish. The S5 is the 5-lead TSOT-23 (ThinSOT, 1 mm high). The reel label reads (Q) 500, (9D) 2119, lot AU49234.18, MSL 1, peak 260°C, e3, box 6 of 10.

Ships from
Israel
Tracking
Included on every order

Import duties and taxes may apply in your country and are paid by the buyer on delivery.

Returns
Not accepted

Return terms differ from item to item — this item's own policy is shown above.

Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.

Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.

Read the full returns & warranty policy

Questions about this part

How many pieces are on the reel?

500. The label reads (Q) 500, and TRM is Linear's 500-piece mini reel.

High side vs low side current sensing: which is the LT6106?

High side. The shunt sits between the supply and the load, so the load keeps its ground.

How do I set the gain?

With two external resistors: one at the input, one from the output to ground.

What is the difference between LT6106CS5, LT6106IS5 and LT6106HS5?

Same amplifier and package, different temperature grade. C is 0 to 70°C and H is -40 to 125°C per the datasheet. This reel is the I grade.

Does the reel need baking before reflow?

No. The label states MSL 1, peak 260°C.
