About this part
The Agilent E3120-66512 Pin Board PCB Assembly with 12 Sanyu Switch Relays is made by Agilent and identified by manufacturer part number E3120-66512.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Agilent E3120-66512 Pin Board PCB Assembly with 12 Sanyu Switch Relays.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Agilent), the part number (E3120-66512) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Agilent
- Part number
- E3120-66512
- Model
- E3120-66512
- Manufacturer
- Agilent
- Type
- Pin board, relay switching PCB assembly (plug-in card)
- Relays
- 8 x Sanyu URT-P12912GTN-04, 4 x Sanyu URM-P22912GTN-04
- Relay designators

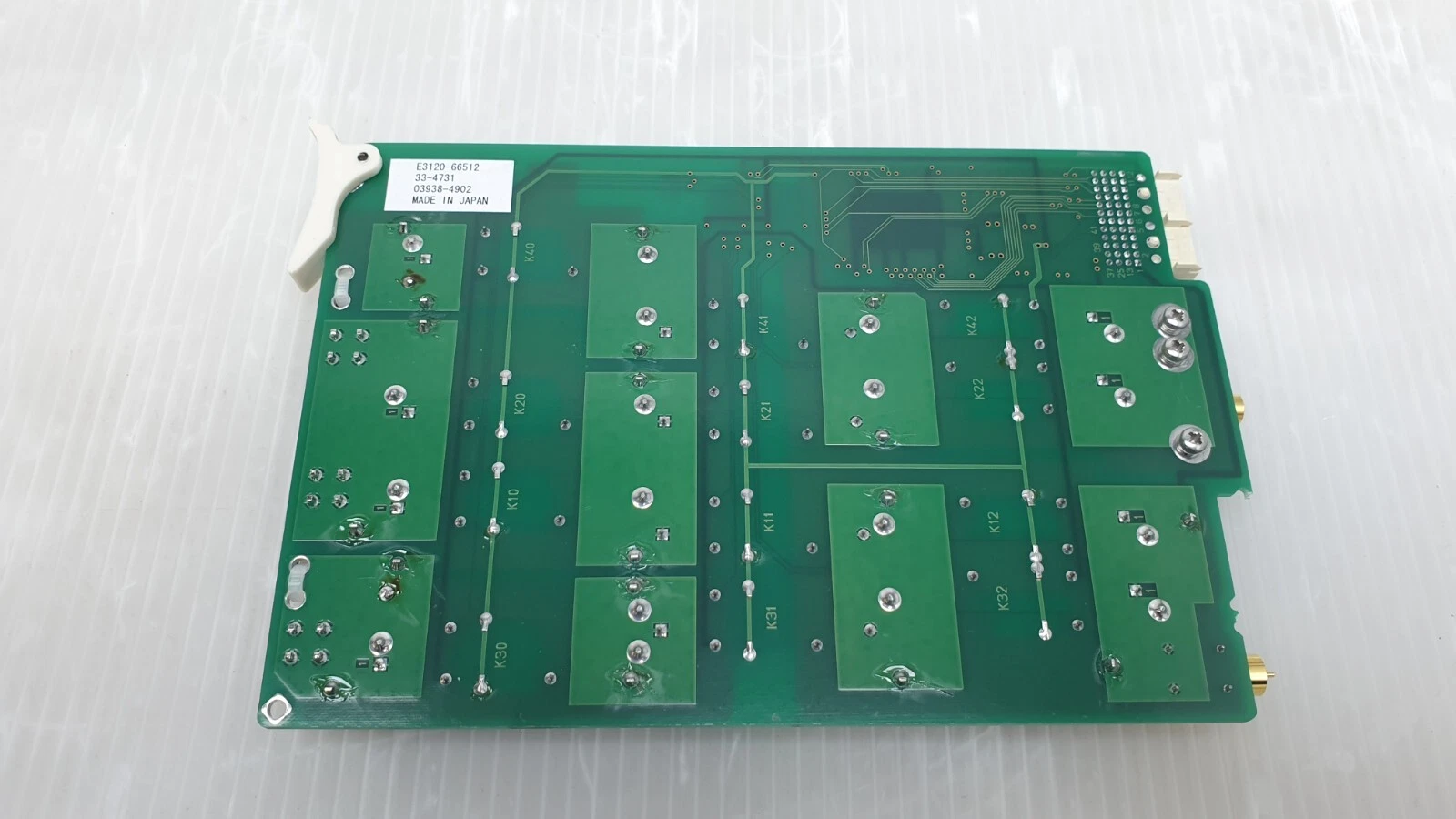

- K10-K12, K20-K22, K30-K32, K40-K42
- Shielding
- Aluminum shield boxes between relay rows
- Connectors
- Gold-plated coax connectors on the edges, multi-row backplane connector
- Logic
- QFP IC (U5), two SOIC ICs (U1, U2), test point TP1 GNDC
- Front silkscreen

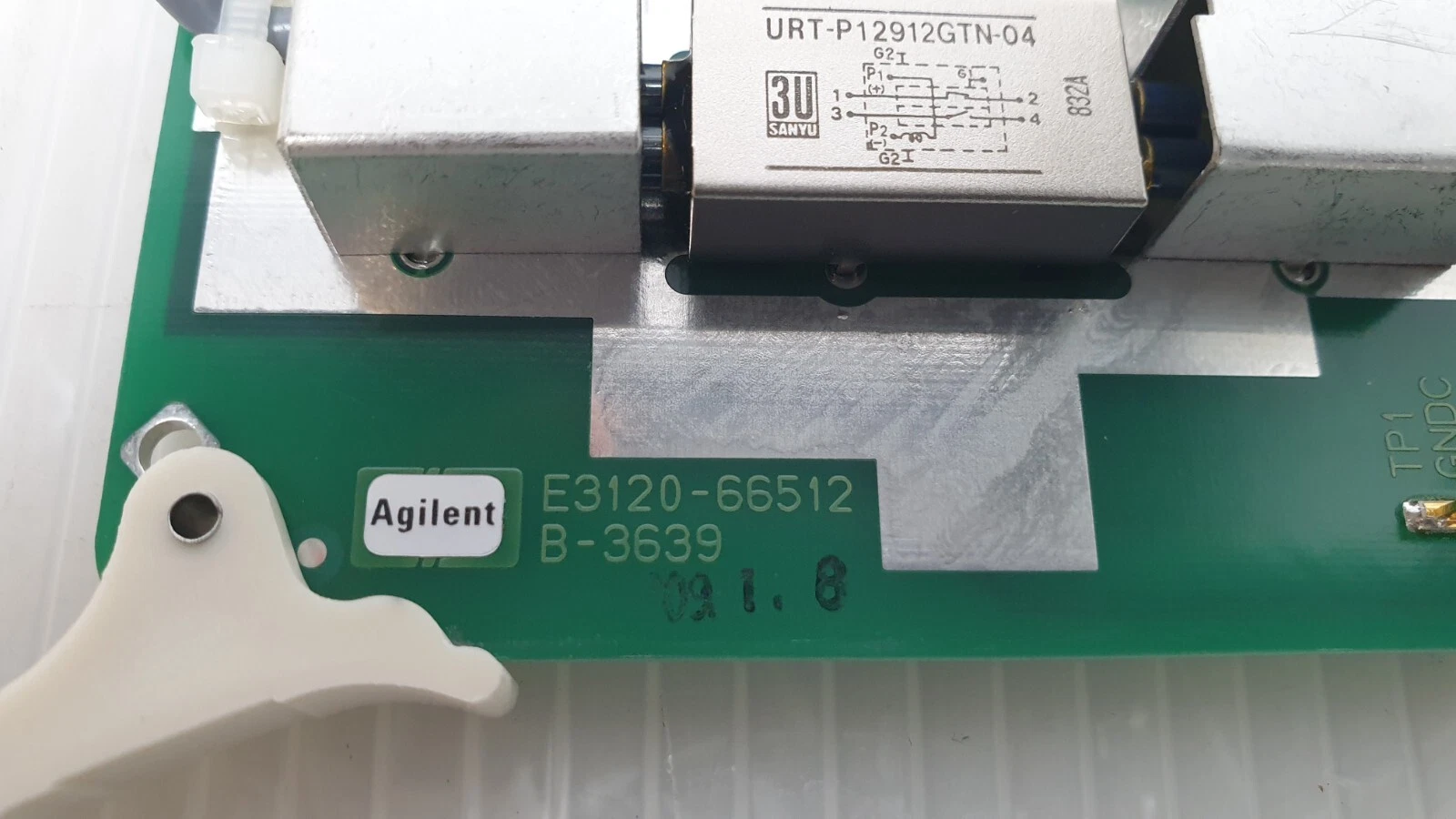

- Agilent E3120-66512, B-3639
- Back label

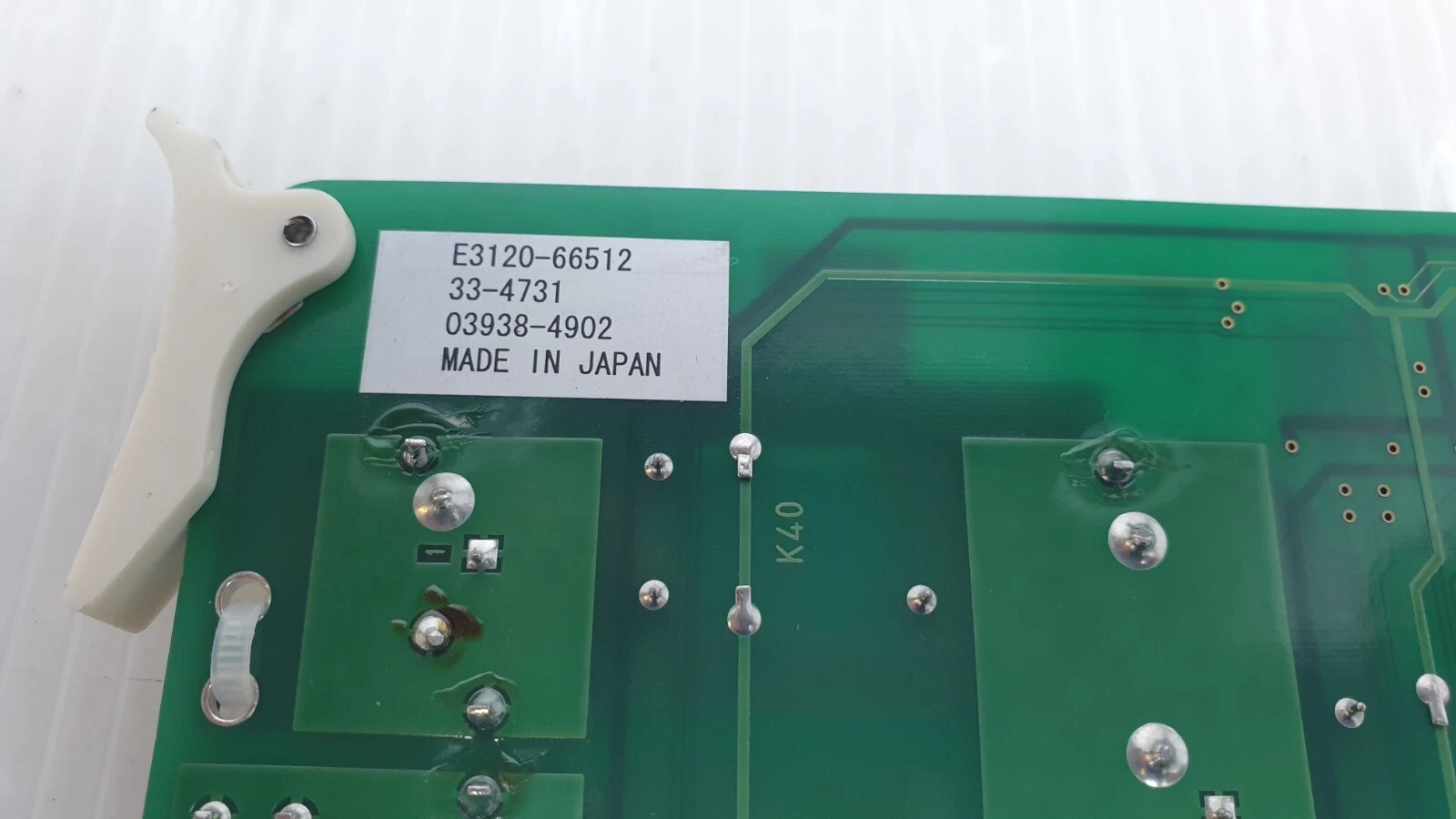

- E3120-66512, 33-4731, 03938-4902, Made in Japan
Agilent E3120-66512, a plug-in pin board that switches signals through twelve Sanyu Switch relays. The relays sit in rows between aluminum shield boxes, with gold coax connectors on the edges and a multi-row backplane connector at the other end. Also searched as E312066512 and E3120 66512.
What is on the E3120-66512 board?

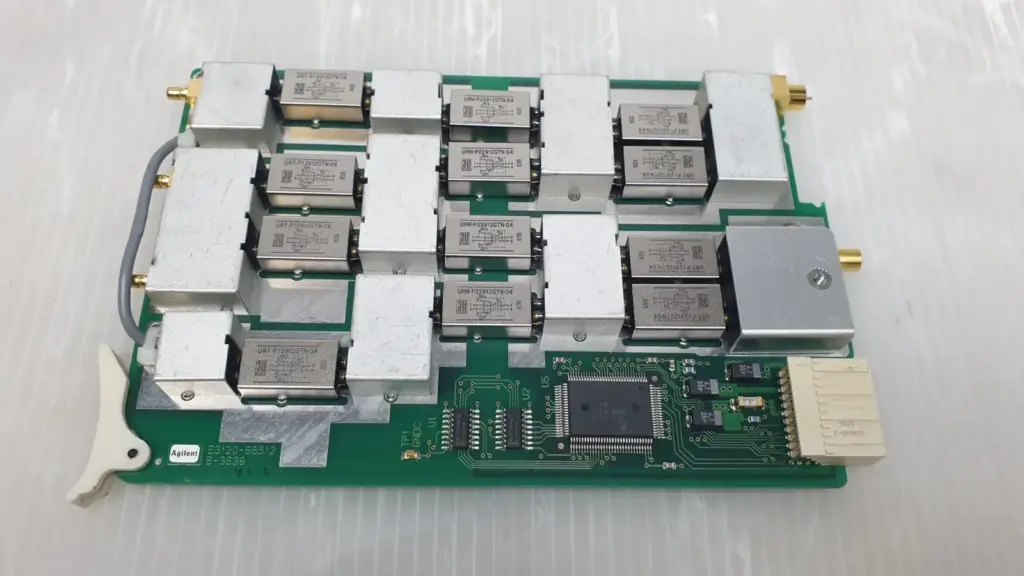

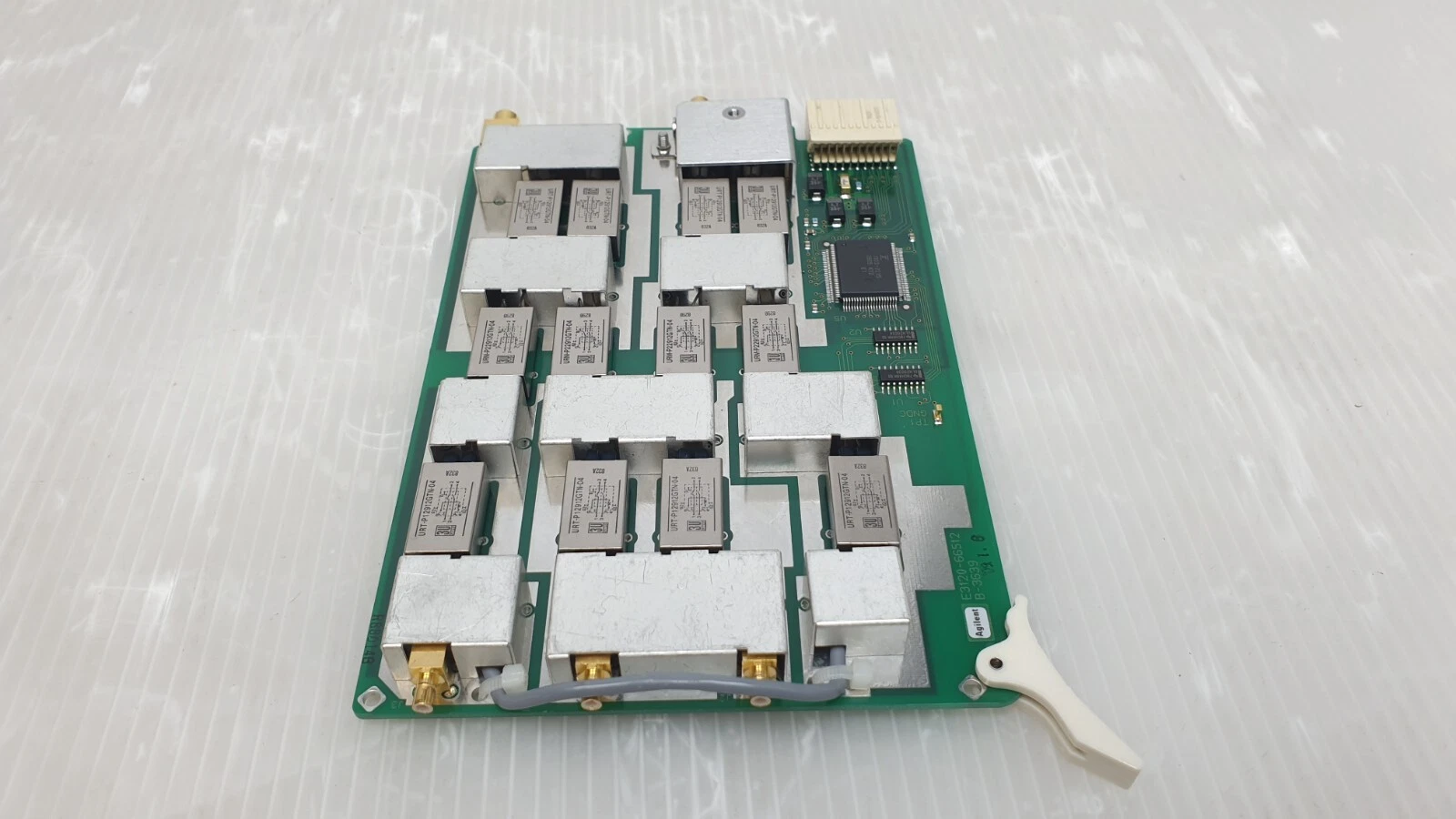

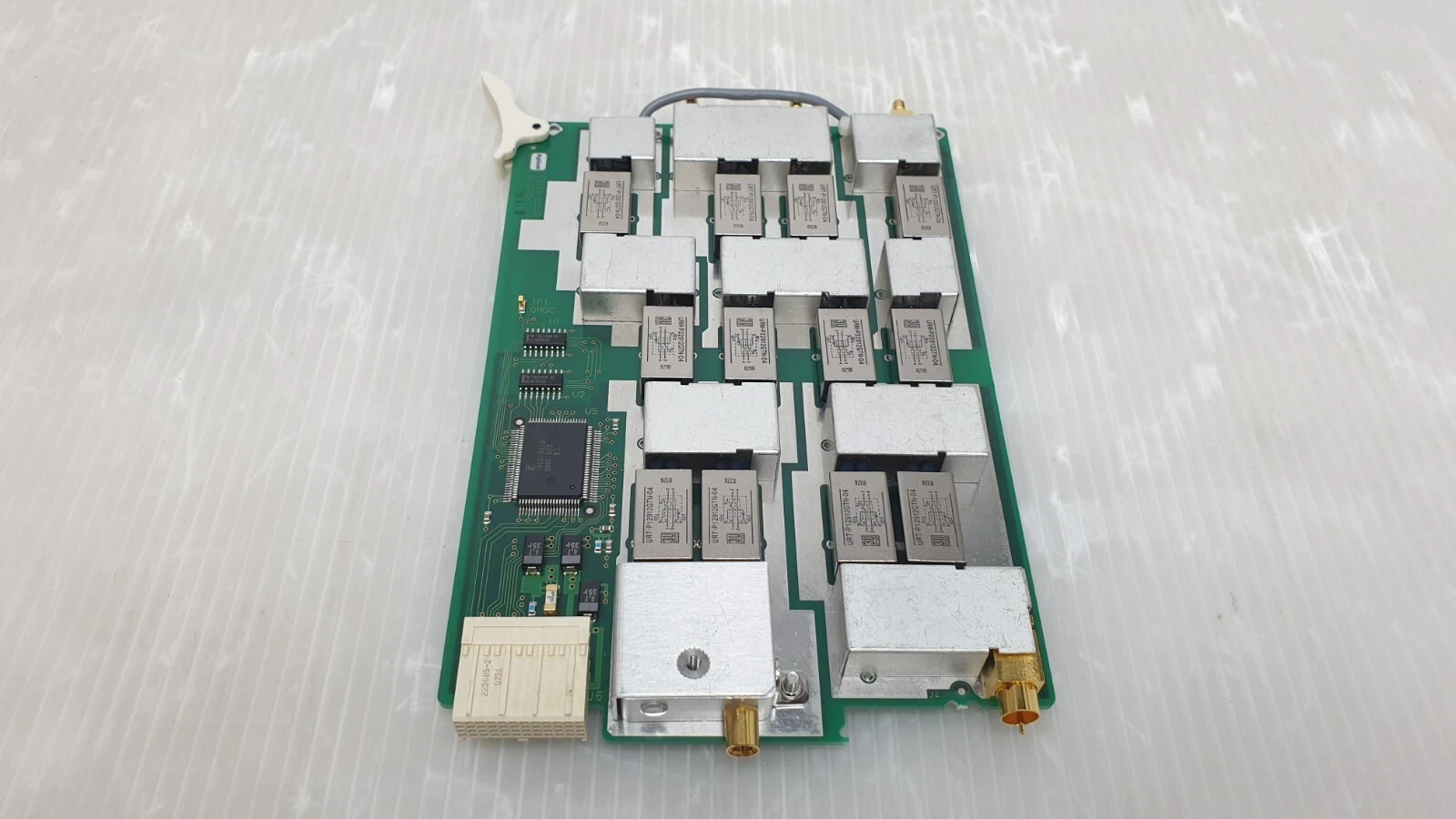

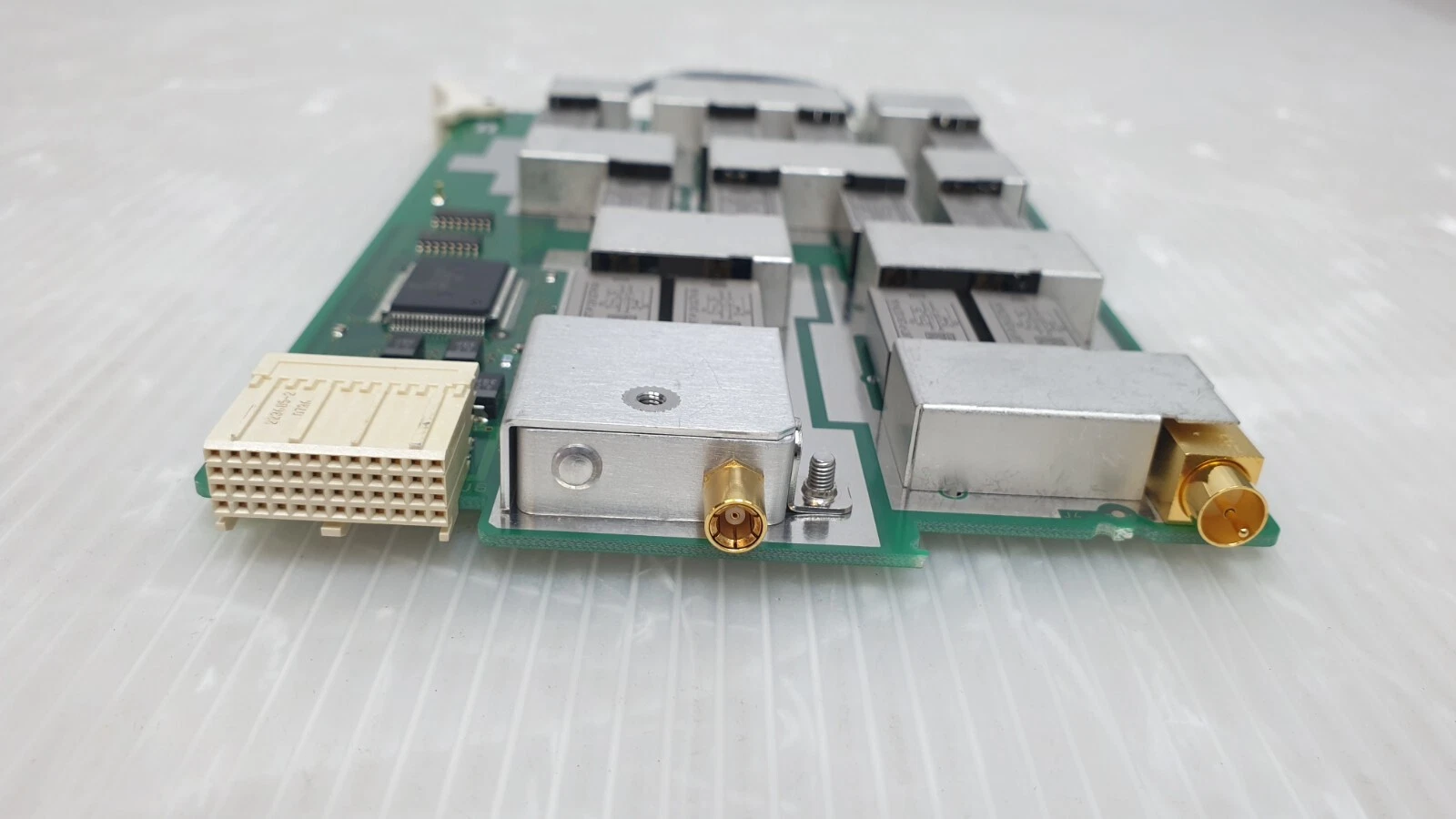

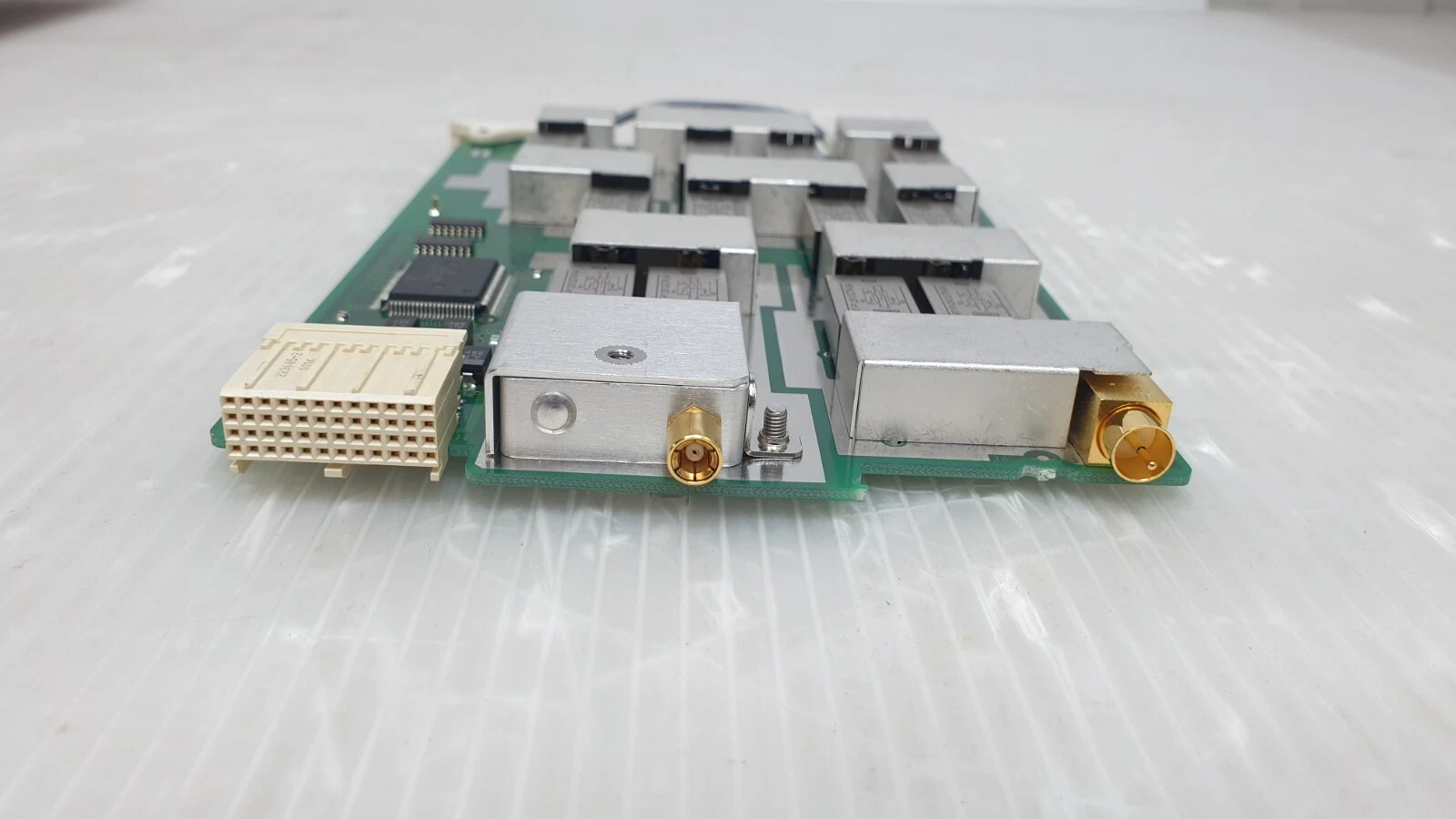

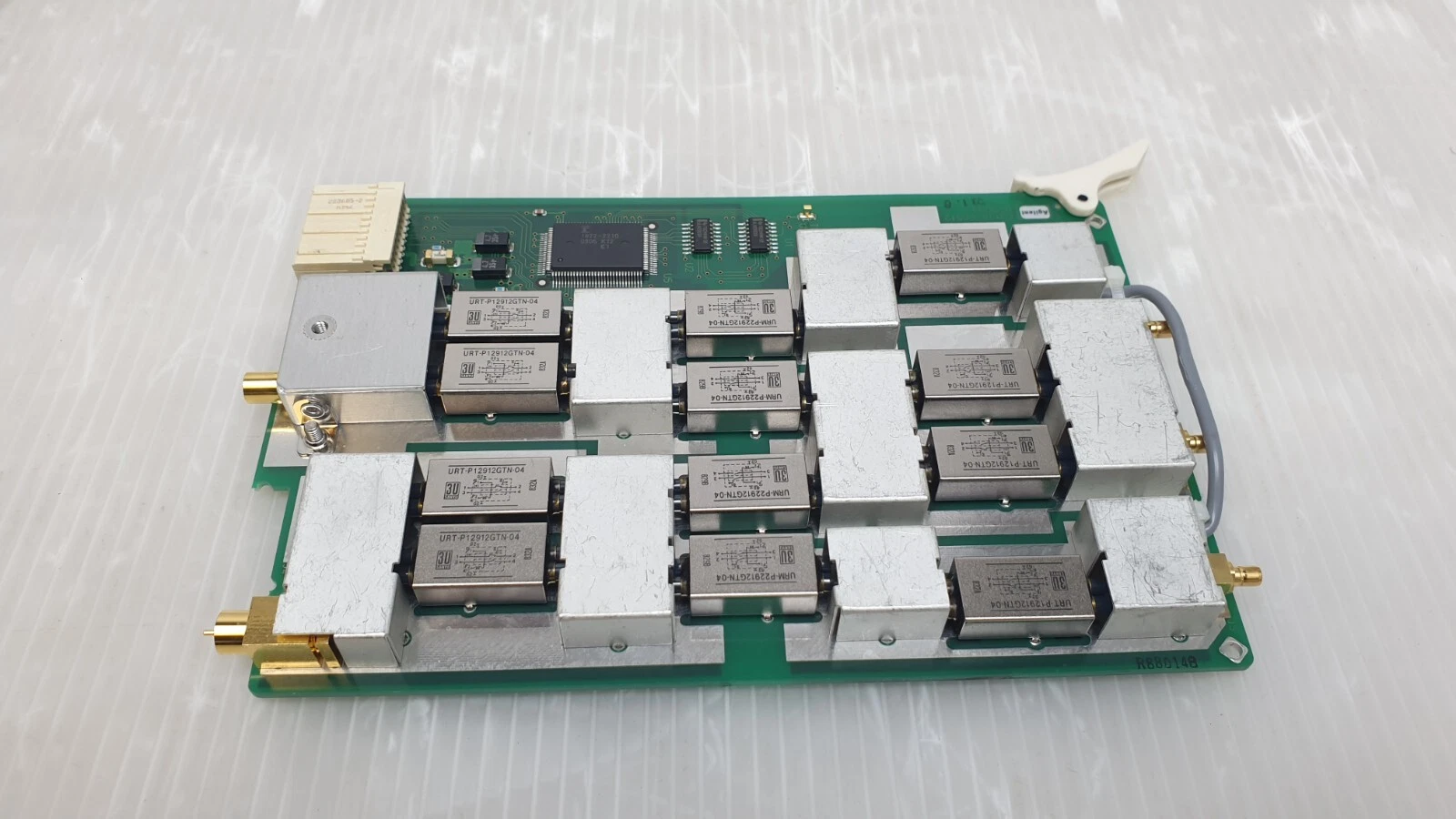

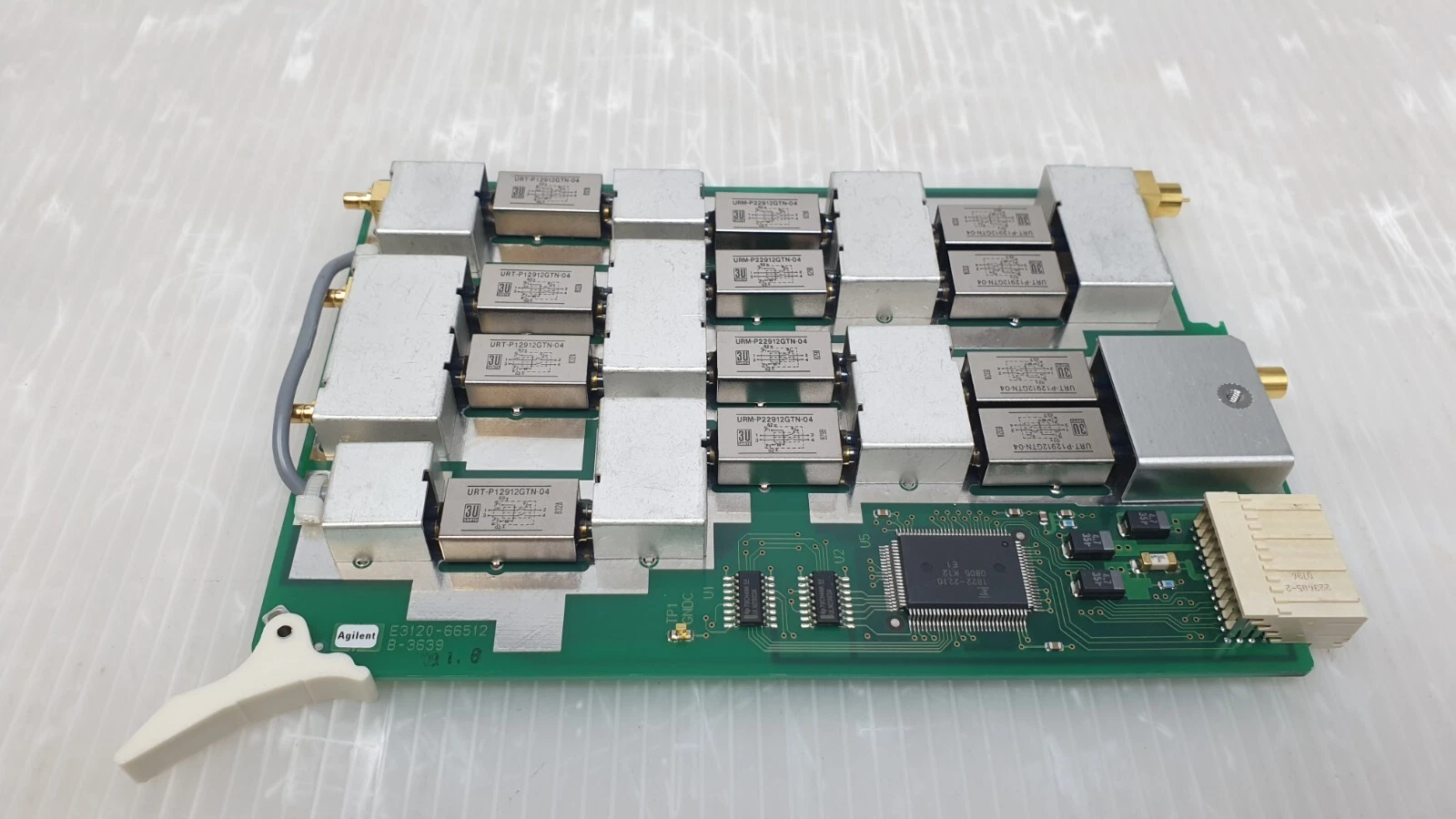

Eight Sanyu URT-P12912GTN-04 and four URM-P22912GTN-04 relays, designators K10 to K42 on the back. A logic section with one large QFP chip (U5) and two smaller ICs (U1, U2) drives them. A short gray coax jumper links two shielded bays, and a white lever helps pull the card from its slot.
Which Agilent instrument does it fit?
We could not find an Agilent document for E3120-66512, so we do not name a system. The "-66512" suffix is Agilent's style for a PC assembly. Match the number on your old card: E3120-66512 is silkscreened on the front and printed on the back label.
What does a relay board like this do?
It connects and disconnects signal paths on command, so one instrument can reach many test points. The shield boxes around each relay pair keep the switched lines apart.
