Product details
About this part
The 3Z81-000001-V3 TOKYO ELECTRON Electronic Circuit Board is made by TOKYO ELECTRON and identified by manufacturer part number 3Z81-000001-V3.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × 3Z81-000001-V3 TOKYO ELECTRON Electronic Circuit Board.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (TOKYO ELECTRON), the part number (3Z81-000001-V3) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- TOKYO ELECTRON
- Part number
- 3Z81-000001-V3
- Model
- 3Z81-000001-V3
- Country of Origin
- Japan
- Board designation
- TDB113-1/IO1
- FPGA
- Xilinx Spartan-6 XC6SLX25
- Front-edge connectors
- 2 × RJ-45-style modular jacks
- Board-to-board connectors
- 2 × two-row high-density connectors, plus one smaller multi-pin connector
- Configuration
- 8-position DIP switch (DSW1), push button, jumpers
- PCB marking
- TEC-1VM, 94V-0, Tokyo Electron Ltd., Made in Japan
The Tokyo Electron 3Z81-000001-V3 is a double-sided circuit board labelled TDB113-1/IO1, built around a Xilinx Spartan-6 XC6SLX25 FPGA. The board carries Tokyo Electron Ltd. markings and "Made in Japan" on the silkscreen, and is offered used. Buyers also search this part as 3Z81000001V3 or TDB113-1.
How do I identify this board?

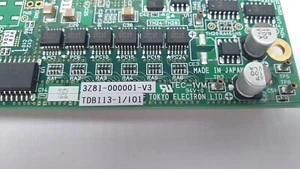

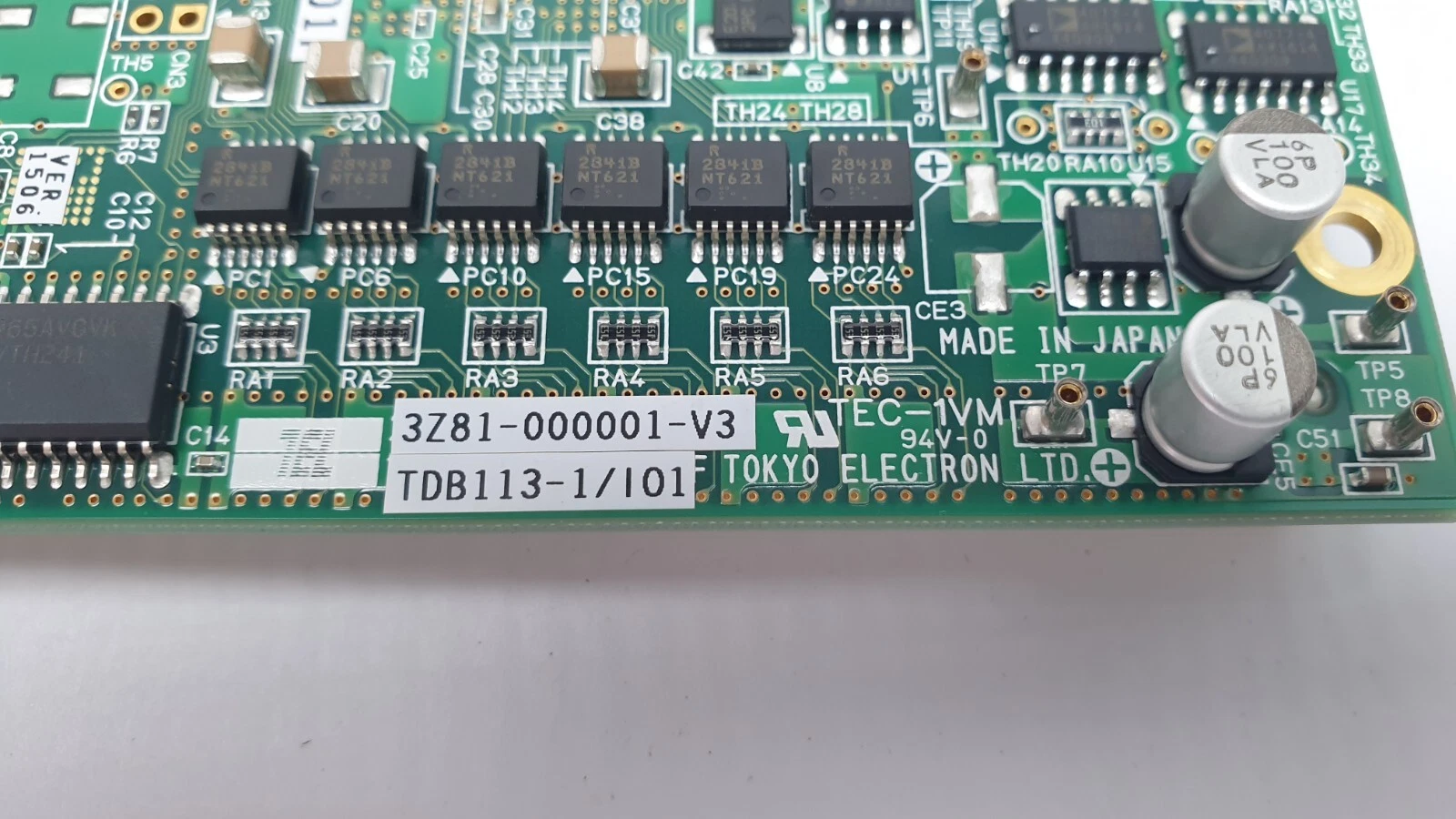

Two printed labels on the component side read 3Z81-000001-V3 (the Tokyo Electron part number, V3 revision) and TDB113-1/IO1 (the board designation). The silkscreen also shows TEC-1VM, the 94V-0 flammability rating and the Tokyo Electron Ltd. name. Match both labels, including the -V3 suffix, against the board you are replacing.
What is on the board?

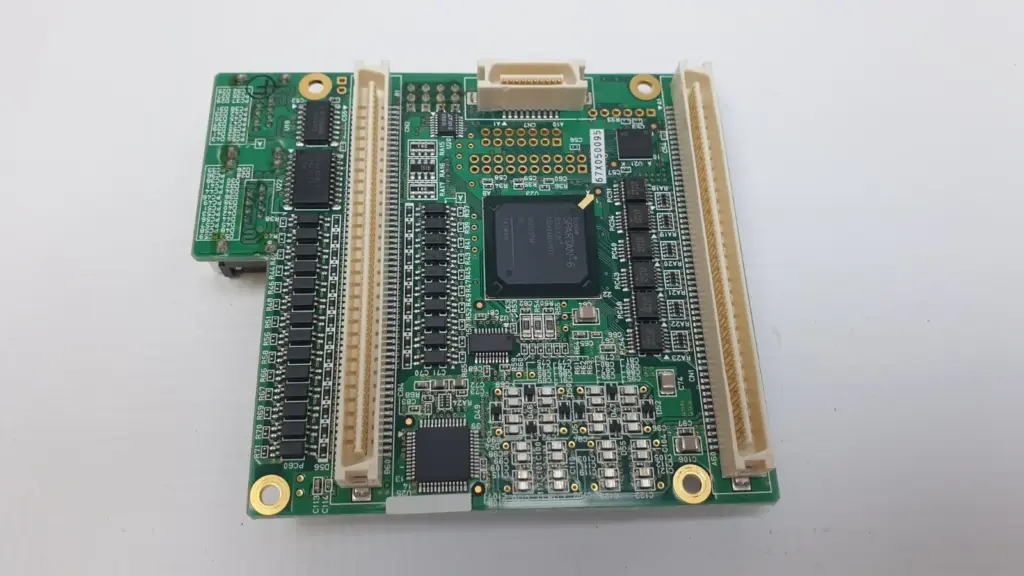

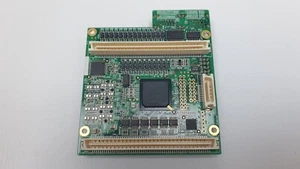

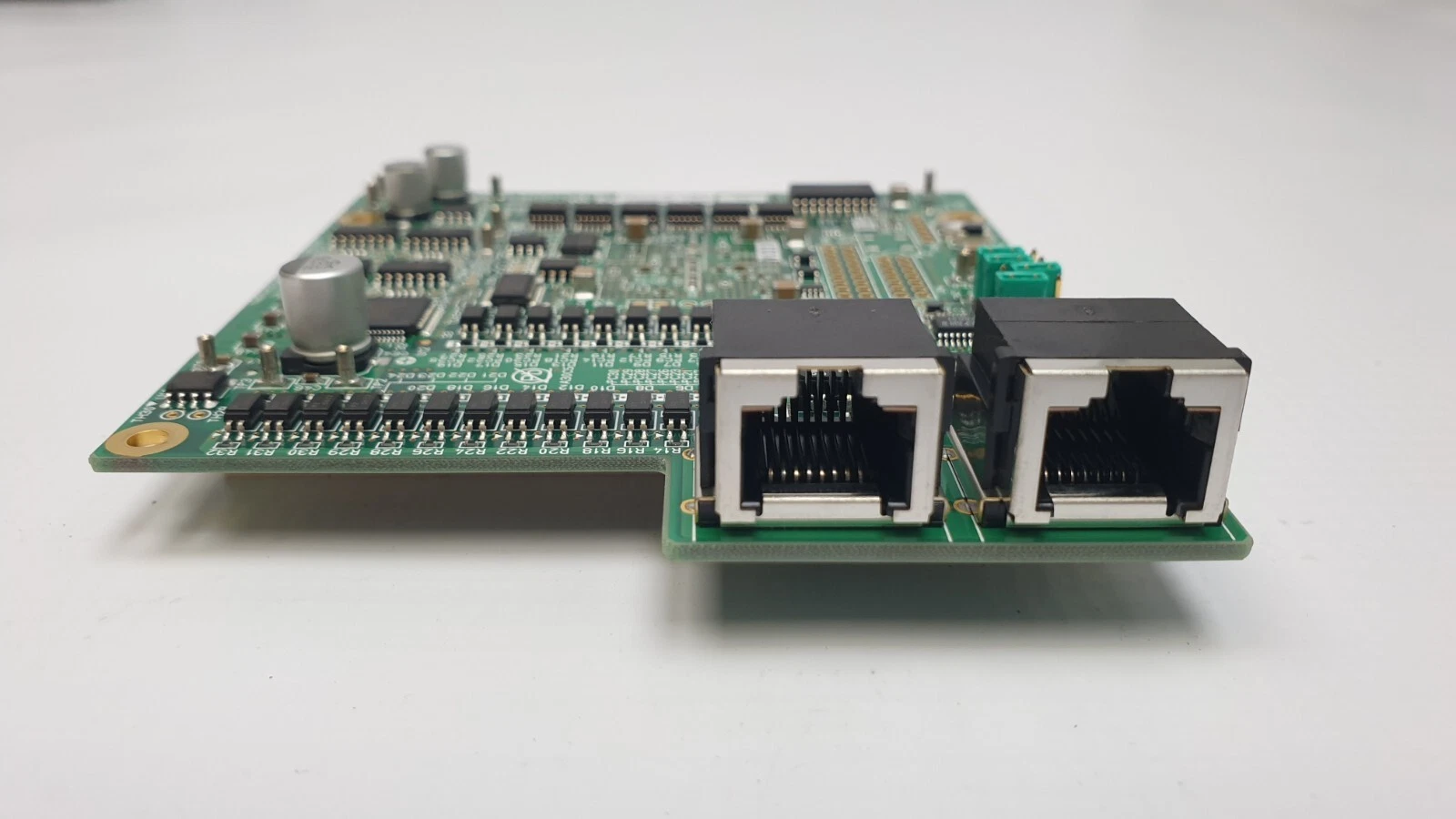

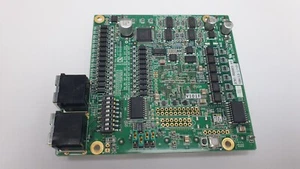

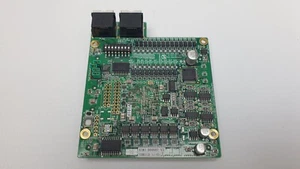

One side carries two RJ-45-style modular jacks on a projecting tab, an 8-position DIP switch (DSW1), a push button, jumper blocks and pin headers. The other side carries the Xilinx Spartan-6 XC6SLX25 FPGA, two long two-row high-density board-to-board connectors, and a smaller multi-pin connector. The board-to-board connectors indicate that it plugs into a mating board in the equipment rather than into a standard backplane.
What condition is this board in?
Used. The photos show both sides of the board with all components in place and no visible physical damage. Version stickers are fitted on the board.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Tokyo Electron 3Z81-000001-V3?
It is a Tokyo Electron circuit board labelled TDB113-1/IO1, carrying a Xilinx Spartan-6 XC6SLX25 FPGA, two RJ-45-style modular jacks and two high-density board-to-board connectors.
What does TDB113-1/IO1 mean on the label?
TDB113-1/IO1 is the board designation printed next to the 3Z81-000001-V3 part number. Both labels are on the component side, as shown in the photos.
Which FPGA does this board use?
A Xilinx Spartan-6 XC6SLX25, mounted on the connector side of the board next to the two board-to-board connectors.
Is 3Z81-000001-V3 the same as the other 3Z81 boards?
No. The 3Z81-000003-V1 (TDB218-1/BTM2) is a different board with its own layout and connectors. Order by the full part number and board designation.
